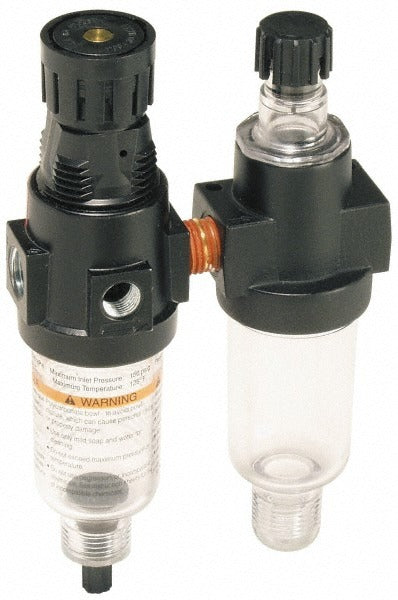

Wilkerson D03-02-0000 Frl Unit 1/4 Npt 20 Scfm 150 Psi

Product Description

The WILKERSON D03-02-0000 is a miniature 2-piece filter/regulator-lubricator (FRL) combination unit designed to condition compressed air in pneumatic systems. It filters particulates down to 5 microns, regulates line pressure, and delivers lubrication to downstream tooling or actuators in a single compact assembly. Rated to 20 SCFM with a maximum supply pressure of 150 psi, this unit fits 1/4 NPT ported systems and handles operating temperatures from 32 degrees F to 175 degrees F. The zinc body and polycarbonate bowl keep the assembly lightweight at 0.41 pounds. A licensed pneumatics technician or industrial maintenance mechanic is the typical installer.

This FRL unit is suited for light industrial and automation applications where space is limited and clean, regulated, lubricated air is required. The miniature body profile makes it a practical choice for compact pneumatic panels, small air-operated equipment, and point-of-use installations on machinery with 1/4 NPT compressed-air connections. The manual drain bowl allows periodic condensate removal without full system shutdown. No pressure gauge is included, but a 1/8 NPT gauge port is provided for field-installed monitoring.

Key Features

• 2-piece filter/regulator-lubricator combination in a single miniature assembly
• 5-micron filtration rating removes particulates from compressed air supply
• 20 SCFM flow capacity with 150 psi maximum supply pressure
• 1/4 NPT end connections for direct inline installation
• Polycarbonate bowl with manual drain for condensate removal
• 1/8 NPT gauge port allows field installation of a pressure gauge
• Zinc body construction keeps unit weight at 0.41 pounds

Compatibility

Designed as an OEM-style replacement or new-installation FRL unit for compressed-air systems with 1/4 NPT ported connections requiring miniature-class filter/regulator-lubricator conditioning.

Installation Notes

Installation should be performed by a qualified pneumatics technician or industrial maintenance mechanic. Depressurize and lock out the compressed-air supply before removing any existing components or installing this unit. Mount the FRL in an upright vertical orientation with the bowl facing down to allow proper condensate collection and manual drainage. Verify all NPT thread connections are sealed with appropriate thread sealant and that downstream pressure settings do not exceed the 150 psi maximum supply rating of this unit.
