Product Description

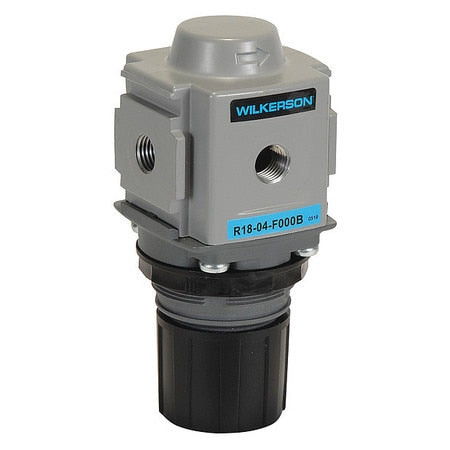

Introducing the Wilkerson R18-04-F000B, an air pressure regulator designed to maintain stable working pressure and optimal air flow in pneumatic systems. This regulator is key for various industrial applications where precise air pressure control is essential.
- Optimized for 1/2 inch NPT air inlets and outlets, facilitating a seamless integration into existing setups.
- High-performance aluminum body ensures durability and corrosion resistance.
- Adjustable pressure from zero to 125 psi, accommodating a wide range of industrial needs.
Product Highlights
The Wilkerson R18-04-F000B features a non-rising adjustment knob for easy pressure setting. Its design includes a relieving valve to ensure excess pressure can be quickly vented, preventing system overload. Performance is maintained even at a maximum flow rate of 180 cubic feet per minute and a maximum temperature of 150 degrees Fahrenheit.
Product Information
Standard Information
-
Brand: Wilkerson
-
MPN: R18-04-F000B
Technical Specifications
-
Maximum Inlet Pressure: 300 psi
-
Maximum Flow Rate: 180 cfm
-
Material: Aluminum
-
Operating Temperature Range: -13 to 150 degrees Fahrenheit
-
Dimensions: 5.18 x 2.36 x 5.4 inches
