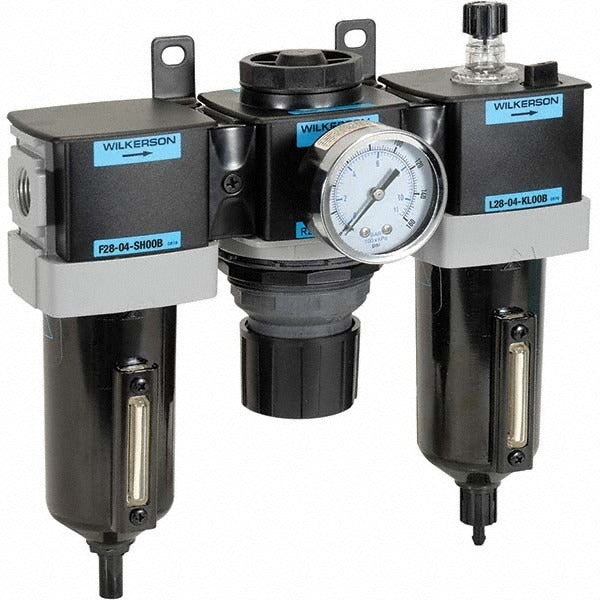

Wilkerson C28-03-FKG0B Frl 90 Scfm 150 Psi 3/8 Npt

Product Description

The WILKERSON C28-03-FKG0B is a 3-piece FRL combination unit that filters, regulates, and lubricates compressed air in a single inline assembly. Rated at 90 SCFM with a 150 psi maximum supply pressure, this Series 28 unit handles the air preparation demands of most industrial pneumatic systems. The 3/8 NPT ported aluminum body connects via standard NPT end connections, and a 5-micron filter element removes particulate before air reaches downstream tools and actuators. A pressure gauge is included. Licensed HVAC and mechanical contractors, pipefitters, and industrial maintenance technicians are the typical installers for units of this type.

This FRL is suited for compressed air service in light to medium industrial environments, machine tool stations, pneumatic control panels, and production line air circuits. The modular connection design allows it to be added to an existing air preparation lineup. The unit ships with mounting brackets included, making it ready for panel or pipe-mount installation. Operating temperature range is -13 degrees F to 125 degrees F, which covers most indoor industrial and shop environments. Bowl guard is included for polycarbonate bowl protection.

Key Features

• 3-piece filter, regulator, and lubricator configuration in one modular assembly
• 90 SCFM flow capacity with 150 psi maximum supply pressure
• 5-micron filtration rating removes particulate from compressed air supply
• Polycarbonate bowl with bowl guard; filter bowl capacity 2.9 oz, lubricator bowl capacity 6.0 oz
• Manual drain on filter bowl for scheduled condensate removal
• Pressure gauge and mounting brackets included; modular connection ready

Compatibility

Designed as an OEM-style replacement or new-installation FRL combination unit for compressed air systems using 3/8 NPT ported components. Compatible with modular Series 28 air preparation assemblies per the supplier specification.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician. Depressurize and lock out the compressed air supply before installing or servicing this unit. Mount the assembly vertically with the bowl pointing downward to ensure proper condensate collection and lubrication delivery. Verify all NPT threaded connections are sealed with appropriate thread sealant and torqued to fitting manufacturer guidelines; do not over-tighten polycarbonate bowl components.
