Wilkerson C18-03-FKG0B Frl Unit 3/8 Npt 150 Psi 68 Scfm

Product Description

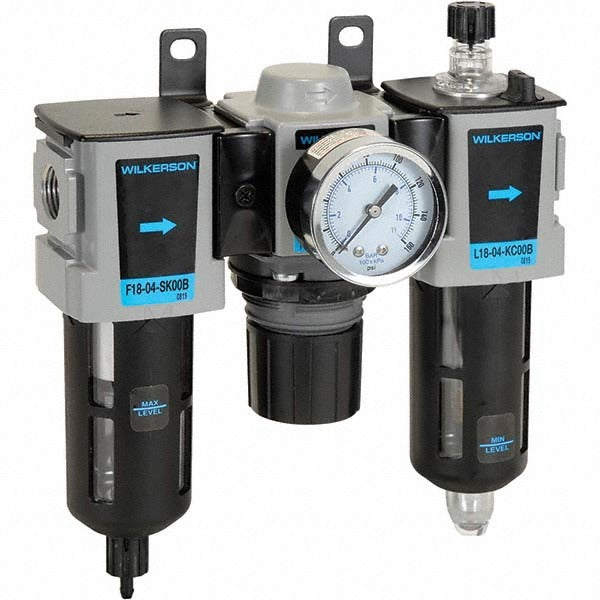

The WILKERSON C18-03-FKG0B is a compact, 3-piece Filter-Regulator-Lubricator (FRL) combination unit designed to condition compressed air in pneumatic systems. It integrates filtration, pressure regulation, and lubrication into a single inline assembly, reducing installation footprint and plumbing connections. Rated for a maximum supply pressure of 150 psi and a flow capacity of 68 SCFM, it suits a wide range of industrial and commercial pneumatic applications. The unit ships with a pressure gauge and mounting brackets included. Port size is 3/8 NPT, and the filter element provides 5-micron particulate filtration to protect downstream tooling and components.

This FRL unit is suited for compressed air systems in manufacturing, assembly, machine tool, and general industrial environments where air quality and consistent regulated pressure are critical. The compact body style makes it a practical choice for installations with limited panel or plumbing space. The modular connection design supports inline expansion if additional conditioning stages are needed. Manual drain operation on the filter bowl allows the technician to purge collected condensate during routine maintenance without removing the unit from service.

Key Features

• 3-piece FRL configuration: filter, regulator, and lubricator in one compact assembly
• 3/8 NPT end connections with modular interface for expandability
• 5-micron filter rating protects downstream pneumatic components
• 150 psi maximum supply pressure, 68 SCFM flow capacity
• Polycarbonate filter and lubricator bowls with bowl guards included
• Pressure gauge and mounting brackets included; manual drain on filter bowl

Compatibility

Designed as an OEM-style replacement or new-installation FRL unit for compressed air systems using 3/8 NPT porting in the Series 18 modular product family.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or millwright. Depressurize and lock out the compressed air supply before installing or servicing the unit. Mount with airflow direction matching the arrow cast on the body, and ensure all NPT threads are sealed with appropriate thread sealant compatible with compressed air service. Do not exceed the rated maximum supply pressure of 150 psi or operate outside the rated temperature range.
