Wilkerson C18-02-FKG0B Frl 42 Scfm 150 Psi 1/4 Npt

Product Description

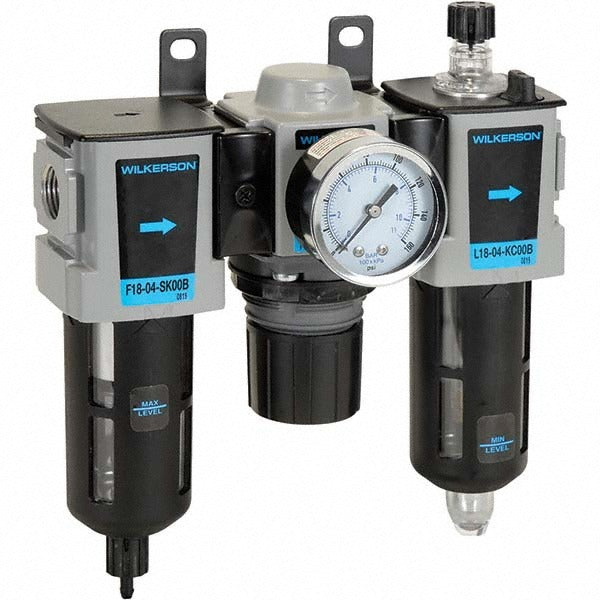

The WILKERSON C18-02-FKG0B is a compact, 3-piece filter-regulator-lubricator (FRL) combination unit designed for compressed air preparation in pneumatic systems. It handles up to 42 SCFM with a maximum supply pressure of 150 psi, making it suitable for light industrial and trade applications where clean, regulated, and lubricated air is required at the point of use. The unit features a 1/4 NPT port and an integrated pressure gauge for inline monitoring. A 5-micron filter element removes particulates before air reaches downstream tools or actuators. Installation is typically handled by HVAC technicians, pipefitters, or industrial maintenance professionals working on pneumatic control systems.

The C18-02-FKG0B is built for use in compressed air supply lines serving pneumatic tools, control valves, actuators, and automation equipment. Its compact body design suits installations where space is limited. The modular connection allows it to integrate with other Series 18 components. With a polycarbonate bowl and bowl guard, the filter bowl condition is visible at a glance. The unit operates across a temperature range of -13 degrees F to 125 degrees F, covering most indoor and sheltered-outdoor pneumatic applications.

Key Features

• 42 SCFM maximum flow rate supports a wide range of pneumatic tool and actuator loads
• 150 psi maximum supply pressure with integrated pressure gauge for inline monitoring
• 5-micron filter rating removes fine particulates from compressed air supply
• Manual drain on filter bowl for scheduled condensate removal
• Polycarbonate bowl with bowl guard for visual inspection and impact resistance
• Modular connection allows combination with other Series 18 units
• Brackets included for panel or pipe mounting

Compatibility

Designed as an OEM-style compressed air preparation unit for pneumatic systems requiring filtration, pressure regulation, and lubrication at a single inline station with 1/4 NPT porting.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air systems. Depressurize and lock out the air supply line before installing or servicing this unit. Mount the FRL in an upright position with airflow direction matching the arrow marked on the body. Confirm all NPT connections are sealed with appropriate thread sealant and that downstream pressure settings are verified before returning the system to service.
