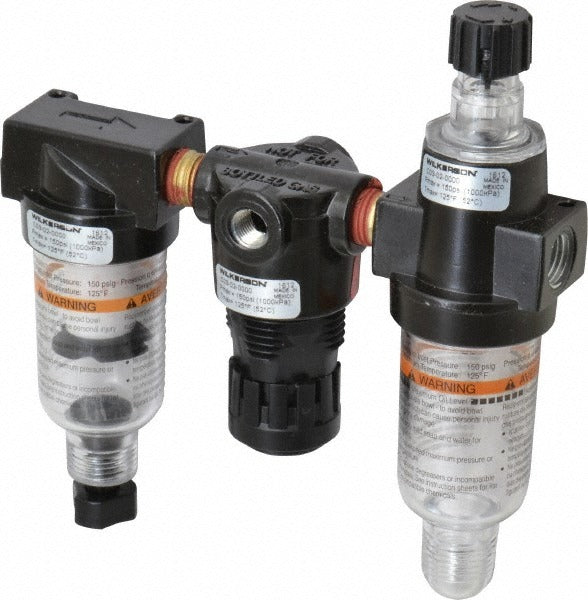

Wilkerson C03-02-0000 Miniature Frl Unit 1/4 Npt 20 Scfm

Product Description

The WILKERSON C03-02-0000 is a miniature 3-piece Filter-Regulator-Lubricator (FRL) combination unit designed for compressed air line preparation in pneumatic systems. It integrates filtration, pressure regulation, and lubrication into a single compact assembly, saving panel space while conditioning air supply to downstream tools and actuators. The unit handles up to 150 psi supply pressure and flows up to 20 SCFM through a 1/4 NPT port. A 5-micron filter element removes particulates and moisture, and the manual drain allows scheduled condensate removal. The zinc body and polycarbonate bowl keep the unit lightweight at 0.41 pounds. Installed by pipefitters, pneumatic system technicians, and maintenance mechanics in industrial and commercial settings.

The C03-02-0000 fits inline on compressed air distribution systems where space is limited and a full-size FRL is not practical. Typical applications include small pneumatic actuators, air tools, solenoid valve manifolds, and control panel air supplies operating in the 32 degrees F to 175 degrees F ambient temperature range. The 1/8 NPT gauge port accommodates an optional pressure gauge if monitoring is required at the installation point. Its miniature body profile suits tight equipment enclosures and compact machine frames.

Key Features

• 3-piece combination unit: filter, regulator, and lubricator in one assembly
• 1/4 NPT end connections for direct inline installation on standard compressed air lines
• 5-micron filtration rating removes fine particulates from the air stream
• 150 psi maximum supply pressure with 20 SCFM flow capacity
• Manual drain for scheduled condensate removal from the polycarbonate bowl
• 1/8 NPT gauge port for optional downstream pressure monitoring
• Zinc body construction at 0.41 pounds for lightweight, compact installation

Compatibility

Designed as an OEM-style inline FRL unit for compressed air systems using 1/4 NPT connections; part of the WILKERSON C03 Series miniature combination line.

Installation Notes

Installation is performed by qualified pneumatic system technicians or maintenance mechanics. Depressurize and lock out the compressed air supply before installing or servicing this unit. Flow direction must match the arrow marked on the body. Verify that operating pressure and temperature at the install point remain within the rated limits before returning the system to service.
