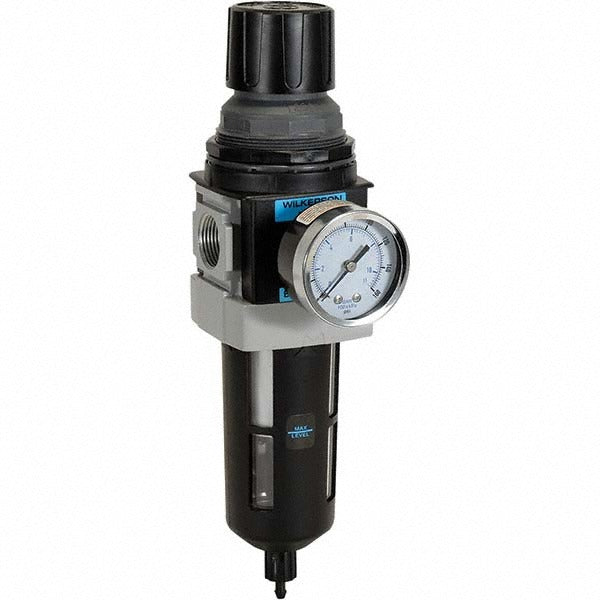

Wilkerson B28-03-FKG0B Filter Regulator 3/8 Npt 200 Scfm

Product Description

The WILKERSON B28-03-FKG0B is a single-piece filter/regulator combination unit designed for compressed air systems in industrial and trade applications. It filters particulates down to 5 microns while regulating supply pressure up to 150 psi, delivering a rated flow of 200 SCFM through a 3/8 NPT port. The aluminum body is paired with a polycarbonate bowl and a bowl guard for visibility and protection. A manual drain handles collected condensate, and an included pressure gauge gives technicians an immediate readout of regulated output pressure. Licensed HVAC, pneumatic, and industrial maintenance technicians are the primary installers of this unit.

This filter/regulator is suited for compressed air distribution lines in light industrial, commercial HVAC, and pneumatic tool or control systems. The 3/8 NPT end connections fit standard compressed air piping found in shop, plant, and mechanical room environments. The modular connection design allows it to be integrated into FRL combination assemblies for expanded air preparation. The Series 28 platform supports a 2.9 oz. filter bowl capacity, accommodating moderate volumes of collected liquid before a manual drain cycle is needed.

Key Features

• Single-piece filter/regulator configuration simplifies installation and reduces connection points
• 5-micron filtration rating removes fine particulates from compressed air supply
• 200 SCFM rated flow with a 150 psi maximum supply pressure
• Aluminum body with polycarbonate bowl and integrated bowl guard
• Pressure gauge included with 1/4 NPT gauge port for direct output monitoring
• Modular connection supports integration into multi-stage FRL assemblies
• Manual drain for controlled removal of collected condensate

Compatibility

Designed as an OEM-style replacement or new-installation filter/regulator for compressed air systems using 3/8 NPT connections and requiring up to 150 psi supply pressure regulation.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air systems. Depressurize and lock out the air supply line before installing or servicing this unit. Mount the unit vertically with the bowl facing downward to ensure proper condensate collection and drainage. Follow applicable facility safety codes and compressed air system guidelines when sizing and positioning air preparation equipment.
