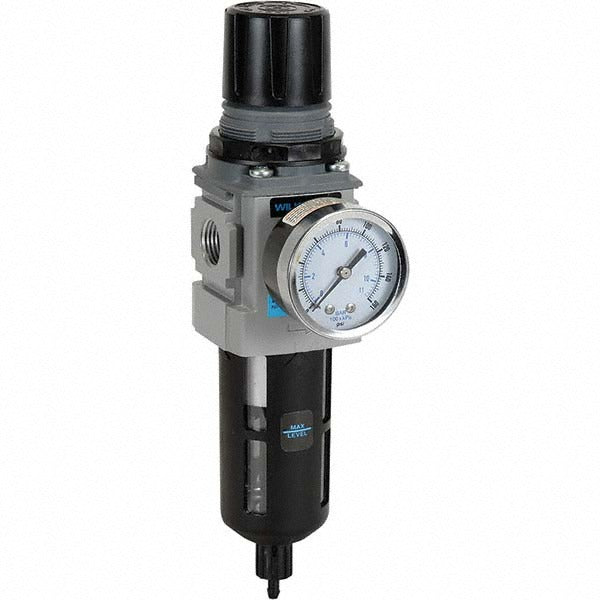

Wilkerson B18-02-FKG0B Frl Filter Regulator 1/4 Npt

Product Description

The WILKERSON B18-02-FKG0B is a compact, one-piece filter/regulator combination unit designed for compressed air systems. It filters particulates down to 5 microns while regulating downstream pressure, delivering up to 148 SCFM at a maximum supply pressure of 150 psi. The unit includes an integrated pressure gauge and features a polycarbonate bowl with a bowl guard for visual fluid level monitoring. An aluminum body keeps the unit lightweight at 1.17 pounds. This FRL unit is installed by pneumatic system technicians and maintenance professionals in industrial and commercial compressed air lines where clean, regulated air is required at the point of use.

This filter/regulator is suited for compressed air applications requiring compact footprint at the point of control. The 1/4 NPT end connections allow straightforward inline installation in standard pipe or tubing systems. A manual drain handles condensate removal from the 1.7 oz bowl. The modular connection design allows integration into multi-unit FRL assemblies. Operating temperature range runs from -13 degrees F to 125 degrees F, making it appropriate for most indoor industrial and light commercial environments.

Key Features

• One-piece filter/regulator configuration simplifies installation and reduces connection points
• 5-micron filtration rating removes particulates from compressed air supply
• 148 SCFM flow capacity supports high-demand pneumatic tools and equipment
• 150 psi maximum supply pressure with integrated pressure gauge for real-time monitoring
• Polycarbonate bowl with bowl guard allows visual condensate inspection
• Modular connection design supports inline expansion with additional FRL components
• Manual drain for controlled condensate removal from the 1.7 oz bowl

Compatibility

Designed as an OEM-style replacement and direct-fit unit for compressed air filter/regulator applications requiring a compact 1/4 NPT inline FRL combination unit in the WILKERSON Series 18 product family.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Depressurize and isolate the compressed air line completely before installing or servicing this unit. Ensure flow direction matches the arrow or inlet/outlet markings on the body. Follow applicable OSHA and local compressed air safety codes when working on pressurized systems.
