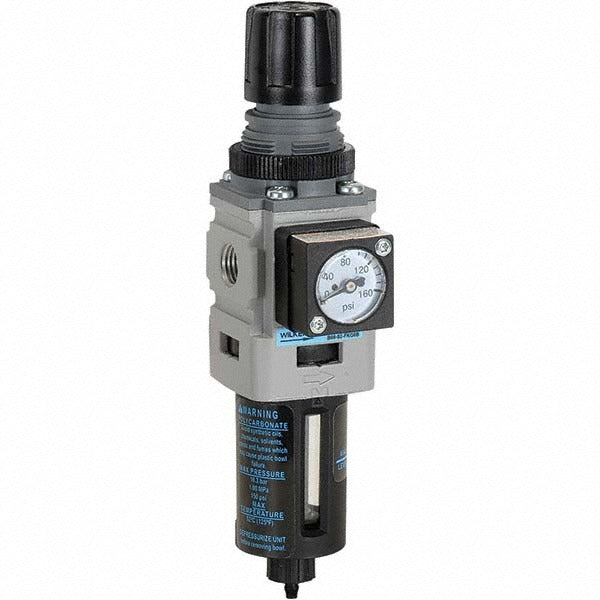

Wilkerson B08-02-FKG0B Filter Regulator 1/4 Npt Miniature

Product Description

The WILKERSON B08-02-FKG0B is a miniature single-piece filter/regulator combination unit designed for compressed air systems requiring clean, pressure-regulated supply. Built around a 1/4 inch NPT port, this unit filters particulates down to 5 microns while regulating downstream pressure in one compact inline assembly. The aluminum body and polycarbonate bowl keep weight low at 0.42 pounds, and the included pressure gauge gives technicians an immediate visual on regulated output. A manual drain handles condensate removal. Rated to 150 psi maximum supply pressure and capable of 148 SCFM flow, it suits applications where space is limited but performance requirements remain serious.

This filter/regulator is suited for light industrial, pneumatic tool, and automation panel applications where a miniature form factor is required. The 1/4 inch NPT end connections make it compatible with standard compressed air distribution plumbing. The modular connection feature allows integration into multi-unit FRL assemblies. With a temperature operating range of -13 degrees F to 125 degrees F, it covers most indoor shop and panel environments. Technicians assembling pneumatic control panels, maintenance professionals servicing production lines, and HVAC controls installers working with pneumatic actuators are the typical end users.

Key Features

• Single-piece filter/regulator design with integrated pressure gauge reduces inline component count
• 5-micron filtration removes particulates that cause premature valve and actuator wear
• 150 psi maximum supply pressure rating with 148 SCFM flow capacity
• Polycarbonate bowl with bowl guard provides visual water level monitoring with impact protection
• Manual drain for scheduled condensate removal without disassembly
• Modular connection support allows expansion into full FRL assemblies

Compatibility

Designed as an OEM-style miniature filter/regulator for compressed air systems using 1/4 inch NPT connections in the WILKERSON Series 08 product family.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or pipefitter. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Mount the unit vertically with the bowl pointing downward to ensure proper condensate collection and manual drain function. Follow applicable OSHA compressed air safety standards and local plumbing codes when integrating into a pressurized air distribution system.
