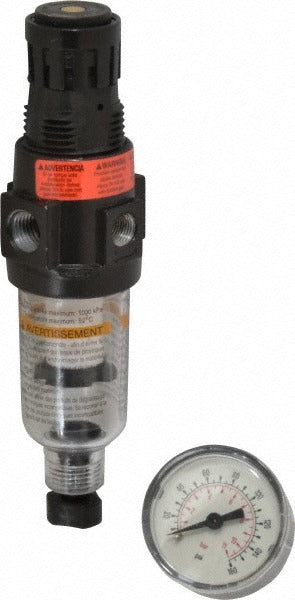

Wilkerson B03-02-G000 Filter Regulator 1/4 Npt 18 Scfm

Product Description

The WILKERSON B03-02-G000 is a miniature single-piece filter/regulator combination unit designed for compressed air systems requiring clean, regulated pressure at the point of use. Built around a 1/4 NPT port, this FRL component filters particulates down to 5 microns while simultaneously regulating supply pressure up to 150 psi. The zinc body and polycarbonate bowl keep the unit lightweight at 1 pound, and the included pressure gauge gives technicians an immediate visual reference of outlet pressure without adding a separate fitting. Pneumatic maintenance technicians and industrial service pros install this unit inline on air lines serving tools, actuators, valves, and other pneumatic equipment.

This filter/regulator suits miniature pneumatic systems in light industrial, commercial, and production environments where space is limited and clean dry air is critical. With an 18 SCFM flow capacity, it handles moderate compressed air demand typical of small pneumatic actuators, solenoid valves, and precision air tools. The manual drain requires periodic attention to discharge collected moisture and contaminants from the polycarbonate bowl, making it appropriate for accessible installation points where routine maintenance is feasible. Operating temperature range is 32 degrees F to 125 degrees F, keeping it suited for standard indoor compressed air applications.

Key Features

• Single-piece filter and regulator design simplifies installation and reduces connection points
• 5-micron filtration rating removes particulates that damage downstream pneumatic components
• 150 psi maximum supply pressure with built-in regulation
• 18 SCFM flow rate supports moderate pneumatic demand
• Integrated pressure gauge port (1/8 NPT) with gauge included for immediate pressure monitoring
• Manual drain polycarbonate bowl allows visual inspection of collected condensate

Compatibility

Designed as an OEM-style drop-in or new-installation filter/regulator for miniature pneumatic systems with 1/4 NPT inlet and outlet connections operating within the rated pressure and temperature range.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician following applicable compressed air system codes and equipment manufacturer guidelines. Depressurize and lock out the compressed air supply completely before removing or installing any FRL component. Mount the unit in a vertical orientation with the bowl pointing downward to ensure proper condensate collection and drainage. Drain the bowl regularly to prevent liquid carryover into downstream pneumatic equipment.
