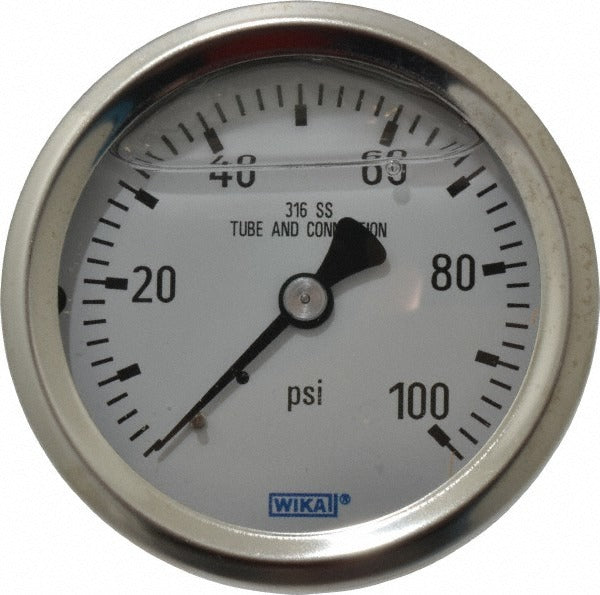

Wika 9833247 Pressure Gauge 0-100 Psi 2.5in Dial Npt

Product Description

The WIKA 9833247 is an analog industrial pressure gauge designed for monitoring gaseous and liquid system pressures up to 100 psi. It features a 2.5-inch dial face with a single scale and delivers 1.5% of scale accuracy across the full measurement range. The stainless steel case and stainless steel wetted parts make it well suited for demanding or corrosive service environments. The gauge is liquid filled, which dampens pointer vibration and extends service life in high-cycle applications. Licensed HVAC technicians, plumbers, and industrial service technicians install this type of gauge on process lines, test manifolds, and mechanical equipment panels.

This gauge is appropriate for residential and commercial applications where a compact, back-mount analog gauge is required on water, refrigeration, compressed air, or other compatible gaseous and liquid systems. The center back mount configuration allows flush panel or pipe-tee installation with a standard 1/4-inch NPT male connection. Its stainless construction makes it a common choice for installations where moisture, mild corrosives, or wash-down conditions are present.

Key Features

• 0 to 100 psi single-scale analog pressure range
• 1.5% of scale accuracy for reliable field readings
• Liquid-filled design dampens vibration and pulsation
• 304 stainless steel case and stainless steel wetted parts resist corrosion
• Polycarbonate lens protects dial in industrial environments
• Center back mount with 1/4-inch NPT thread for straightforward panel or inline installation

Compatibility

Designed for use with gaseous and liquid media compatible with stainless steel wetted parts. Suitable as a general-purpose industrial pressure gauge wherever a 1/4-inch NPT center back mount analog gauge is specified.

Installation Notes

Installation should be performed by a qualified technician following applicable codes such as IPC or IFGC depending on the service medium. Isolate and depressurize the system completely before removing or installing any pressure gauge. Apply thread sealant appropriate for the service medium to the NPT threads and tighten to fitting manufacturer specifications using a wrench on the gauge hex, not the case body. Verify the system is leak-free at operating pressure before returning to service.
