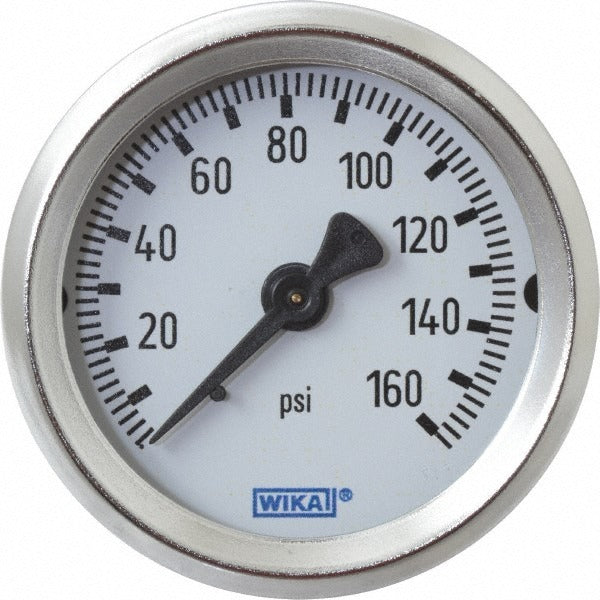

Wika 9795990 Pressure Gauge 2 in Dial U-clamp Panel Mount

Product Description

The WIKA 9795990 is a 2-inch dial analog pressure gauge designed for panel mounting via a U-clamp center back connection. It features a 1/4-inch threaded back connection and measures pressure from 0 to 160 psi. The steel case provides durable protection in shop, mechanical, and light industrial environments, while brass wetted parts offer compatibility with a wide range of non-corrosive media. Accuracy is rated at 3-2-3 percent of scale, meaning the outer thirds of the dial carry 3 percent accuracy and the middle third carries 2 percent. This gauge is installed by HVAC technicians, plumbers, and industrial maintenance mechanics on panel-mounted applications where a compact, readable dial is required.

This gauge is suited for residential and light commercial mechanical systems, equipment panels, and process monitoring applications where a small-footprint, center-back-mount gauge is needed. The U-clamp panel mount design allows secure flush or panel installation without additional brackets. The no-fill dry dial design keeps the unit lightweight and easy to read in stable, low-vibration environments.

Key Features

• 2-inch analog dial for compact panel installations
• 0 to 160 psi pressure range
• 3-2-3 percent of scale accuracy
• U-clamp panel center back mount for secure, tool-free panel attachment
• Steel case construction for durability
• Brass wetted parts compatible with common non-corrosive media
• Dry no-fill dial suited for stable, low-vibration service

Compatibility

Designed as an OEM-style replacement or new-installation pressure gauge for panel-mounted applications requiring a 2-inch dial with 1/4-inch center back connection and U-clamp mounting.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or instrumentation mechanics. Isolate and depressurize the system completely before removing any existing gauge or making new connections. Apply appropriate thread sealant to the 1/4-inch male connection per the system media requirements and applicable plumbing or mechanical codes. Do not overtighten the threaded connection, as brass fittings are susceptible to damage from excess torque.
