Wika 9768645 Pressure Gauge 0-1000 Psi 2.5in Dial Npt

Product Description

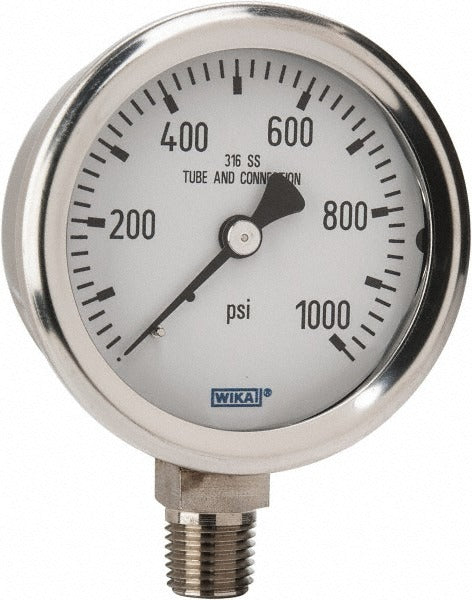

The WIKA 9768645 is an analog industrial pressure gauge designed for monitoring gaseous and liquid media in process, mechanical, and HVAC applications. It features a 2.5-inch dial with a single-scale readout spanning 0 to 1,000 psi, a 1/4-inch NPT lower-mount connection, and fully stainless steel wetted parts for compatibility with a wide range of media. The 304 stainless steel case and polycarbonate lens provide durable protection in industrial environments. Accuracy is rated at 1.5 percent of full scale. This gauge is installed by licensed HVAC technicians, plumbers, pipefitters, and industrial maintenance personnel wherever reliable local pressure indication is required.

The 9768645 is suited for use in residential and commercial HVAC systems, plumbing and piping networks, hydraulic and pneumatic lines, and general industrial process equipment where pressures reach up to 1,000 psi. The lower-mount NPT connection allows direct installation into threaded pipe taps, manifolds, and pressure ports in a standard panel or pipe arrangement. The non-liquid-filled design keeps the unit lightweight and straightforward to service or replace in the field.

Key Features

• 0 to 1,000 psi single-scale analog readout on a 2.5-inch dial
• Stainless steel wetted parts for broad media compatibility with gases and liquids
• 304 stainless steel case for corrosion resistance in industrial environments
• 1/4-inch NPT lower-mount connection for standard threaded pipe installations
• 1.5 percent of full-scale accuracy for reliable pressure indication
• Polycarbonate lens provides impact resistance and clear dial visibility

Compatibility

Designed as an OEM-style replacement or new-installation pressure gauge for industrial piping, HVAC, and process systems using 1/4-inch NPT lower-mount pressure ports with operating pressures within the 0 to 1,000 psi range and compatible with gaseous or liquid media.
