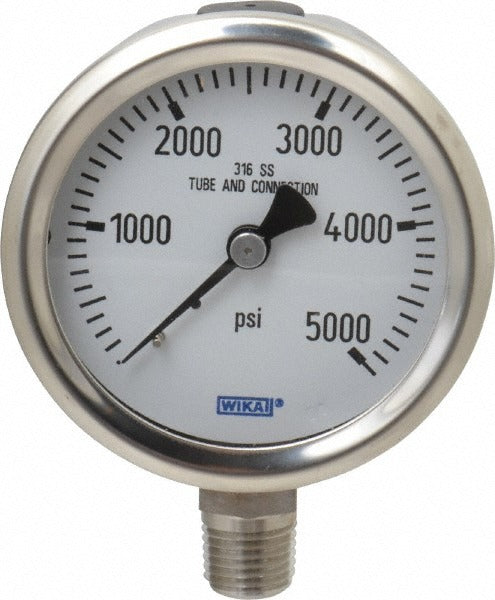

Wika 9768602 Pressure Gauge 0-5000 Psi 2.5 in Dial

Product Description

The WIKA 9768602 is an analog industrial pressure gauge designed for measuring gas and liquid pressure in demanding service environments. It features a 2.5-inch dial with a single scale reading from 0 to 5000 psi, a lower-mount 1/4-inch NPT connection, and an accuracy rating of 1.5 percent of full scale. The stainless steel case and fully stainless steel wetted parts make this gauge a solid choice for applications where corrosion resistance is a priority. HVAC technicians, plumbers, and industrial service professionals install this type of gauge on high-pressure systems to monitor operating conditions at a glance.

This gauge is suited for residential and commercial installations where reliable pressure indication is needed on gas or liquid service lines. The lower-mount configuration positions the connection at the 6 o'clock position on the gauge body, which is common in panel-mount and pipe-tee installations. The dry, non-liquid-filled design keeps weight low and simplifies mounting in standard instrumentation fittings. Its stainless steel construction makes it appropriate for mildly corrosive media and outdoor-exposed mounting locations.

Key Features

• Pressure range of 0 to 5000 psi on a single analog scale
• 2.5-inch dial diameter for clear field readability
• 1/4-inch NPT lower-mount connection for standard pipe fittings
• Stainless steel case and stainless steel wetted parts for corrosion resistance
• 1.5 percent of scale accuracy for reliable pressure indication
• Polycarbonate lens with dry, non-liquid-filled construction

Compatibility

Designed as an OEM-style replacement or direct-install industrial pressure gauge for gas and liquid service lines requiring a 1/4-inch NPT lower-mount connection and a 0 to 5000 psi range.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified instrumentation technician. Depressurize and isolate the system completely before removing or installing any pressure gauge. Use appropriate thread sealant compatible with the media being measured, and do not over-tighten the NPT fitting. Verify that the pressure range of the gauge is appropriate for the system's maximum operating pressure before placing the system back in service.
