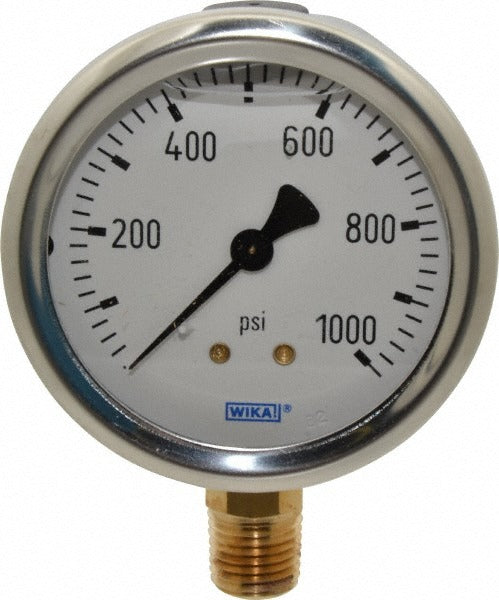

Wika 9767126 Pressure Gauge 0-1000 Psi 2.5in Dial Npt Lower

Product Description

The WIKA 9767126 is a liquid-filled industrial pressure gauge designed for reliable pressure measurement in both gaseous and liquid service applications. It features a 2.5-inch analog dial with a single scale reading from 0 to 1,000 psi, a lower-mount 1/4-inch NPT threaded connection, and a 304 stainless steel case. Liquid fill dampens needle vibration and protects internal components in high-pulsation or high-vibration environments. Wetted parts are copper alloy, and the lens is polycarbonate. Accuracy is rated at 1.5 percent of scale. Licensed HVAC technicians, plumbers, and industrial service professionals commonly install this gauge for system monitoring and diagnostic work.

This gauge is suited for residential and light commercial applications where a compact, durable pressure indicator is needed. Its lower-mount configuration makes it appropriate for direct pipe or manifold mounting in tight installations. Compatible with gaseous and liquid media, it fits a wide range of plumbing, HVAC, and fluid-handling systems where a 1/4-inch NPT lower-mount port is available.

Key Features

• 2.5-inch analog dial with single scale, 0 to 1,000 psi range
• Liquid-filled case reduces needle flutter in pulsating or vibrating systems
• 1.5 percent of scale accuracy for dependable readings
• 304 stainless steel case for corrosion resistance
• Copper alloy wetted parts compatible with gaseous and liquid media
• Polycarbonate lens for impact and chemical resistance

Compatibility

Designed for use with gaseous and liquid media; fits any system with a standard 1/4-inch NPT lower-mount port requiring a 2.5-inch dial pressure gauge rated to 1,000 psi.

Installation Notes

Install and service by a qualified plumber or HVAC technician in accordance with applicable local codes. Shut off system pressure and depressurize the line completely before removing or installing the gauge. Use appropriate thread sealant on NPT threads and avoid over-tightening, which can damage the gauge body or fitting. Do not exceed the maximum rated pressure of 1,000 psi.
