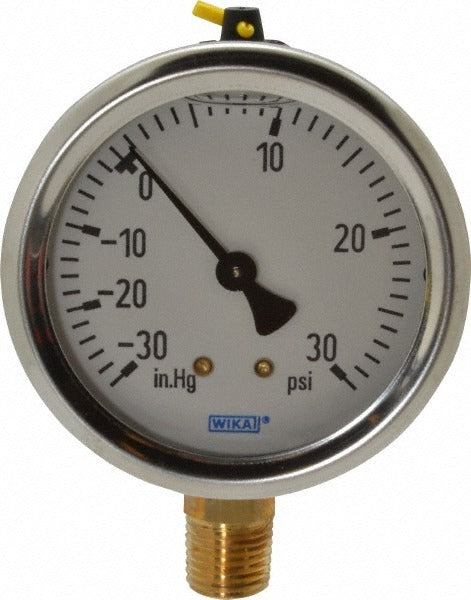

Wika 9767010 Pressure Gauge 0-30 Psi 2.5 in Dial Npt

Product Description

The WIKA 9767010 is a liquid-filled industrial pressure gauge designed to measure pressures from 0 to 30 psi in both gaseous and liquid media. The 2.5-inch analog dial provides clear, readable pressure indication, while the liquid fill dampens needle vibration and reduces wear on internal components in high-vibration or pulsating-pressure environments. The stainless steel case offers durable protection in wet or corrosive service conditions. Accuracy is rated at 1.5 percent of full scale. Wetted parts are copper alloy. This gauge is installed by plumbers, HVAC technicians, and industrial maintenance personnel on a wide range of fluid and gas systems.

The WIKA 9767010 is suited for residential, commercial, and light industrial applications where a compact, lower-mount pressure gauge is required. The 1/4-inch NPT lower-mount connection fits standard gauge ports on pumps, manifolds, pressure vessels, and pipe tees. The liquid-filled design makes it a practical choice for systems prone to vibration or pressure spikes that would otherwise cause dial flutter or premature instrument failure.

Key Features

• Liquid-filled construction dampens vibration and reduces internal wear for extended service life
• 0 to 30 psi range with analog single-scale display
• 1.5 percent of full-scale accuracy for reliable pressure readings
• 304 stainless steel case resists corrosion in wet or outdoor installations
• Copper alloy wetted parts suitable for gaseous and liquid media
• Polycarbonate lens for impact resistance and clear dial visibility
• 1/4-inch NPT lower-mount connection for standard gauge port fitment

Compatibility

Designed for use with gaseous and liquid media; compatible with standard 1/4-inch NPT lower-mount gauge ports on pumps, manifolds, pressure vessels, and piping systems in industrial and HVAC applications.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified industrial maintenance technician. Shut off system pressure and isolate the gauge port before installation or removal. Use an appropriate thread sealant or PTFE tape on the NPT threads and tighten to hand-tight plus wrench-snug; do not over-torque. Verify the pressure range of the gauge matches the system's expected operating and maximum pressure before commissioning.
