Wika 9311909 Hydraulic Gauge 2-1/2 in Face Diameter (Center Back Mount)

Brand: WIKA
SKU: 9311909
Availability: In Stock

Ships same day if ordered by 12 pm
$65.26
$65.26
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

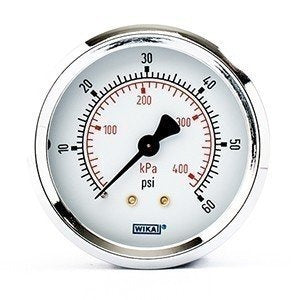

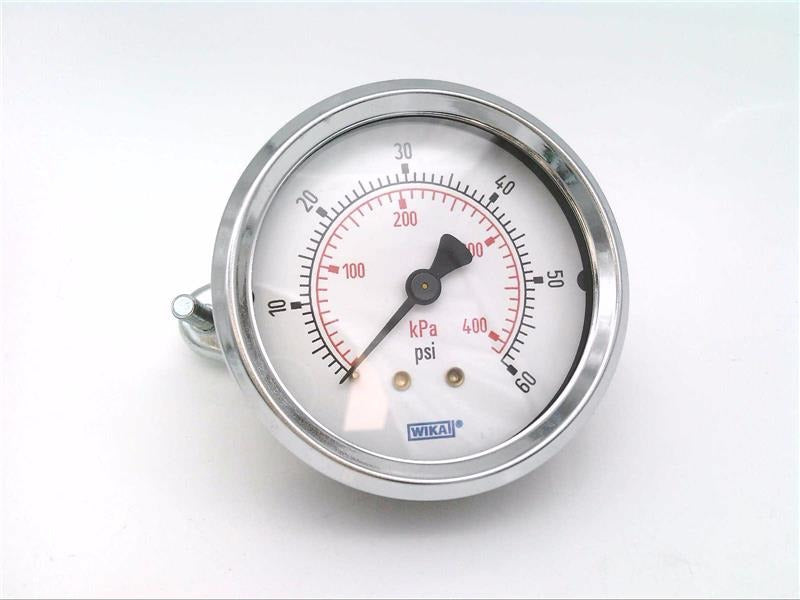

Wika 9311909 is a hydraulic bourdon tube pressure gauge calibrated to a 0-60 psi range with a 2-1/2 inch (63 mm) dial. The instrument uses a 1/4 NPT male center back connection and a dry plastic case with an acrylic lens and ABS pointer. Operating temperature is rated up to 140 F and overall depth is approximately 48 mm, suitable for general hydraulic and pneumatic system monitoring.

  • 0-60 psi bourdon tube sensing with 2.5 in (63 mm) dial and secondary kPa scale

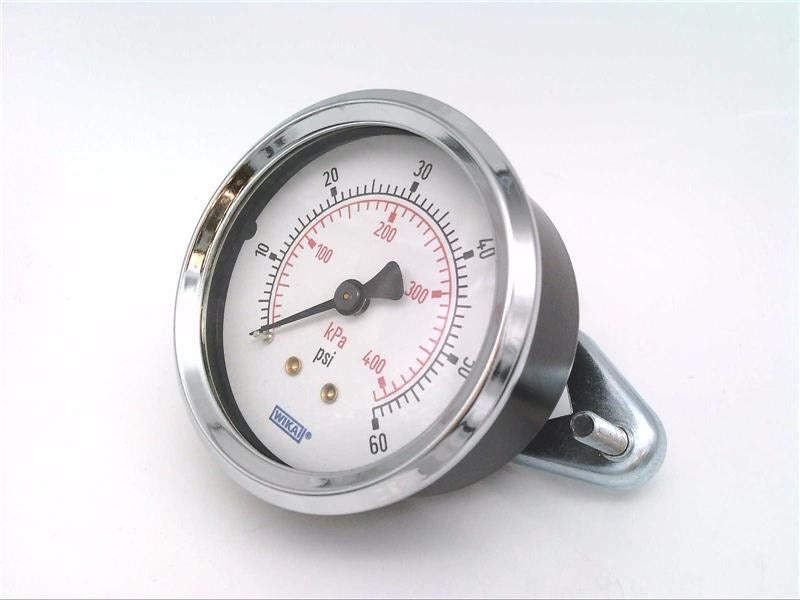

  • 1/4 NPT male process connection, center back mount (CBM); U-clamp panel mount noted in some listings
  • Dry plastic case, acrylic lens, ABS pointer, copper-alloy wetted parts; overall depth ~48 mm
  • Suitable for general hydraulic and pneumatic system monitoring; conforms to EN 837-1 / ASME B40.100 (reported)

Product Highlights

2.5 in dial hydraulic pressure gauge, 0-60 psi, 1/4 NPT CBM, dry plastic case

Product Information

Standard Information

  • Brand: WIKA
  • Manufacturer Part Number: 9311909
  • Country of Origin: China
Technical Specifications
Brand
Wika
MPN
9311909
Model/Series
111.12
Product Type
Bourdon tube / hydraulic pressure gauge
Dial Size
2.5 in (63 mm)
Face Diameter
2.5 in
Pressure Range
0-60 psi
Secondary Scale
kPa (secondary scale)
Thread Connection
1/4 NPT (male), center back
Mounting Type
Center back mount (CBM); U-clamp panel mount reported
Case Filling
Dry (no case filling)
Case Material
Plastic (reported ABS option)
Window/Lens Material
Acrylic (snap-in lens)
Dial Material
Plastic (white dial face)
Pointer Material
ABS (black)
Wetted Parts
Copper alloy (socket/brass reported)
Sensing Type
Bourdon tube
Accuracy
3-2-3% of span (ASME B40.100 Grade B) (reported)
Overall Depth
Approximately 48 mm (about 1.89 in)
Operating Temperature (Ambient)
-40 F to 140 F (-40 C to 60 C) (reported)
Media Maximum Temperature
140 F (60 C)
Rated Working Pressure
Steady 3/4 of full scale; fluctuating 2/3 of full scale; short-term = full scale (reported)
Applications
Hydraulic and pneumatic system monitoring (pumps, compressors, water systems, regulators)
Design Standards
EN 837-1 and ASME B40.100 (reported)
