Wieland Electric z7.261.2027.0 Cross Connector 10-pole

Product Description

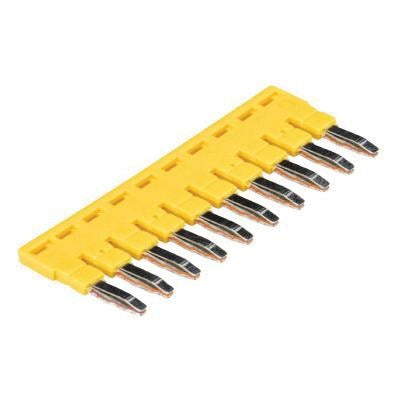

The WIELAND ELECTRIC z7.261.2027.0 is a 10-pole cross connector designed for DIN rail mounting in terminal block wiring systems. This connector bridges multiple terminal blocks to create a common potential across up to 10 poles without the need for individual jumper wires. Finished in yellow for quick visual identification of circuits or potential groups, it is 6 mm wide and seats directly onto standard DIN rail-mounted terminal strips. Electricians and panel builders use this component in control panels, distribution boards, and industrial automation enclosures where organized, reliable bus connections are required.

This cross connector is suited for residential and commercial electrical panel builds as well as industrial control cabinet assemblies. It is most commonly installed by licensed electricians and panel wiring technicians who require an efficient method of interconnecting adjacent terminal blocks on a DIN rail. The yellow color coding supports standard wiring conventions for circuit identification inside enclosures, reducing diagnostic time during troubleshooting or inspection.

Key Features

• 10-pole configuration bridges up to 10 adjacent terminal blocks in a single assembly
• DIN rail mount design integrates directly with standard DIN rail terminal block systems
• Yellow color provides visual circuit identification at a glance
• 6 mm width matches standard 6 mm terminal block pitch for a flush, gap-free fit
• Eliminates individual jumper wire runs between poles, reducing panel wiring time

Compatibility

Designed as an OEM-style cross connector for use with DIN rail-mounted terminal block systems accepting a 6 mm wide, 10-pole bridging connector.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the panel before installing or removing any terminal block accessories. Press the cross connector firmly onto the terminal block contacts to ensure full seating and reliable electrical continuity across all poles. Verify pole count and terminal pitch before installation to confirm proper fit with the existing terminal block series.
