Wieland Electric 58.510.0055.0 Feed-through Terminal Block

Product Description

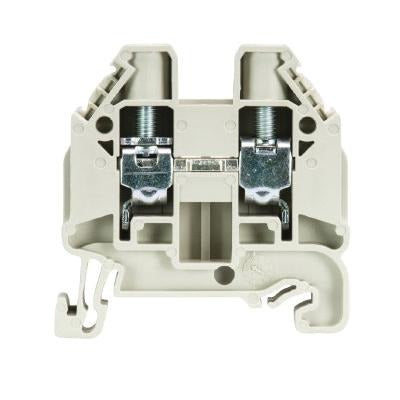

The WIELAND ELECTRIC 58.510.0055.0 is a feed-through terminal block rated for 1000 volts and 57 amps, designed for reliable point-to-point wiring connections in control panels and electrical enclosures. It accepts 2 connections and accommodates wire ranging from 20 AWG to 6 AWG, making it suitable for a wide range of conductor sizes in a single device. The thermoplastic housing provides solid insulation performance, and the gray finish is standard for DIN rail-mounted wiring systems. At 48 mm in length and 10 mm in width, it fits efficiently within dense terminal block assemblies.

This terminal block is used in residential, commercial, and light industrial electrical installations where organized, reliable conductor termination is required. It mounts directly to standard DIN rail, making it a practical choice for control panels, distribution boards, and machine wiring applications. Electricians and panel builders working with multi-conductor assemblies will find it compatible with standard DIN rail layouts used across HVAC control, motor control, and general electrical panel construction.

Key Features

• 1000V rating supports high-voltage panel wiring applications
• 57A continuous current capacity for robust conductor termination
• Accepts 20 AWG to 6 AWG wire for flexible conductor compatibility
• 2-connection feed-through design for straightforward point-to-point wiring
• Thermoplastic housing for durable insulation and structural integrity
• DIN rail mount at 48 mm length and 10 mm width for compact panel layouts

Compatibility

Designed as a DIN rail-mounted feed-through terminal block suitable for standard control panel and electrical enclosure wiring assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and verify the absence of voltage before handling or terminating conductors. Snap the terminal block securely onto a standard DIN rail before making wire connections, and confirm conductor size falls within the 20 AWG to 6 AWG range before termination.
