Wieland Electric 58.504.0055.6 WT 4 Series Feed Through Terminal Block 10AWG, 26 AWG, 1-Level, Screw, ATEX

Product Description

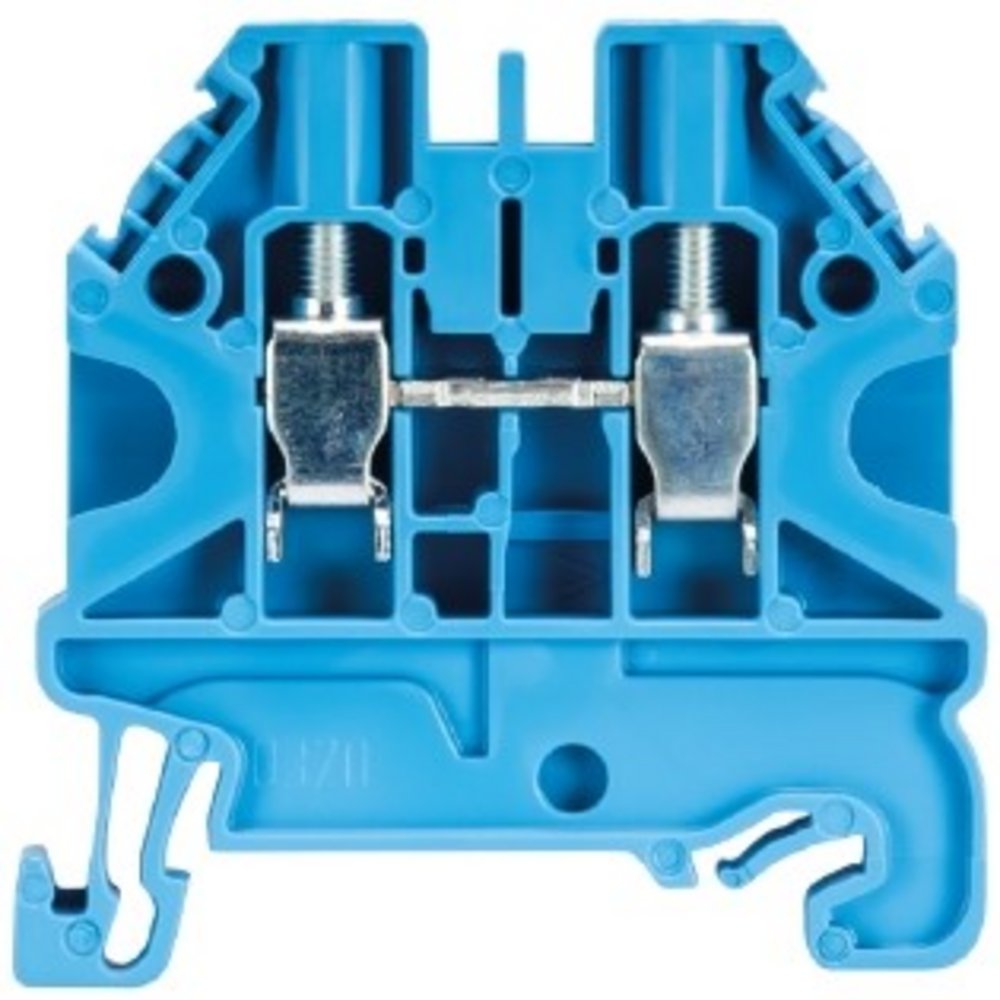

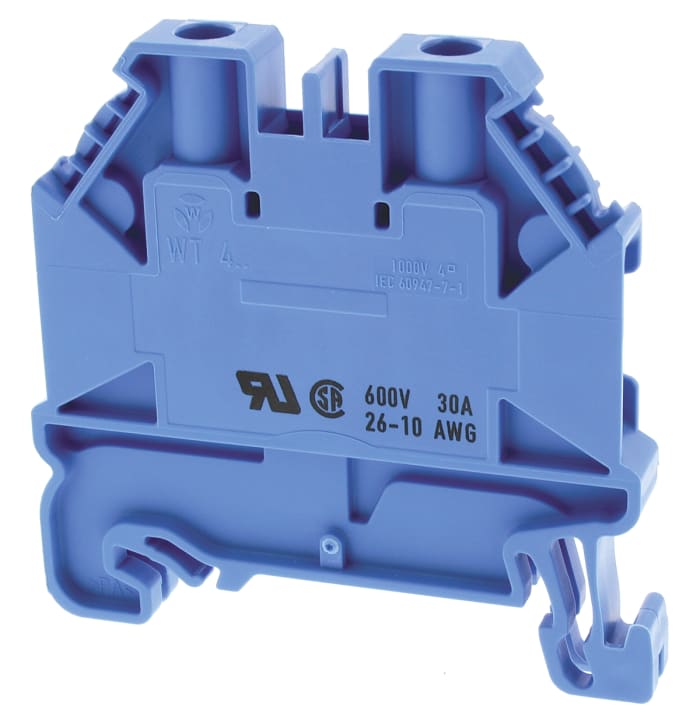

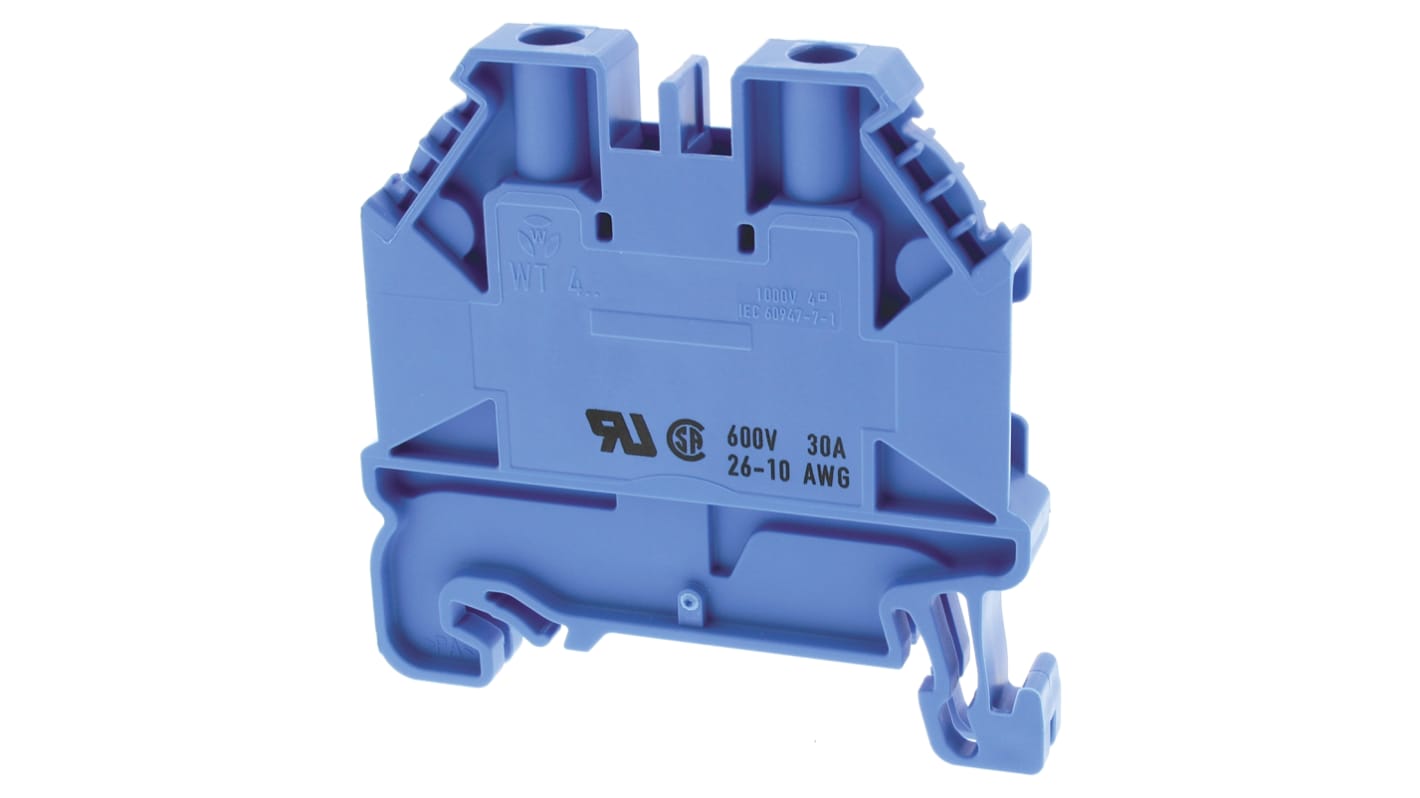

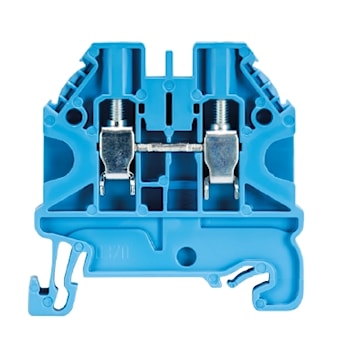

The WIELAND ELECTRIC 58.504.0055.6 is a feed-through terminal block designed for DIN rail mounting. This WT 4 series block features screw connections and is suitable for conductors ranging from 26 to 10 AWG. It has a nominal cross-section of 4mm². It is ATEX certified.

• Feed-through block with screw connection
• Mounting on TS35 DIN Rail
• Nominal cross-section 4mm ²

Product Highlights

The WIELAND ELECTRIC 58.504.0055.6 is a reliable solution for creating secure and organized electrical connections in various applications.

Product Information

Standard Information

• Brand: WIELAND ELECTRIC
• Manufacturer Part Number: 58.504.0055.6
• Country of Origin: DE

Technical Specifications

• Brand: Wieland
• Product Type: Feed Through Terminal Block
• Number of Levels: 1
• Number of Positions: 2
• Voltage: 1kV
• Series: WT 4
• Minimum Wire Size AWG: 26AWG
• Cable CSA: 10, 26AWG
• Maximum Wire Size AWG: 10AWG
• Pitch: 6mm
• Minimum Operating Temperature: 120°C
• Termination Type: Screw
• Terminal Block Current: 32A
• Hazardous Area Certification: ATEX
• Maximum Operating Temperature: 120°C
• Standards/Approvals: CSA, VDE, GL
• Amperage Rating: 32 A
• Height: 48 mm
• Housing Material: Thermoplastic
• Length: 48 mm
• Mounting Type: DIN Rail
• Number of Connections: 2
• Voltage Rating: 1000 V
• Width: 6 mm
• Wire Size: 26 to 10 AWG
• Item Name: Terminal Block
• Type: Feed Through
• Number of Poles: 2
• Conductor Size: 26-10 AWG
• Wire Strip Length: 9 mm
• Torque Rating: 0.5 N-m
• Block Material: Thermoplastic Insulation, PA666 Housing
• Dimensions: 48 mm L x 6 mm W x 48 mm H
• Standards: CSA, SEV-EX Certified, REACH-SVHC Compliant, UL94V-0 Flammability Rating
• Connection Type: Screw
• Material: Thermoplastic
• Terminal Type: Feed-Through
• Current Rating: 32A
• Manufacturer Part Code: 58.504.0055.6
• Nominal Cross Section: 4mm²
• UNSPSC Code: 39121410
• Voltage Supply: 1kV
