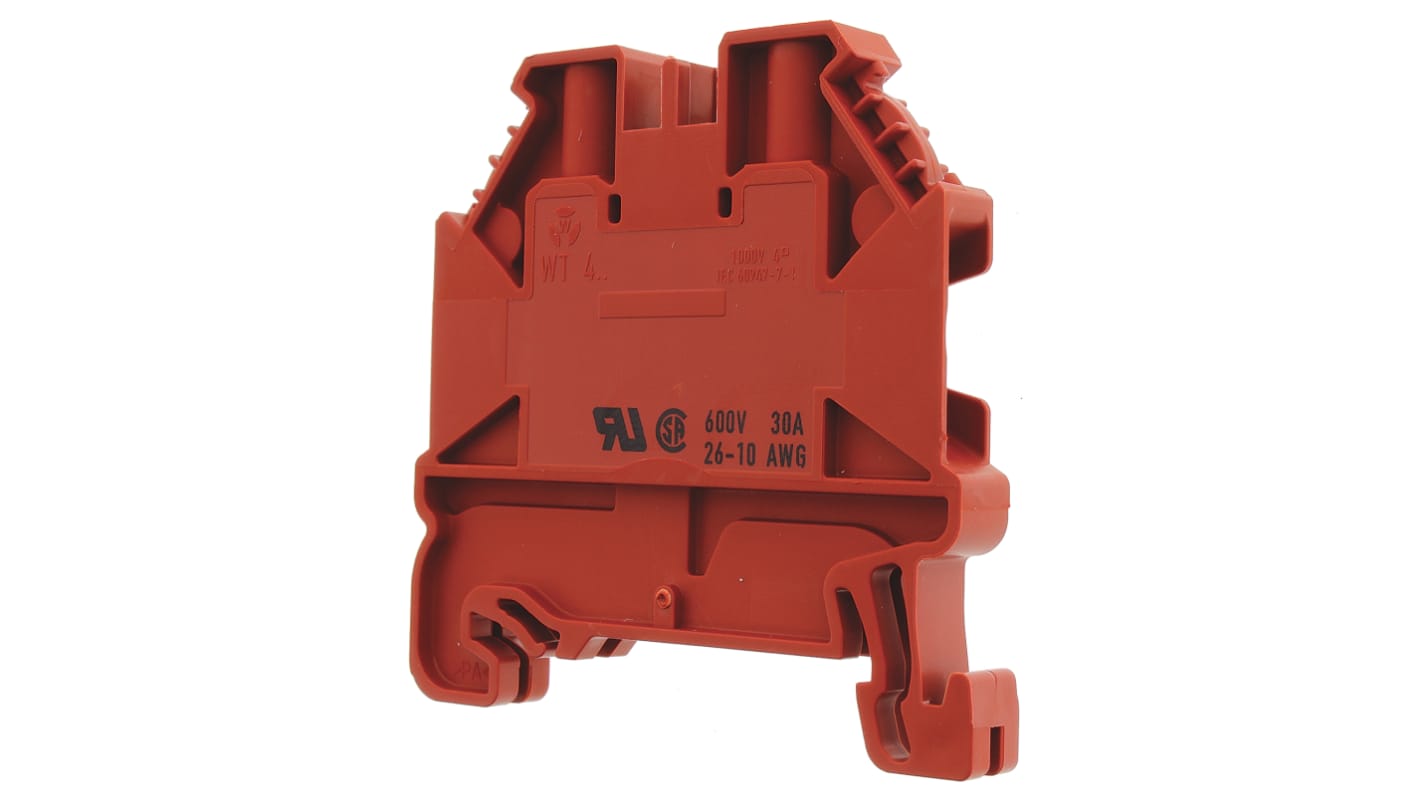

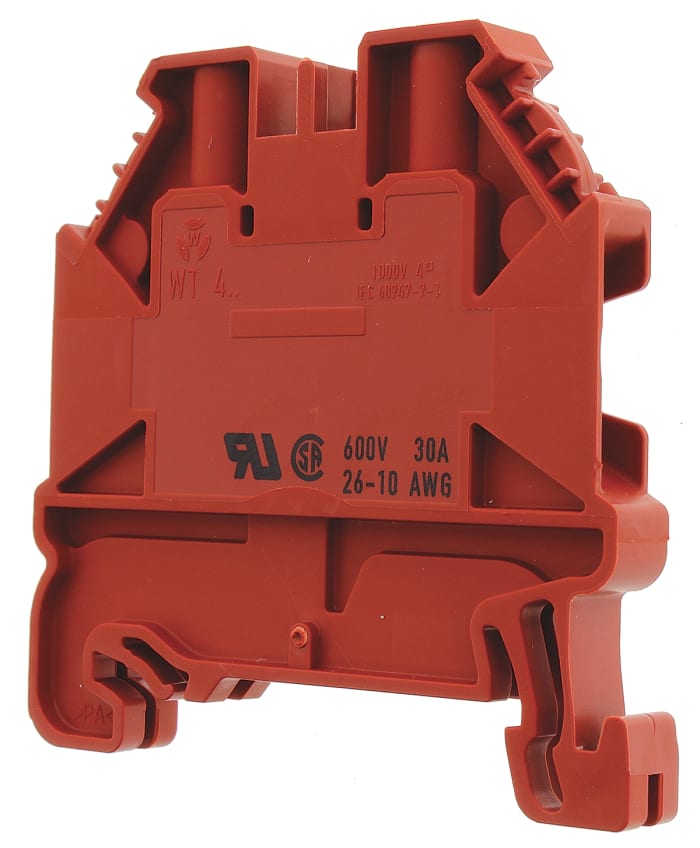

Wieland Electric 58.504.0055.5 Terminal Block 30A

Product Description

The WIELAND ELECTRIC 58.504.0055.5 is a terminal block designed for 10-22 AWG wires, supporting up to 30A. This feed-through DIN rail terminal block features a screw connection and is suitable for TS35 DIN rail mounting. It has a nominal cross-section of 4mm². It is designed for hazardous environments and has ATEX certification.

• Supports 10-22 AWG wires
• Features a screw connection
• Suitable for TS35 DIN rail mounting

Product Highlights

The WIELAND ELECTRIC 58.504.0055.5 terminal block is ideal for creating secure and reliable electrical connections in a variety of applications.

Product Information

Standard Information

• Brand: WIELAND ELECTRIC
• Manufacturer Part Number: 58.504.0055.5
• Country of Origin: DE

Technical Specifications

• Brand: Wieland
• Product Type: Feed Through Terminal Block
• Number of Positions: 2
• Number of Levels: 1
• Series: WT 4
• Voltage: 1kV
• Cable CSA: 10, 26AWG
• Minimum Wire Size AWG: 26AWG
• Maximum Wire Size AWG: 10AWG
• Pitch: 6mm
• Terminal Block Current: 32A
• Termination Type: Screw
• Minimum Operating Temperature: 120°C
• Maximum Operating Temperature: 120°C
• Hazardous Area Certification: ATEX
• Standards/Approvals: CSA, VDE, GL
• Colour: Red
• Country of Origin: Germany
