Wieland Electric 57.904.5555.0 WK 4/thsi 5 led 24u /v0 Fuse Terminal Block

Product Description

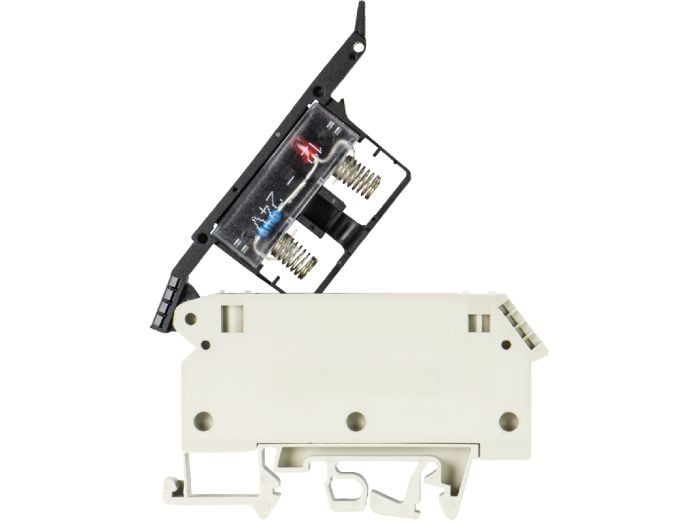

The WIELAND ELECTRIC 57.904.5555.0 WK 4/THSI 5 LED 24U /V0 is a fuse terminal block designed for efficient and secure connections. This SELOS series block features low contact resistance and high contact force. It accommodates wire sizes from 22 to 10 AWG and supports DIN Rail mounting. The block includes a red 24 V LED sensor indicator.

• Low Contact Resistance due to Large Surface Area
• High and Stable Contact Force
• One Terminal for All Common Mounting Rails

Product Highlights

Fuse terminal block with screw connection for mounting on TS 35 and TS 32.

Product Information

Standard Information

• Brand: WIELAND ELECTRIC
• Manufacturer Part Number: 57.904.5555.0
• Country of Origin: Germany

Technical Specifications

• Brand: Wieland
• Type: WK 4/THSI 5 LED 24U /V0
• MPN: 57.904.5555.0
• Product Series: SELOS
• Family Series: Wieland Terminal Blocks, SELOS Series
• Description: WK 4/ THSI 5 LED 24U V-O
• Number of Circuits: 1
• Spacing: 8 mm
• Current Rating: 6.3 A
• UL Voltage: 600 VAC
• Wire Size Range: 22 AWG
• CSA Voltage: 600 VAC
• Color: Gray
• Wire Entry Position: Side
• Mounting: DIN Rail
• Fuse Size: 5 x 30 mm
• Sensor Block Indicator: Red 24 V LED
• Approvals: CSA, UR
• Test Socket(s): No
• Partition: No
• Housing Color: Gray
• Housing Material: Thermoplastic
• Mounting Type: DIN Rail, G-Rail
• Number of Connections: 2
• Voltage Rating: 24 V
• Wire Size: 22 to 10 AWG
