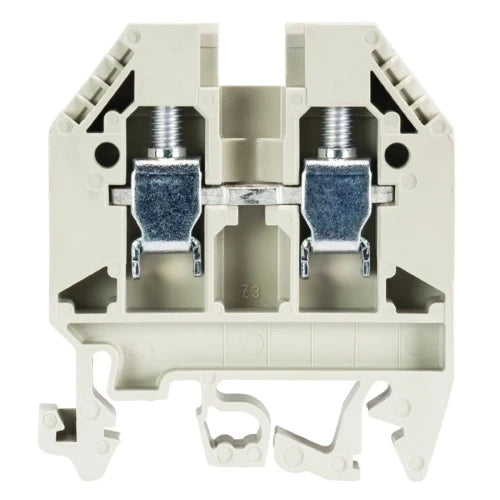

Wieland Electric 57.506.0055.0 Feed-Through Terminal Block 1000 Volt 41 Amp 22 to 8 AWG

Product Description

The WIELAND ELECTRIC 57.506.0055.0 is a feed-through DIN rail terminal block with screw connection for mounting on TS 35 and TS 32. This modular terminal block features a thermoplastic insulator and brass contact with a nominal cross-section of 6mm². It supports 22 to 8 AWG wire sizes and is suitable for industrial applications.

• Mounts on TS35 and TS32 DIN rails
• Supports 22 to 8 AWG wire sizes
• Features screw connection

Product Highlights

The WIELAND ELECTRIC 57.506.0055.0 terminal block is ideal for creating secure and organized electrical connections in industrial settings.

Product Information

Standard Information

• Brand: WIELAND ELECTRIC
• Manufacturer Part Number: 57.506.0055.0
• Country of Origin: Germany

Technical Specifications

• Type: Modular
• Brand: Wieland Electric
• Color: Gray
• Spacing: 8 mm
• Amperage: 41 Amp
• Mounting Type: 35 mm DIN Rail
• Connection Type: Screw
• Manufacturer: WIELAND
• Type of splice terminal: rail
• Rated Voltage: 1kV
• Electrical mounting: screw terminal
• Flammability rating: UL94V-0
• Wire cross-section: 6mm2
• Number of ways: 1
• Number of terminals: 2
• Width: 8mm
• Height: 48mm
• Mounting rail size: TS32, TS35
• No. of Positions: 2Positions
• Wire Size AWG Min: 22AWG
• Wire Size AWG Max: 8AWG
• Rated Current: 41A
• No. of Levels: 1
