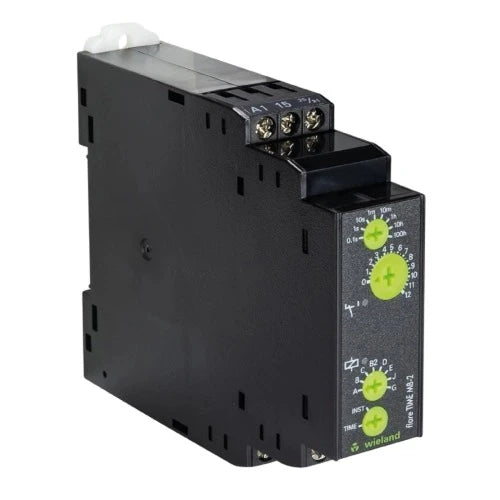

Wieland 81.020.0104.0 flareTIME_HM multi-function timer relay AC/DC 24-240 V (22.5 x 96.5 x 91.5 mm) 8102001040

Product Description

Wieland 81.020.0104.0 is a flareTIME_HM multi-function timer relay for DIN-rail mounting that provides eight selectable timing functions and two timed change-over contacts. The relay accepts AC/DC 24-240 V at 50-60 Hz, offers adjustable timing from 0.05 s up to 240 h, and uses screw terminal connections in a compact 22.5 x 96.5 x 91.5 mm housing for automation and control applications.

• Eight selectable timing functions including on-delay, off-delay, clock functions and pulse shaping
• Two timed changeover (SPDT) contacts with adjustable time range 0.05 s to 240 h
• Universal supply AC/DC 24-240 V, 50-60 Hz; DIN-rail mounting with screw terminal connection

Product Highlights

8 functions; 2 timed changeover contacts; 0.05 s to 240 h timing range; AC/DC 24-240 V; compact DIN-rail housing (22.5 x 96.5 x 91.5 mm)

Product Information

Standard Information

• Brand: WIELAND
• Manufacturer Part Number: 8102001040
• Country of Origin: Germany

Technical Specifications

• Brand: Wieland
• Manufacturer Part Number: 81.020.0104.0
• Alternate Part Number: 8102001040
• Model: flareTIME_HM (Flare TIME HM8-2-A)
• Product Type: Multi-function timer relay
• Functions: 8 functions
• Time Range: 0.05 s - 240 h (up to 10 d)
• Input Voltage: AC/DC 24-240 V
• Rated Frequency: 50-60 Hz
• Contacts: 2 timed change-over contacts
• Contact Type: Timed change-over (SPDT)
• Connection Type: Screw terminal
• Mounting Type: DIN rail
• Dimensions (W x H x D): 22.5 x 96.5 x 91.5 mm (0.886 x 3.800 x 3.602 in)
• Width: 22.5 mm
• Height: 96.5 mm
• Depth: 91.5 mm
• Weight: 146.21 g
• RoHS Status: RoHS compliant
• REACH Status: Duty-to-declare (contains lead; lead titanium zirconium oxide)
• Semiconductor Output: No
• Plug-in Socket: No
• Remote Operation Possible: No
• Time Functions Included: On-delay, off-delay, clock functions (start with pause and start with pulse), floating contact functions, pulse shaping
• EAN / GTIN: 4049088159084
• Status: Discontinued
