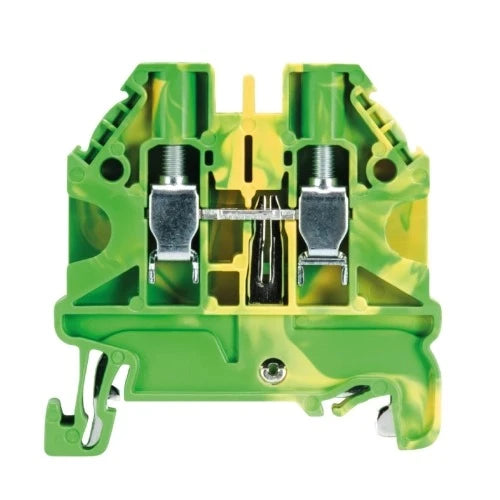

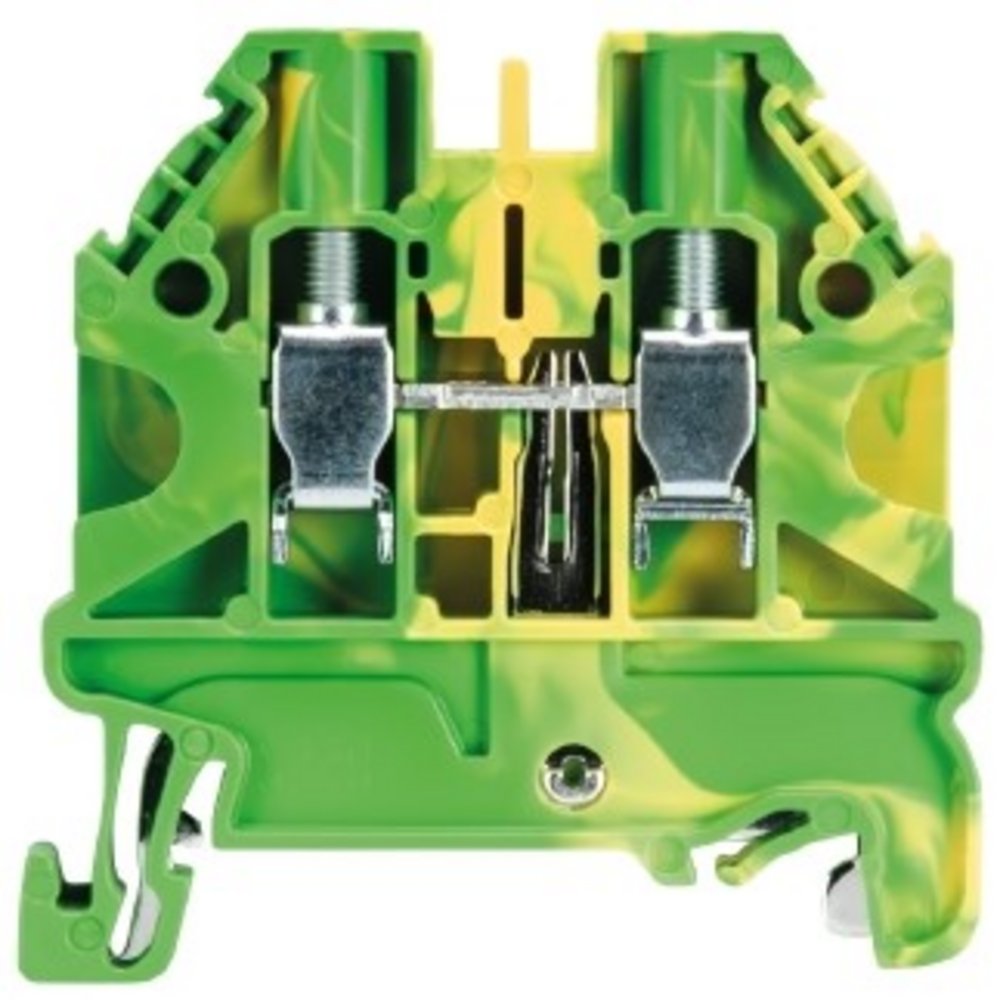

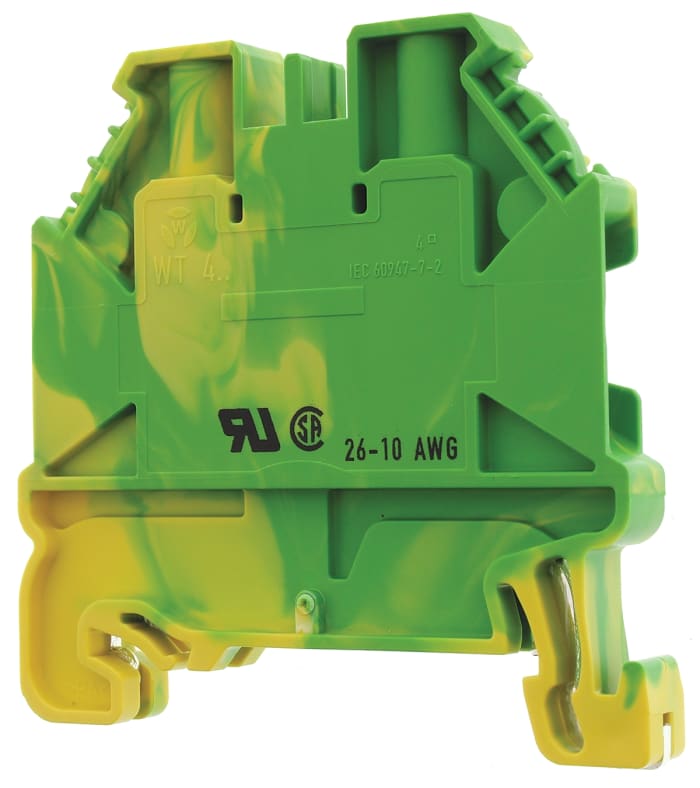

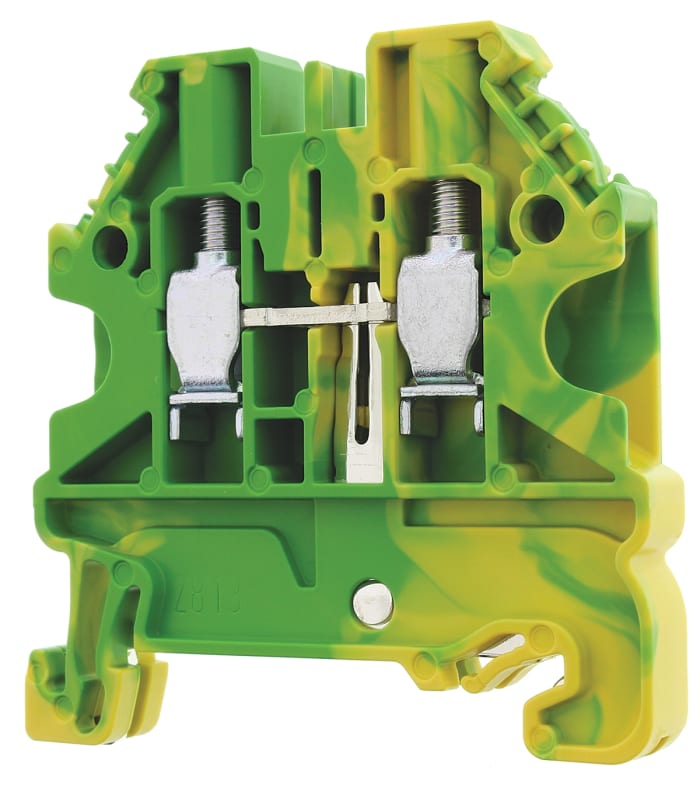

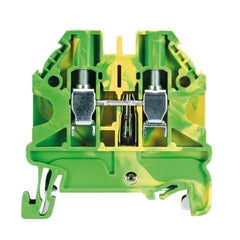

Wieland 5850490550 Conn Earth Terminal 1000 V (RA Cable Mount)

Product Description

Wieland 5850490550 is an earth terminal connector with screw termination configured for right-angle cable mount applications. It is a two-position ground terminal rated to 1000 V and supports conductors in the 10–26 AWG range. The block provides a nominal cross section of 4 mm² and is RoHS compliant. Typical use cases include earthing and grounding connections in electrical panels and control equipment where compact, screw-terminated cable connections are required.

• Two-position earth terminal with screw termination and right-angle cable mount
• Voltage rating: 1000 V; supports wire sizes 10–26 AWG; nominal cross section 4 mm²
• RoHS compliant; thermoplastic block material; connector capacity for two equal-size conductors

Product Highlights

Right-angle screw earth terminal, 2 positions, 1000 V rating, supports 10–26 AWG, nominal 4 mm² cross section, RoHS compliant

Product Information

Standard Information

• Brand: WIELAND
• Manufacturer Part Number: 5850490550
• Country of Origin: Germany

Technical Specifications

• Brand: Wieland
• Manufacturer Part Number: 5850490550
• Type: Earth terminal block
• Series: WT 4 PE
• Number of Positions: 2
• Connector Capacity: 2 wires, equal size
• Termination Type: Screw
• Mounting: Right-angle cable mount
• Voltage Rating: 1000 V
• Nominal Cross Section: 4 mm
