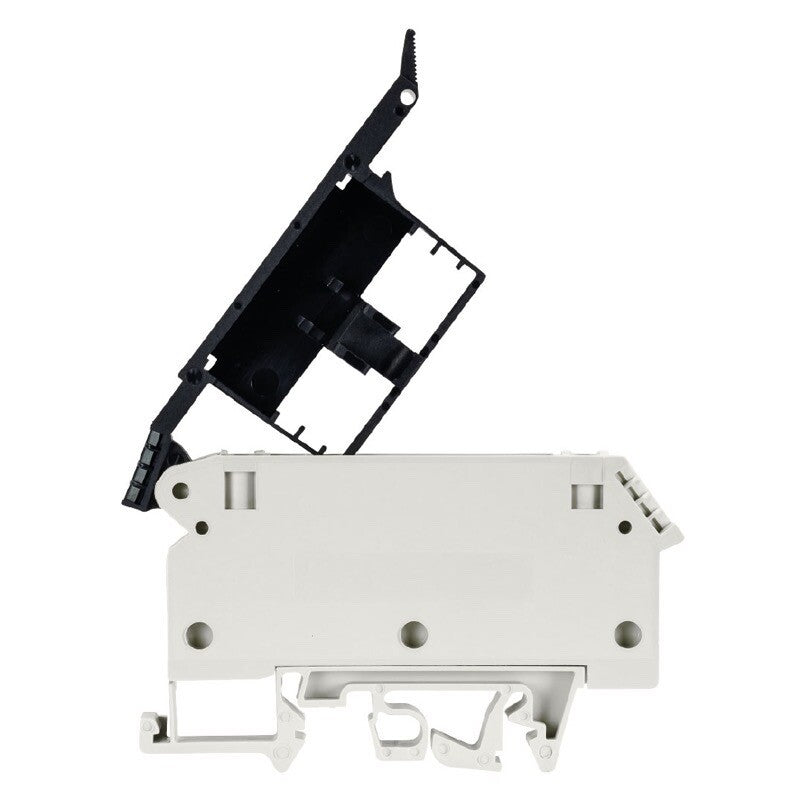

Wieland 57.904.6355.0 Conn Fuse Block 15 A (1 Position) 57.904.6355.0

Product Description

Wieland 57.904.6355.0 is a single-position conn fuse block designed for DIN rail and T-rail mounting, rated 15 A. It provides a screw terminal connection with a ground option and is suitable for control and distribution systems. The component accepts 6.3 x 32 mm fuses and supports installation on TS35 and TS32 rails, with RoHS compliance and German origin.

• Single-position fuse block for DIN rail and T-rail mounting (TS35, TS32) with screw terminal
• Rated current 15 A; suitable for 6.3 x 32 mm fuses and designed for copper conductors
• RoHS compliant, straight body orientation, includes ground connection

Product Highlights

Single-position DIN-rail fuse block, 15 A rating, screw terminal with ground, suitable for 6.3 x 32 mm fuses; RoHS compliant.

Product Information

Standard Information

• Brand: WIELAND
• Manufacturer Part Number: 5790463550
• Country of Origin: Germany

Technical Specifications

• Brand: Wieland
• Manufacturer: Wieland Electric
• Manufacturer Part Number: 57.904.6355.0
• Catalog Number: 57.904.6355.0
• Also Known As: 015573508037, 57.904.6355.0
• UPC: 015573508037
• EAN: 4015573508033
• Product Type: Connector / Fuse Block
• Positions: 1
• Terminal Type: Screw terminal
• Ground: Yes
• Mounting: DIN Rail, T-Rail (TS35, TS32)
• Current Rating: 15 A
• Suitable Fuse Size: 6.3 x 32 mm
• Voltage Rating: 800 V (IEC 60947-7-1)
• Maximum Cable Size: 4 mm^2
• Cable Size Range with Ferrule: 0.5 - 4 mm^2
• Body Orientation: Straight
• RoHS Compliance: Yes
• Country of Origin: Germany
