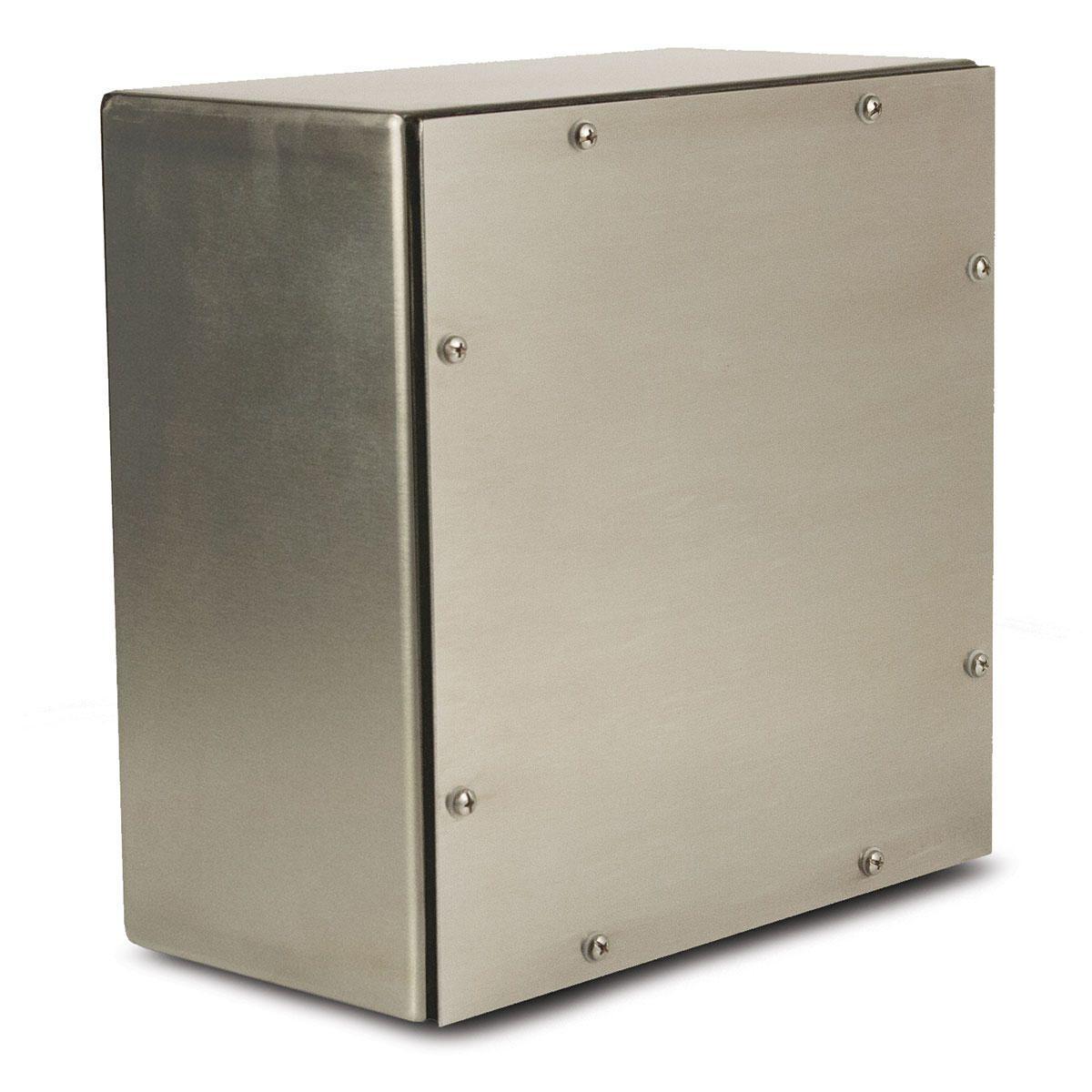

Wiegmann WA060604GSCSS Wall mount enclosure 6 in H x 6.00 inches W x 4 in D (6x6x4)

Product Description

Wiegmann WA060604GSCSS is a 6 x 6 x 4 inch wall-mount electrical enclosure made from 304 stainless steel, providing 144 cubic inches of capacity and NEMA 4, 4X, 12, 13 protection. The screw cover includes a closed-cell oil-resistant neoprene gasket and seams are continuously welded and ground smooth for dust and moisture resistance, with an internal ground stud and cULus listing.

• 304 stainless steel construction with smooth grained finish and continuously welded seams
• Screw cover with closed-cell oil-resistant neoprene gasket and internal ground stud
• NEMA 4, 4X, 12, 13 rated; 6 in H x 6 in W x 4 in D; 144 cu in capacity

Product Highlights

Compact 6x6x4 stainless steel NEMA 4X gasketed wall-mount enclosure

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: WA060604GSCSS
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: WA060604GSCSS
• Series: WA0
• Material: 304 stainless steel
• Dimensions: 6 in H x 6.00 in W x 4 in D
• Cubic Capacity: 144 cu.in
• Mounting Type: Wall
• Cover Type: Screw cover (fixed door)
• Gasket: Closed-cell oil resistant neoprene gasket
• Seams / Construction: Continuously welded and ground smooth
• NEMA Rating: 4, 4X, 12, 13
• Certifications: cULus
• Ground Stud Location: Inside cover
• Finish: Smooth grained
• Number of Doors (Fixed): 1
• Application: Wiring box, junction box, pull box, or terminal box for indoor/outdoor use
• Country of Origin: United States
• Weight: 4.000 lb
