Product Description

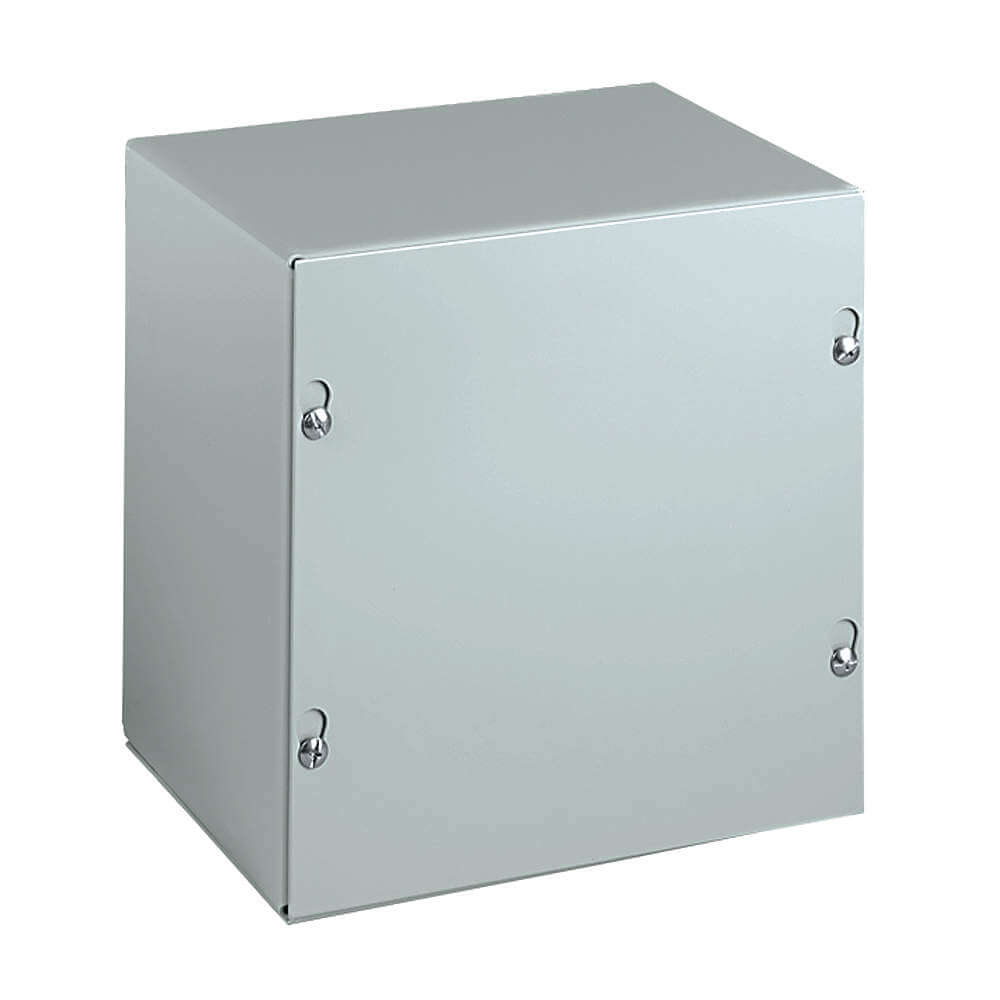

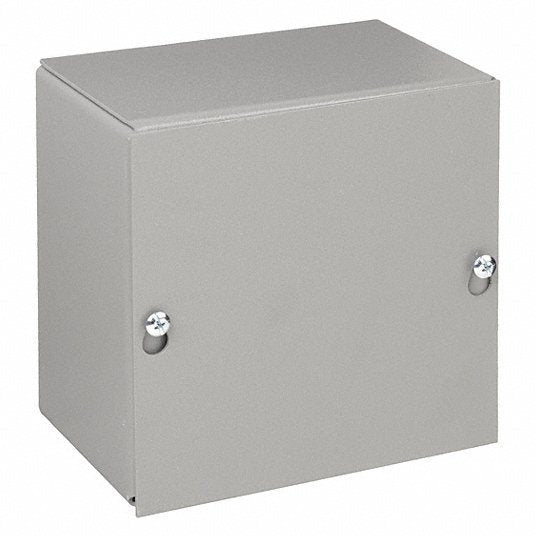

The Wiegmann SC161604NK N1 screw-cover enclosure features durable construction suitable for junction and pull box applications. Made from sixteen gauge steel, this product is ideal for both commercial and general industrial use. The removable screw covers allow for easy access without needing to remove the screws. Installation is simplified thanks to the pre-installed mounting holes on the back.
- Constructed from sixteen gauge steel
- Features screw covers secured with plated steel screws
- Allows easy cover removal without extracting screws
Product Highlights
The enclosure is versatile, supporting a range of applications where secure junctions are needed. Its robust design and easy installation make it a practical choice for electricians and contractors.
Product Information
Standard Information
-
Application: Junction box and pull box
-
Color: Ansi-61 Gray Textured
Technical Specifications
-
Catalog Number: SC161604NK
-
Material: Carbon Steel
-
Construction: Spot Welded
-
Cover Type: Screw Cover
-
Knockouts: No
-
Listings: UL, CSA
-
Depth: 4 inches
-
Height: 16 inches
-
Width: 16 inches
-
Weight: 13.5 lbs
-
Mounting Type: Embossed Mounting Holes
-
Capacity: 1024 cu-in
-
Standards: CSA Certified; cULus; UL Listed
-
Environmental Use: Indoor
