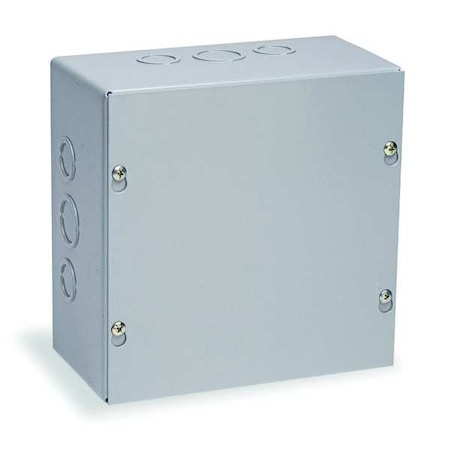

Wiegmann SC151504NK Nema 1 Wall Mount Enclosure 15 x 15 x 4 in

Product Description

Wiegmann SC151504NK is a Nema 1 wall-mount carbon steel enclosure measuring 15 x 15 x 4 inches for use as a junction box or pull box in commercial and general industrial electrical installations. The unit features a solid screw-on cover secured with plated steel screws, embossed mounting holes for wall installation, 16 gauge construction, a usable opening depth of 3.88 in, and approximately 900 cu. in capacity. It is UL listed and CSA certified.

• Carbon steel construction, 16 gauge, with ANSI 61 polyester powder finish
• Solid screw-on cover with plated steel screws and usable opening depth 3.88 in
• Wall mounting with embossed mounting holes; Nema 1 rating; cULus (UL listed) and CSA certified

Product Highlights

Nema 1 wall-mount carbon steel enclosure, 15 x 15 x 4 in, 900 cu. in capacity, no knockouts

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: SC151504NK
• Country of Origin: United States

Technical Specifications

• Manufacturer: Wiegmann
• Manufacturer Part Number: SC151504NK
• Series: SC
• Product Type: Wall-mount enclosure
• NEMA Rating: 1
• Material: Carbon steel
• Metal Gauge: 16 gauge
• Finish: ANSI 61 polyester powder
• Height: 15 in
• Width: 15 in
• Depth: 4 in
• Usable Opening Depth: 3.88 in
• Capacity: 900 cu. in
• Cover Type: Solid screw-on cover
• Cover Fasteners: Plated steel screws
• Closure Method: Screws
• Mounting Type: Embossed mounting holes (wall)
• Knockouts: No
• Weight: 13 lb
• Certifications: cULus (UL listed), CSA certified
• Country of Origin: United States
