WIEGMANN Wiegmann SC122412NK N1 screw cover (12 x 24 x 12)
WIEGMANN Wiegmann SC122412NK N1 screw cover (12 x 24 x 12)

Wiegmann SC122412NK N1 screw cover (12 x 24 x 12)

Brand: WIEGMANN
SKU: SC122412NK
Availability: Out Of Stock
$105.29
$105.29
LTL Delivery

This product weighs 64 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

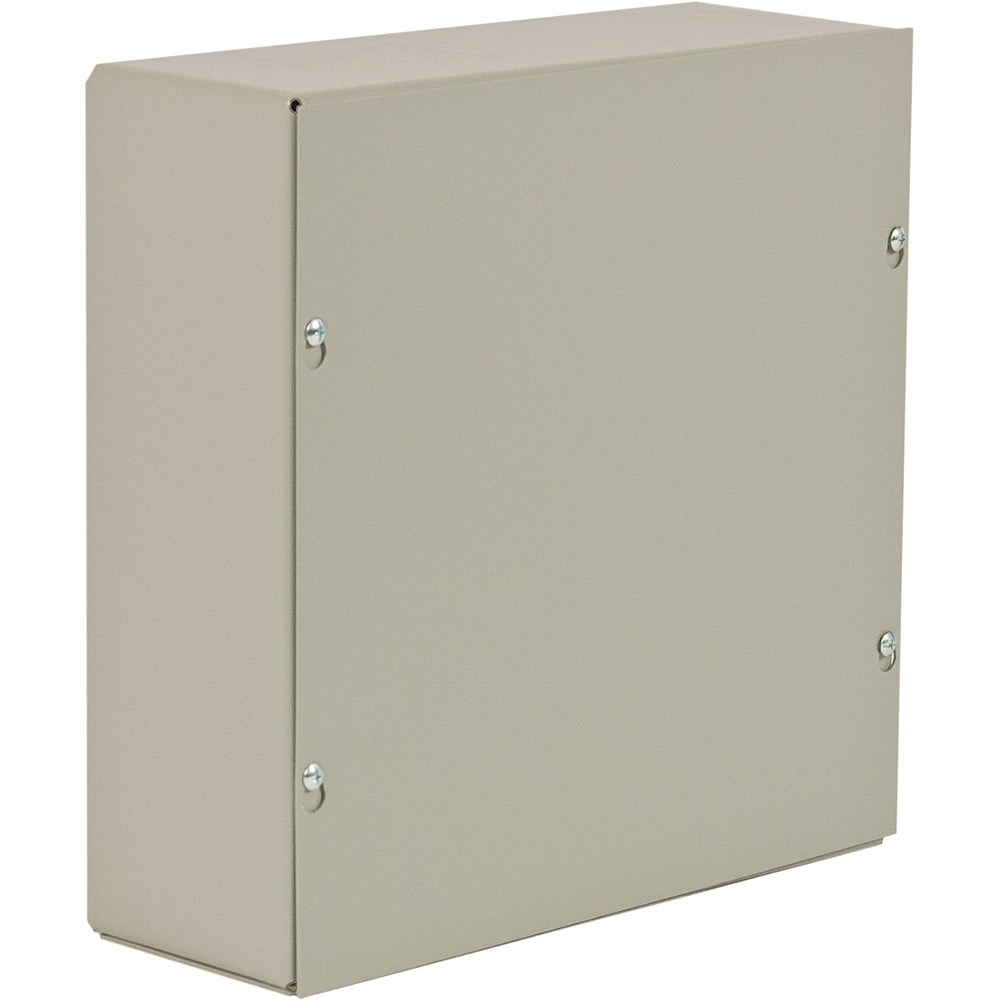

Wiegmann SC122412NK is an N1 screw-cover carbon steel wall-mount enclosure measuring 24 x 12 x 12 inches. It features a flat, removable screw-fastened cover and a tack-welded 16 gauge carbon steel body with a polyester powder coat over a phosphatized surface. The enclosure is NEMA 1 rated, UL and CSA approved, has no knockouts, mounting holes on the back, and a cubic capacity of 3456 cu in.

  • 16 gauge carbon steel construction with polyester powder coat finish
  • Flat, removable screw cover that permits removal without extracting cover screws
  • NEMA 1 indoor enclosure with UL 50 and CSA approvals; mounting holes on back; no knockouts; 3456 cu in capacity

Product Highlights

NEMA 1; 16 ga carbon steel; 24 x 12 x 12 in; no knockouts; UL and CSA listed

Product Information

Standard Information

  • Brand: WIEGMANN
  • Manufacturer Part Number: SC122412NK
  • Country of Origin: United States
Technical Specifications
Brand
Wiegmann
Manufacturer Part Number
SC122412NK
Model
SC122412NK
Series
SC
Material
Carbon steel
Material Gauge
16 gauge
Construction
Tack welded
Finish
Polyester powder coat over phosphatized surface (ANSI 61 gray)
Finish Type
Smooth
Dimensions (H x W x D)
24 x 12 x 12 in
Actual Dimensions (H x W x D)
24.125 x 12.125 x 12 in
Weight
64 lb
NEMA Rating
NEMA 1
Cover Type
Flat, removable screw-fastened cover
Knockouts
No knockouts
Mounting Type
Wall mount (mounting holes on back)
Cubic Capacity
3456 cu in
Certifications
UL 50; CSA (cULus); UL File No. E23553; CSA File No. LL66078
Listings
UL, CSA
Application
Junction box and pull box for commercial and general industrial applications
UPC
786725846696
Country of Origin
United States
