Wiegmann SC122404 N1 Screw Cover 12 x 24 x 4

Brand: WIEGMANN
SKU: SC122404
Availability: In Stock

Ships same day if ordered by 12 pm
$83.77
$83.77
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

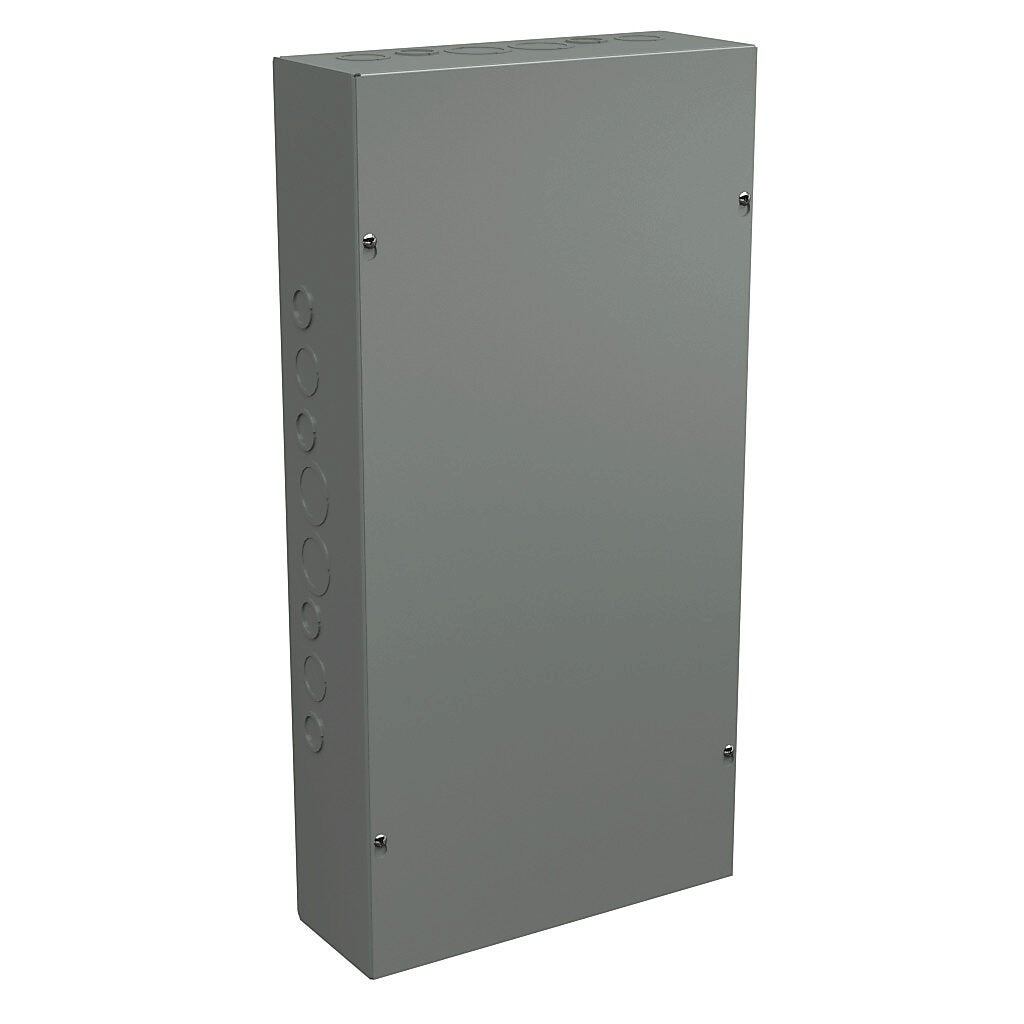

The Wiegmann SC122404 is an NEMA 1 screw-cover junction and pull box constructed of carbon steel for indoor commercial and industrial use. The enclosure measures 24 x 12 x 4 inches (H x W x D), features a textured finish and knockouts for cable entry, and is listed to UL/cULus and CSA standards. The cover is flat and removable with screw fastening and the box includes embossed back mounting holes.

  • Material: carbon steel construction with textured finish; spot welded assembly
  • Enclosure dimensions 24 x 12 x 4 in (H x W x D) with 1152 cu in capacity and embossed mounting holes
  • NEMA 1 rated with removable concentric knockouts for conduit entry; UL/cULus and CSA listed

Product Highlights

NEMA 1 carbon steel screw-cover enclosure with knockouts and embossed back mounting

Product Information

Standard Information

  • Brand: WIEGMANN
  • Manufacturer Part Number: SC122404
  • Country of Origin: United States
Technical Specifications
Brand
Wiegmann
Manufacturer Part Number
SC122404
Type
Enclosure / Junction box / Pull box
Material
Carbon steel
Material Gauge
16 gauge
Construction
Spot welded
Finish
Textured
Finish Coating
Polyester powder coat over phosphatized surface
NEMA Rating
1
Dimensions (H x W x D)
24 x 12 x 4 in
Actual Dimensions (H x W x D)
24.125 x 12.125 x 4.188 in
Cubic Capacity
1152 cu in
Weight
20 lb
Mounting Type
Embossed mounting holes / Wall mount
Cover Type
Flat screw-cover (removable, screw-fastened)
Knockouts
Yes (removable concentric knockouts on all four sides)
Number of Knockouts
28
Knockout Sizes
1/2 to 1-1/4 in (various concentric sizes)
Listings / Certifications
UL, cULus, CSA (UL File No. E23553; CSA File No. LL66078)
Application
Commercial and general industrial indoor use
Country of Origin
United States
UPC
786725846504
Series
SC
