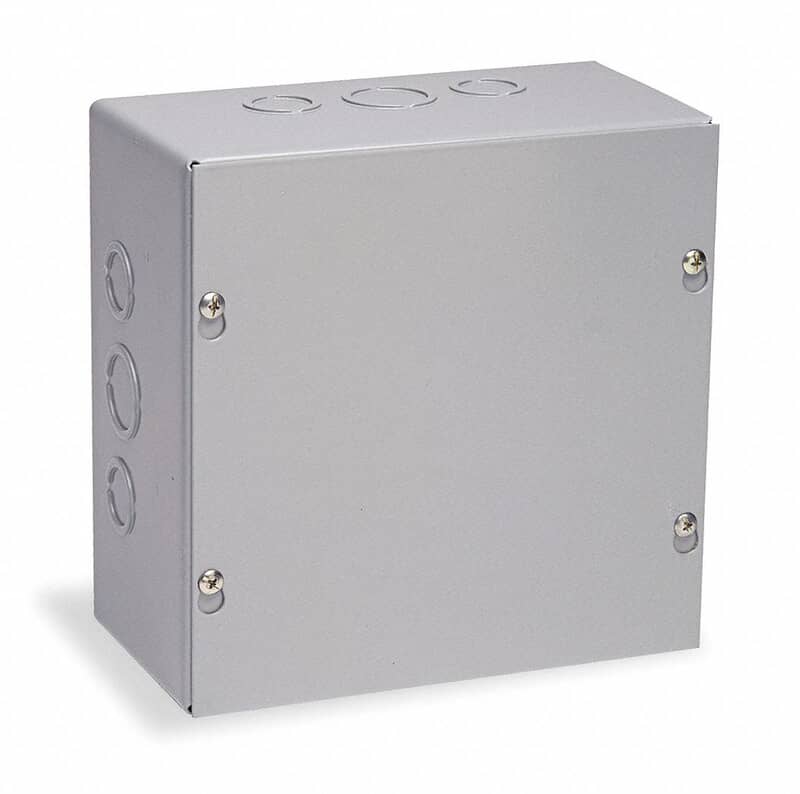

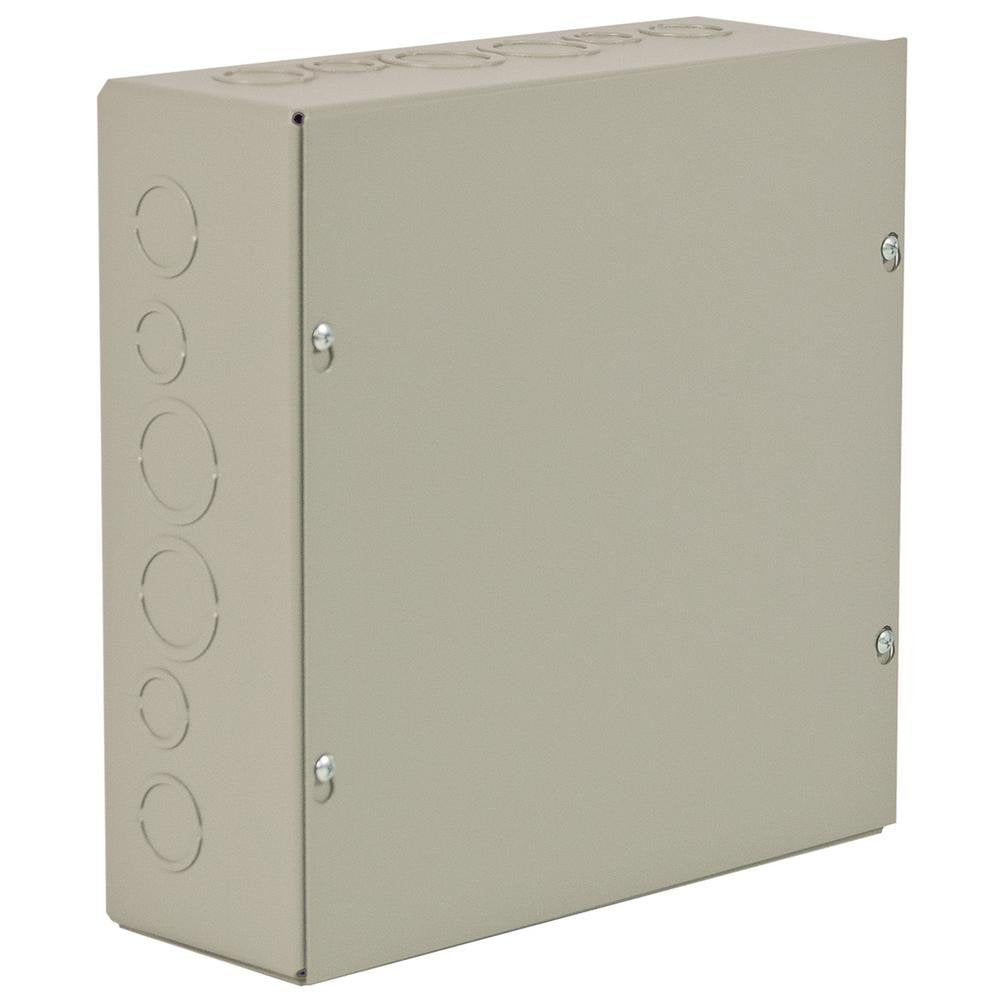

Wiegmann SC101204 Enclosure 10in 4in Scr NEMA 1 CS Wall

Product Description

The WIEGMANN SC101204 enclosure is designed for use as a junction box and pull box in commercial and general industrial applications. It measures 10 inches in width, 4 inches in depth, and 12 inches in height. The enclosure is constructed of carbon steel with a polyester powder-coated gray finish and features a screw cover and wall mounting capability.

• Designed for use as a junction box and pull box in commercial and general industrial applications
• Flat, removable covers fastened with plated steel screws
• Mounting holes on back of box

Product Highlights

The WIEGMANN SC101204 enclosure is a NEMA 1 rated enclosure with knockouts, ideal for industrial junction box applications.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: SC101204
• Country of Origin: United States

Technical Specifications

• Type: Spot Welded
• Color: Gray
• Depth: 4 in
• Width: 10 in
• Finish: Polyester Powder Coated
• Height: 12 in
• Series: SC Series
• Capacity: 480 cu-in
• Cover Type: Screw
• NEMA Rating: 1
• Manufacturer: Hubbell
• Mounting Type: Wall
• Material: Carbon Steel
• Standards: UL Listed, CSA Certified
• Metal Gauge: 16
• Includes: Self Tapping Screws
• Enclosure Cover Features: Plated Steel Screws
• Features: Embossed Mounting Holes
• Knockouts / No Knockouts: Knockouts
• Usable Opening Depth: 4.06"
• Knockouts: Yes
• Basic Material: Metallic
• Closure Method: Screws
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Screw On
• Enclosure NEMA Rating: 1
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 10 in
• Item: Enclosure
• Actual Depth: 4.188 in
• Actual Height: 12.25 in
• Actual Width: 10.125 in
• Cable Entry: Knock Outs
• Certified Listed: cULus
