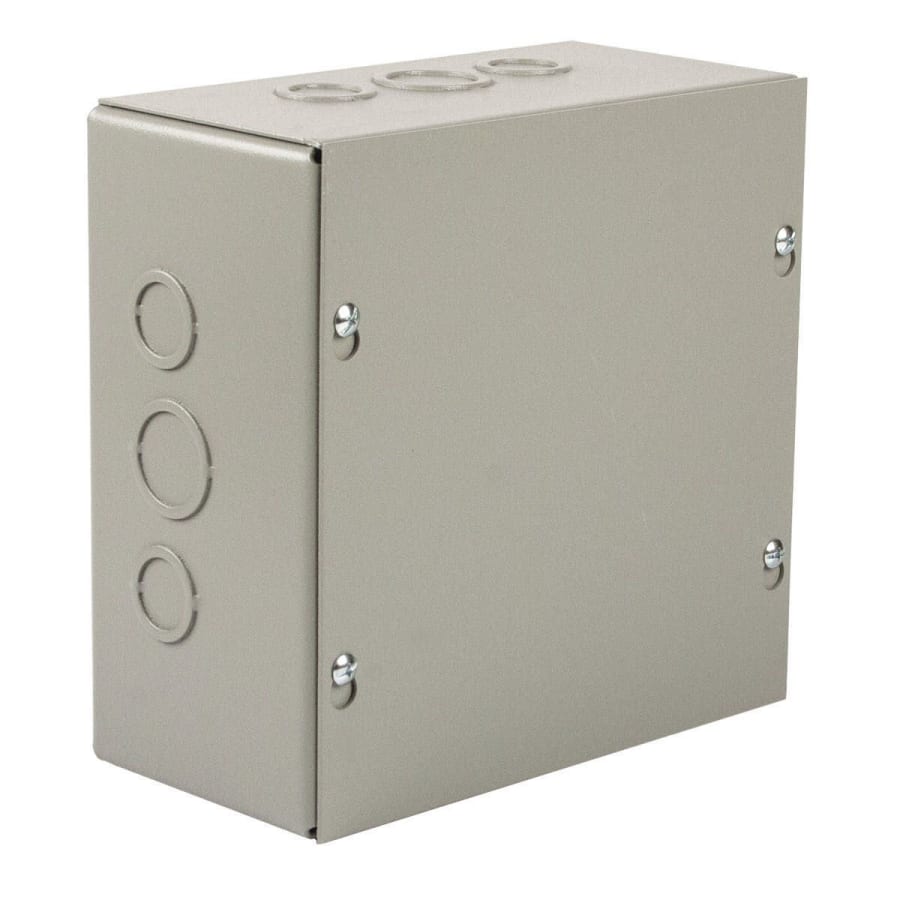

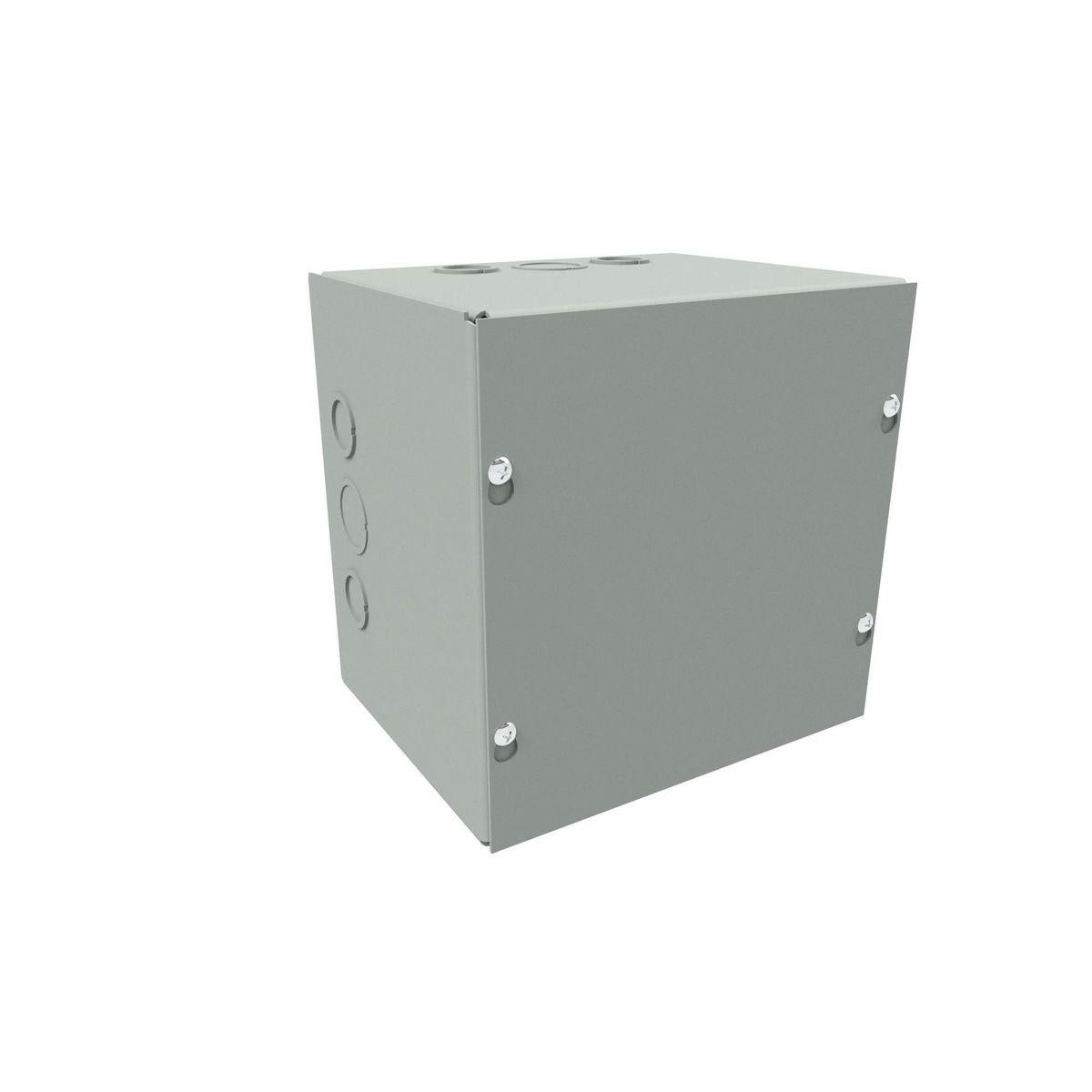

Wiegmann SC081204 Enclosure 8 in x 12 in x 4 in

Product Description

The WIEGMANN SC081204 enclosure is designed for use as a junction box and pull box in commercial and general industrial applications. It measures 8 inches in width, 4 inches in depth, and 12 inches in height. Constructed from 16 gauge steel with a polyester powder-coated gray finish and features a screw cover. Includes self-tapping screws.

• Designed for use as a junction box and pull box in commercial and general industrial applications
• Flat, removable covers fastened with plated steel screws
• Cover design permits easy removal without extracting cover screws

Product Highlights

This Wiegmann SC Series enclosure features mounting holes, removable knockouts, and a NEMA 1 rating.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: SC081204
• Country of Origin: MX, US

Technical Specifications

• Type: Spot Welded, Enclosure, Pull Box
• Color: Gray
• Depth: 4 in
• Width: 8 in
• Finish: Polyester Powder Coated, Textured
• Height: 12 in
• Series: SC Series
• Capacity: 384 cu-in
• Cover Type: Screw
• NEMA Rating: NEMA 1
• Manufacturer: Hubbell
• Mounting Type: Wall, Embossed Mounting Holes
• Material: Carbon Steel, Steel
• Knockouts: Yes
• Listings: UL, CSA
• Actual Depth: 4.188 in
• Actual Height: 12.25 in
• Actual Width: 8.125 in
• Cable Entry: Knock Outs
• Number of Knockouts: 12
• Certifications: UL, CSA
• Location Rating: Dry Location
• Standards: California Proposition 65
