Wiegmann SC060804NK N1 screw-cover (6 x 8 x 4 in)

Brand: WIEGMANN
SKU: SC060804NK
Availability: In Stock

Ships same day if ordered by 12 pm
$29.42
$29.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

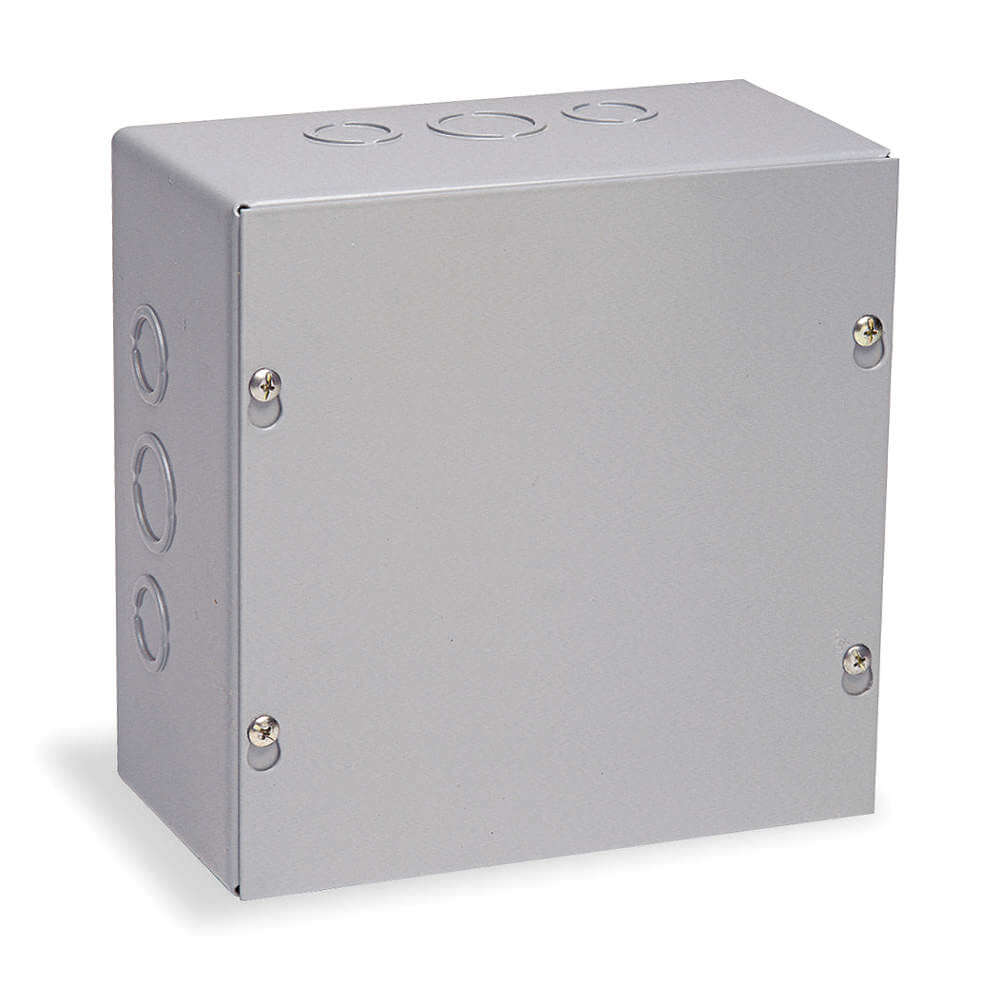

The Wiegmann SC060804NK is a NEMA 1 wall-mount screw-cover enclosure constructed of 16 gauge carbon steel and sized 8 in H x 6 in W x 4 in D with a usable opening depth of 3.88 in. It features a flat screw-on solid cover with plated steel captive screws, embossed mounting holes, and includes self-tapping screws. The enclosure has no factory knockouts and is listed to cULus, UL, and CSA for indoor junction box and pull box applications.

  • 16 gauge carbon steel body with ANSI 61 polyester powder coat finish
  • Flat screw-on solid cover with plated steel captive/captive screws; includes self-tapping screws
  • NEMA 1 indoor rating, no factory knockouts, embossed wall-mounting holes; usable opening depth 3.88 in

Product Highlights

6 x 8 x 4 in NEMA 1 carbon steel screw-cover enclosure

Product Information

Standard Information

  • Brand: WIEGMANN
  • Manufacturer Part Number: SC060804NK
  • Country of Origin: United States
Technical Specifications
Brand
Wiegmann
Manufacturer Part Number
SC060804NK
Series
SC
Model/Type
N1 Screw-Cover
Product Type
Screw-cover enclosure / junction box
NEMA Rating
1
Dimensions (H x W x D)
8 in x 6 in x 4 in
Usable Opening Depth
3.88 in
Capacity
192 cu.in
Material
Carbon steel
Body Material Thickness
16 ga
Finish
ANSI 61 polyester powder coat (textured)
Cover Type
Solid screw-on cover
Closure Method
Screw-on cover with plated steel captive screws
Includes
Self-tapping screws
Knockouts
No knockouts
Mounting
Wall mount with embossed mounting holes
Environment / Application
Indoor; commercial and general industrial junction box and pull box
Certifications
cULus, UL Listed, CSA
Weight
4.2 lb
Country of Origin
United States
Series / Catalog
SC Series
Cover Features
Plated steel screws
Finish Type
Textured
