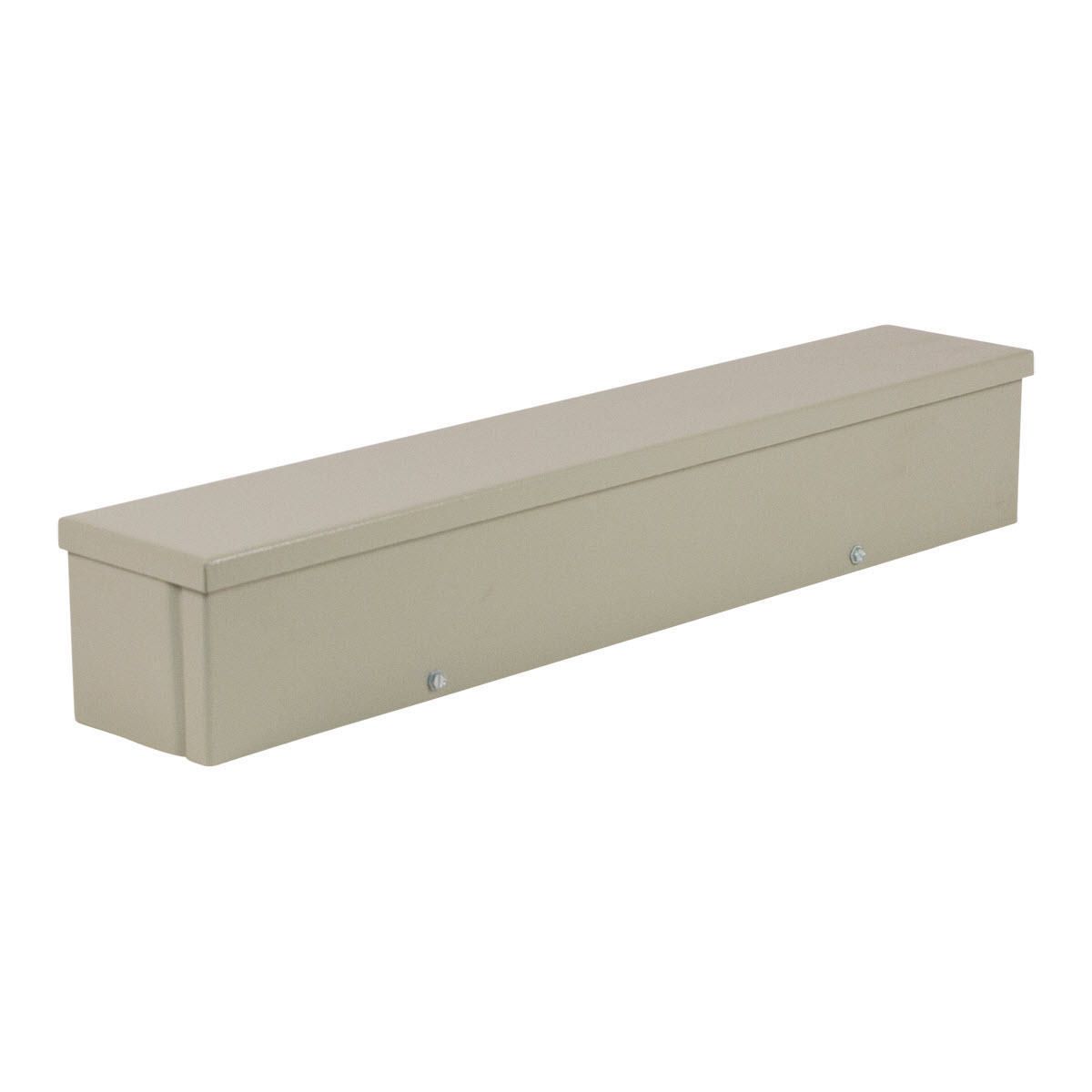

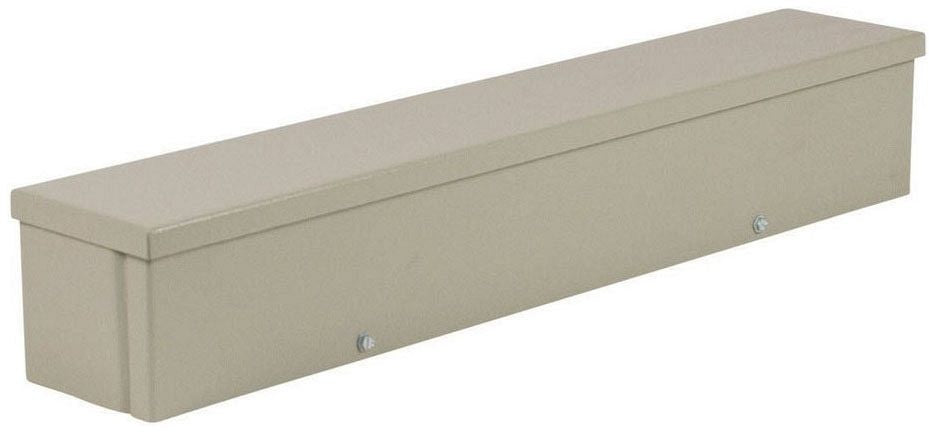

Wiegmann RSCG060624 Wiring Trough 6x6x24

Product Description

Wiegmann RSCG060624 wiring trough is a NEMA 3R raintight metal enclosure designed to protect wiring outdoors from rain, sleet, and snow or indoors from dripping water. The trough is fabricated from 16 gauge carbon steel with an ANSI 61 polyester powder coat and includes a screw-on slip-on cover with drip shield top, embossed mounting holes, and bottom knockouts for conduit entry. Overall dimensions are 24.13 in length by 6.06 in width and 6.06 in height.

• NEMA 3R raintight enclosure fabricated from 16 gauge carbon steel with ANSI 61 polyester powder coat; certified cULus (UL, CSA).
• Slip-on screw cover with drip shield top, smooth seamless sides, embossed wall-mounting holes, and included mounting screws.
• Multiple bottom knockouts for conduit entry (concentric and solid sizes including 1/2", 3/4", 1", 1-1/4"), usable opening depth 5.88 in, cubic capacity 864 cu.in.

Product Highlights

NEMA 3R raintight wiring trough; 16 ga carbon steel; 24.13 x 6.06 x 6.06 in; screw-on drip shield cover; multiple bottom knockouts; cULus listed.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RSCG060624
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: RSCG060624
• Series: RSCG
• Product Type: Wiring Trough
• Material: Carbon steel
• Metal Gauge: 16 ga
• Finish: ANSI 61 polyester powder coat
• NEMA Rating: 3R
• Length: 24.13 in
• Width: 6.06 in
• Height: 6.06 in
• Usable Opening Depth: 5.88 in
• Cubic Capacity: 864 cu.in
• Weight: 13.5 lb
• Cover Type: Screw-on slip-on removable cover
• Cover Features: Drip shield top; smooth seamless sides/front/back
• Closure Method: Screws
• Mounting Type: Wall mount / Embossed mounting holes
• Knockouts: Bottom knockouts; multiple concentric and solid sizes including 1/2", 3/4", 1", 1-1/4"
• Construction: Spot and tack welded
• Includes: Screws
• Certifications: cULus (UL, CSA); UL 870 noted in manufacturer data
• RoHS Compliance: Yes
• Application: Protect wiring outdoors against rain, sleet, snow or indoors against dripping water
• Country of Origin: United States
• UPC: 786725408559
• Category: Wireway troughs and gutters
