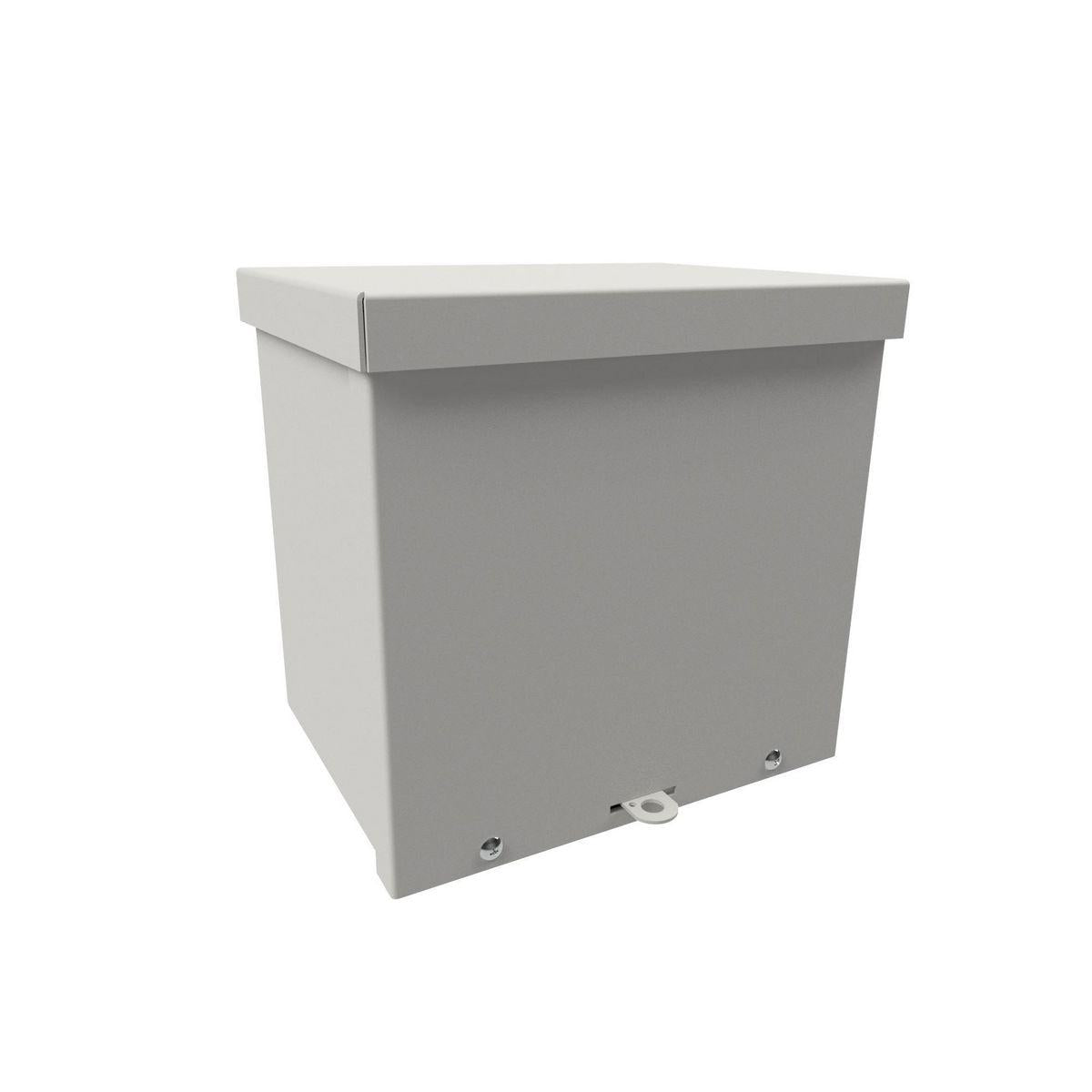

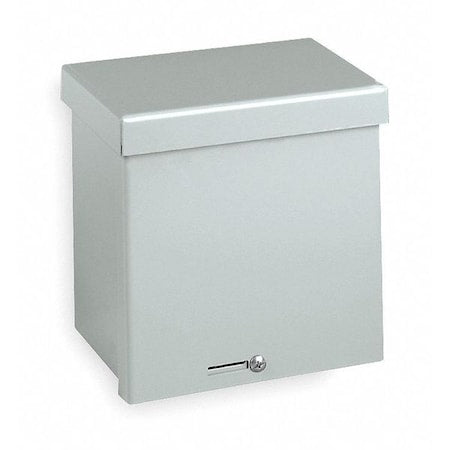

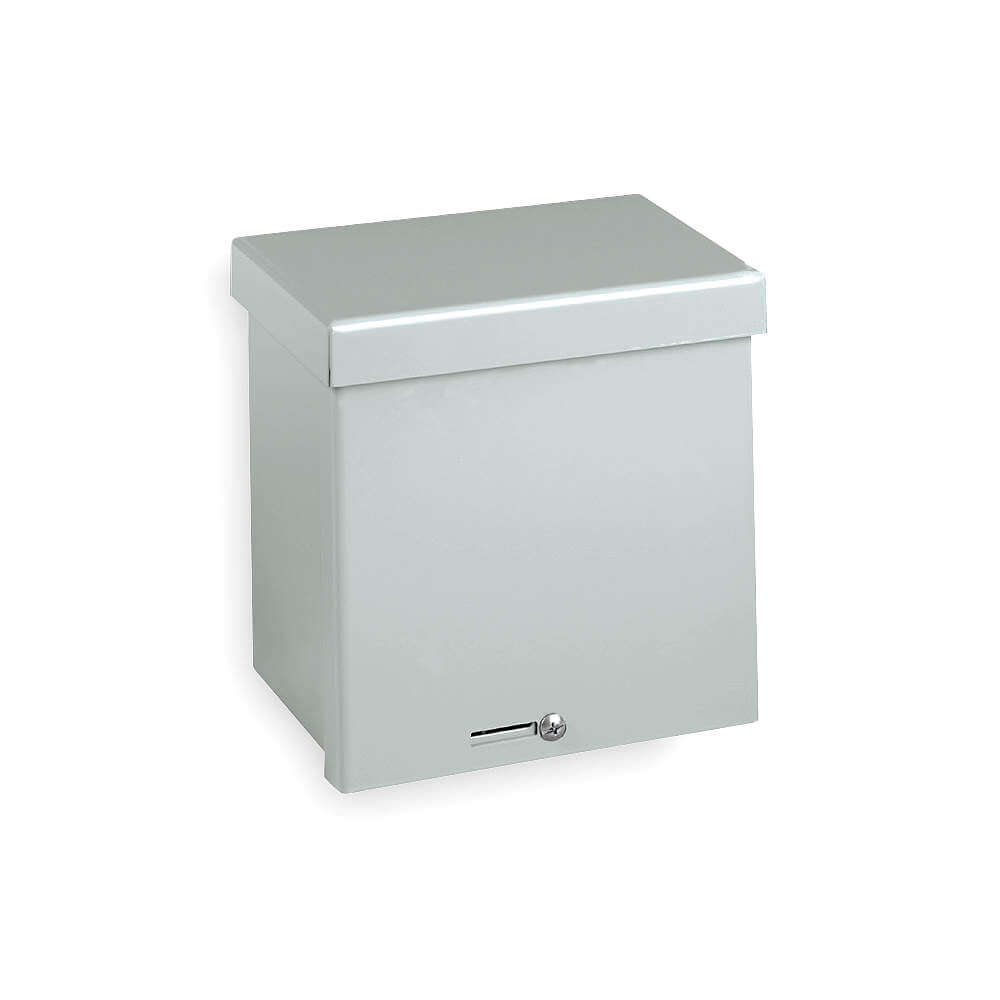

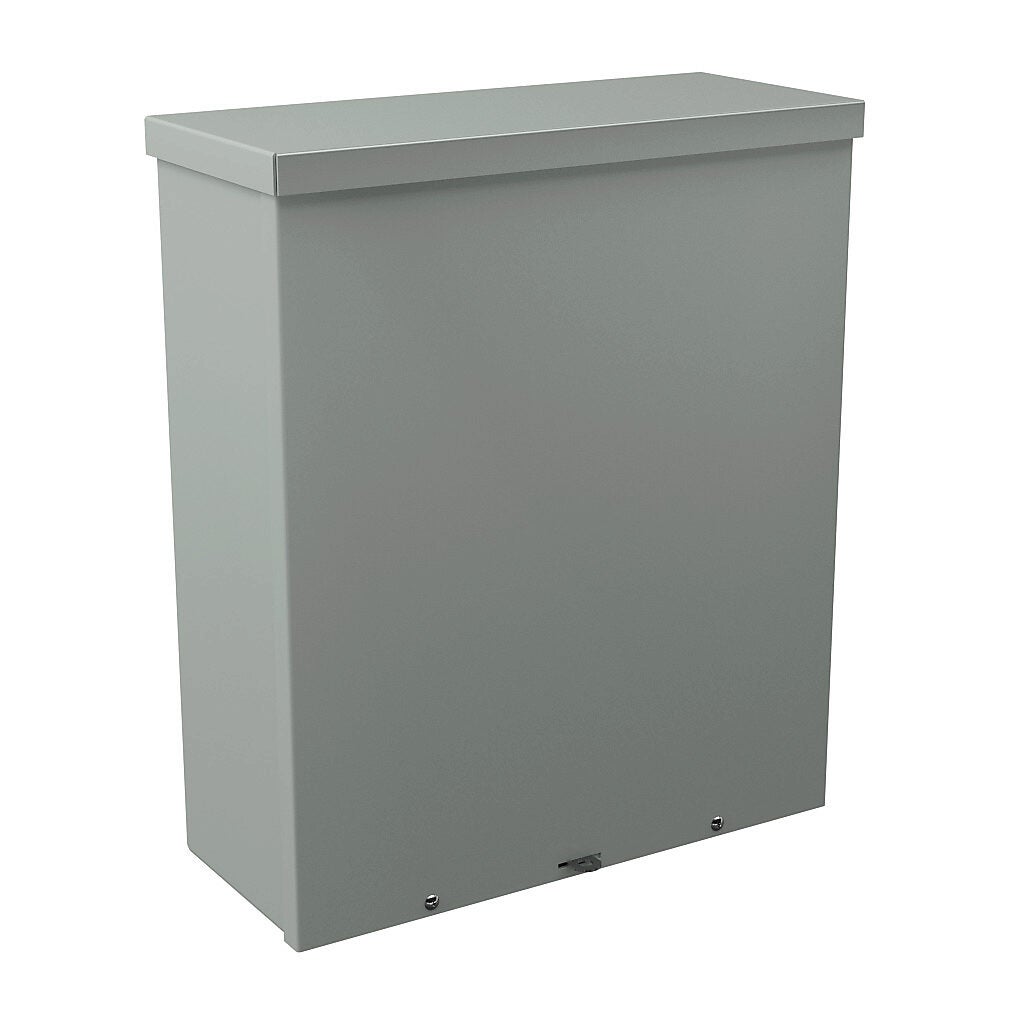

Wiegmann RSC151806 NEMA 3R Wall Mount Enclosure 18 x 15 x 6 in

Product Description

Wiegmann RSC151806 is a NEMA 3R wall-mount electrical enclosure constructed from 16 gauge carbon steel with an ANSI 61 polyester powder coat finish. The enclosure measures 18 in H x 15 in W x 6 in D (usable opening depth 5.88 in) and provides rainproof protection for wiring and junctions. It has a screw-on solid cover with padlockable hasp and padlockable handle, embossed mounting holes, standard knockouts, and is UL/CSA listed. Includes mounting screws.

• NEMA 3R rating for rainproof outdoor protection and indoor protection against dripping water; UL listed and CSA certified
• 16 gauge carbon steel construction with ANSI 61 polyester powder coat; nominal dimensions 18 in H x 15 in W x 6 in D (usable opening depth 5.88 in)
• Screw-on solid cover with padlockable hasp and padlockable handle; embossed mounting holes and standard bottom knockouts; includes mounting screws

Product Highlights

Rainproof wall-mount enclosure, 18 x 15 x 6 in (1620 cu.in capacity); 16 ga carbon steel with ANSI 61 finish; screw-on padlockable cover; UL and CSA listed

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RSC151806
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• MPN: RSC151806
• Series: RSC
• Product Type: Wall mount enclosure
• Enclosure Rating: NEMA 3R
• Material: Carbon steel
• Metal Gauge: 16 ga
• Finish: ANSI 61 polyester powder coat
• Height: 18 in
• Width: 15 in
• Depth: 6 in
• Usable Opening Depth: 5.88 in
• Cubic Capacity: 1620 cu.in
• Mounting Type: Wall (embossed mounting holes)
• Cover Type: Screw-on solid cover
• Closure Method: Padlockable hasp and padlockable handle
• Knockouts: Yes (standard on bottom)
• Includes: Mounting screws
• Weight: 17.5 lb
• Certifications: UL listed, CSA certified (cULus)
• Country of Origin: United States
