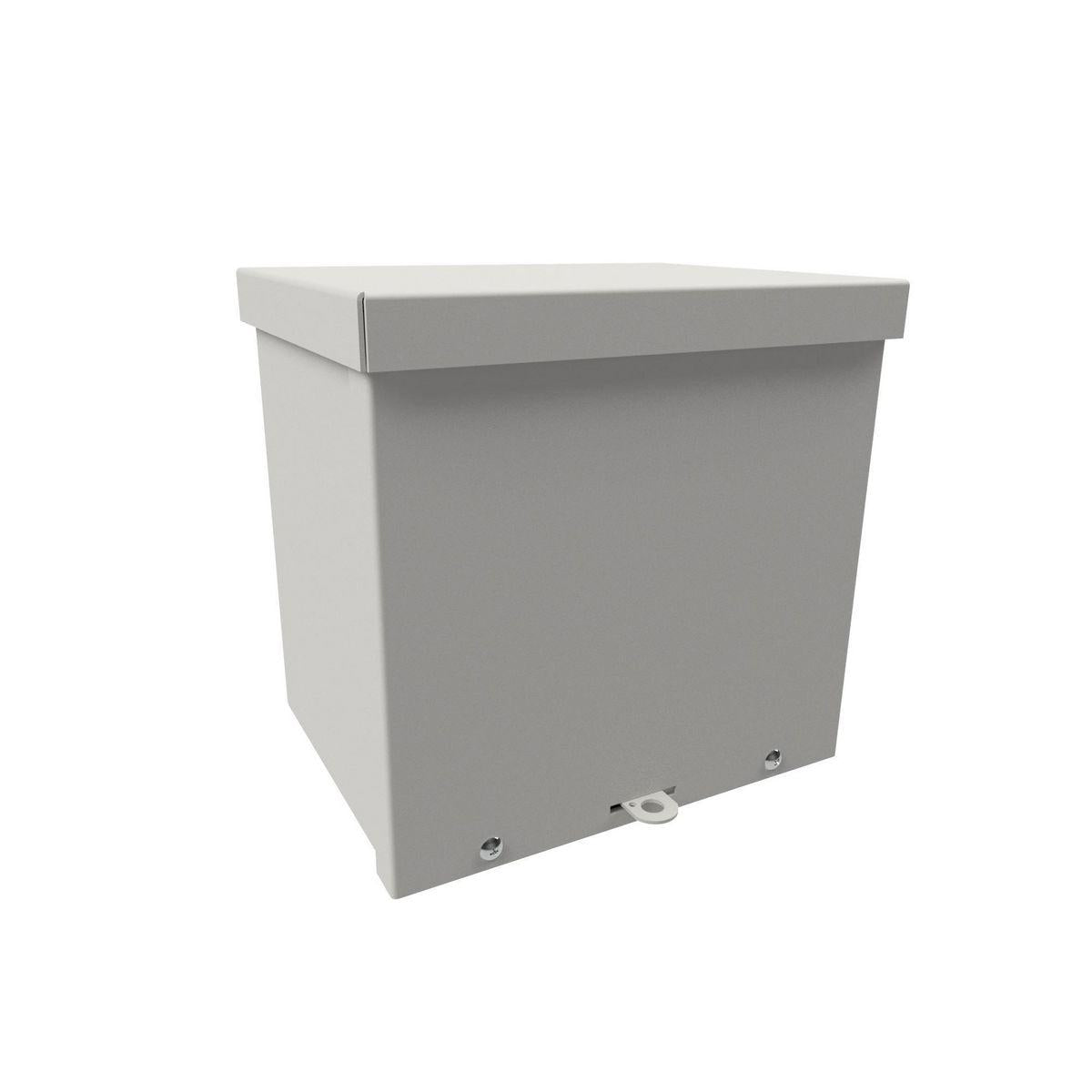

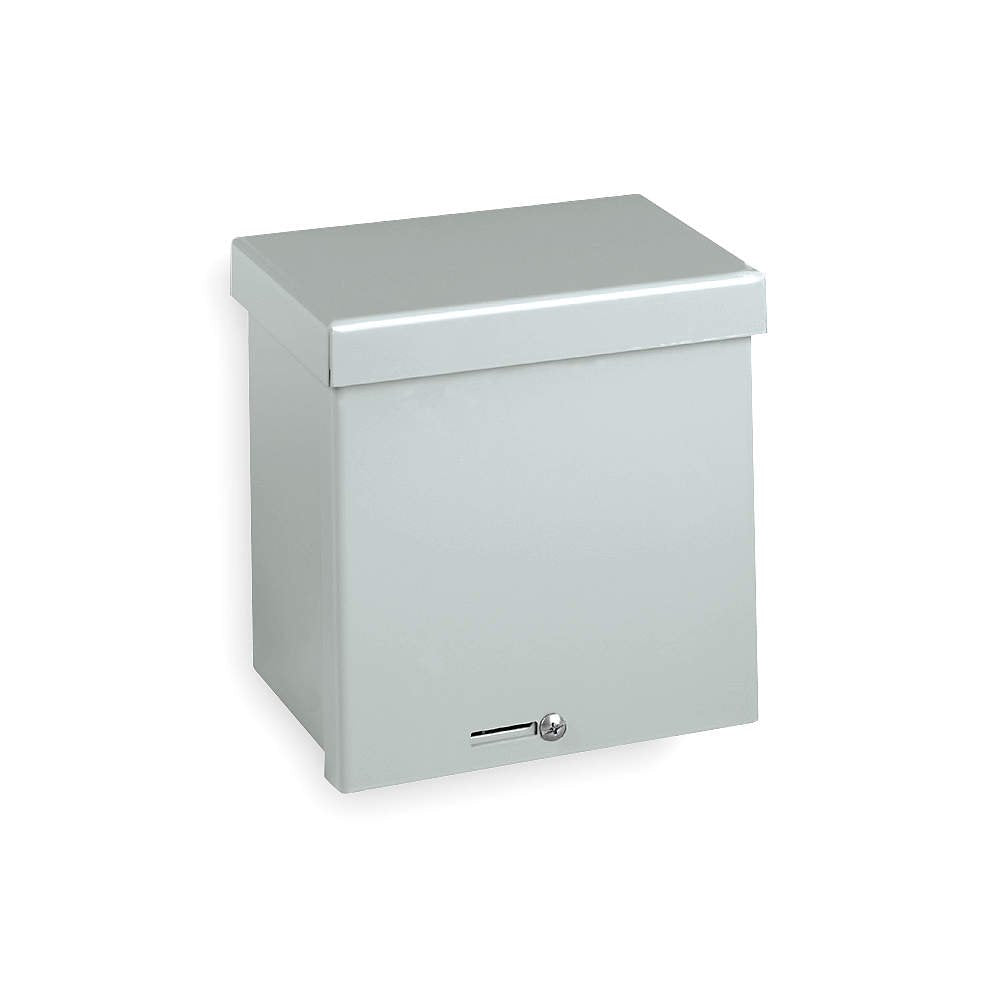

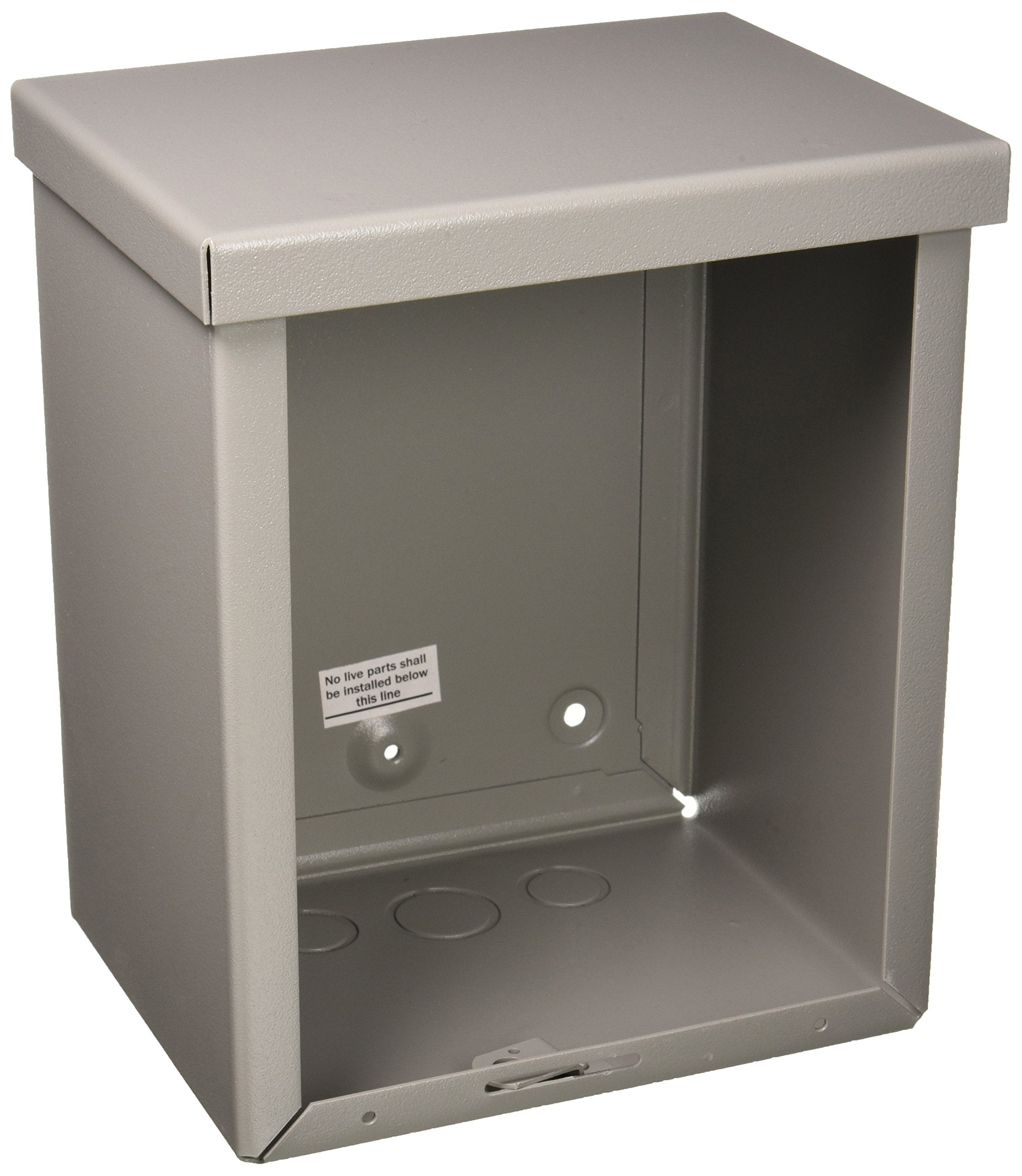

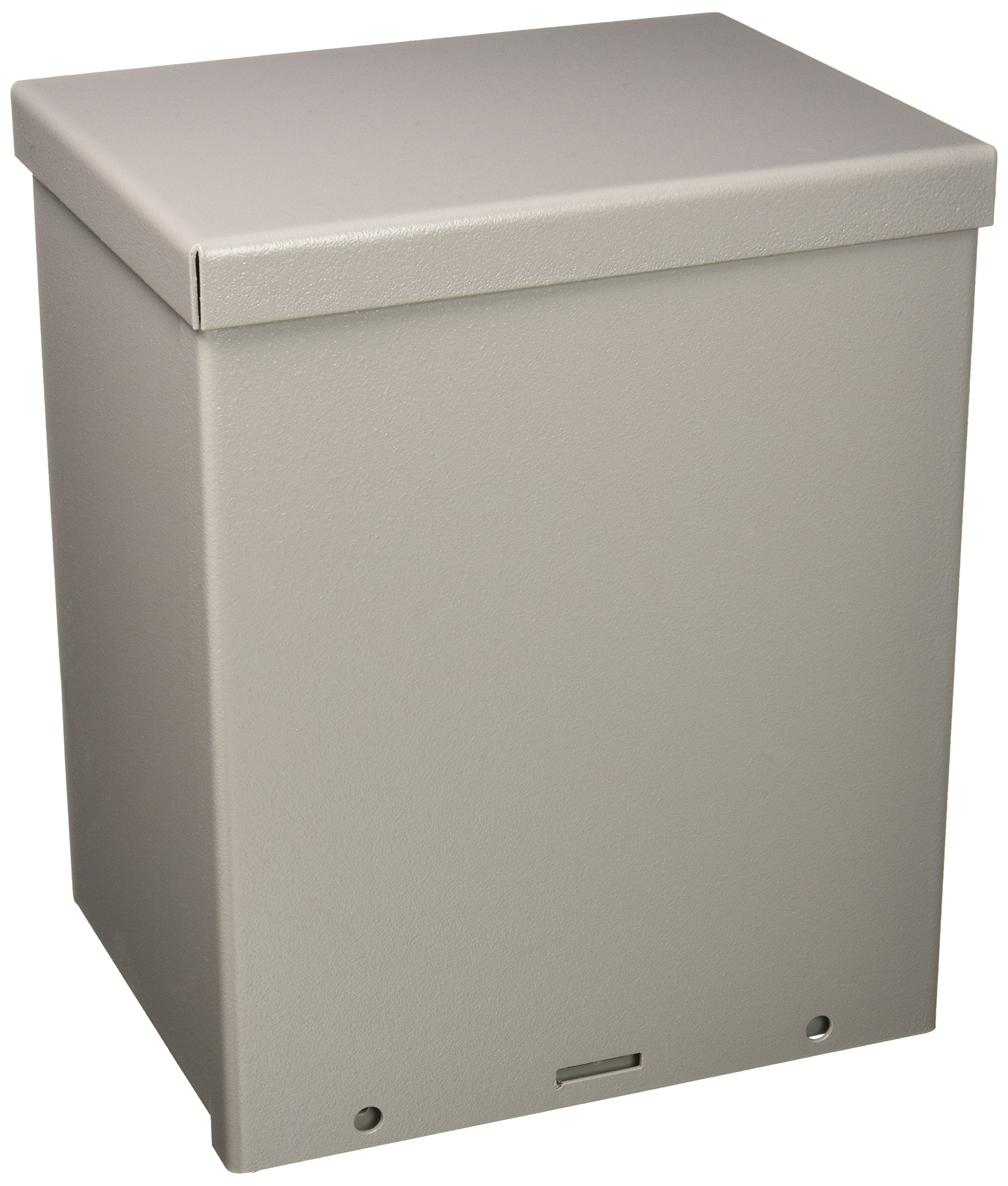

Wiegmann RSC081006 N3R Screw-Cover Wall-Mount 8X10X6 Carbon Steel

Product Description

The WIEGMANN RSC081006 N3R screw-cover wall-mount enclosure is constructed from carbon steel and measures 8x10x6 inches. Designed for use as wiring and junction boxes, it provides protection against rain, sleet, snow, and dripping water, suitable for both indoor and outdoor applications. The enclosure features knockouts and a slip-on reversible cover secured with screws.

• Constructed from 16 gauge carbon steel.
• Features knockouts on the bottom.
• Finished with ANSI 61 gray polyester powder.

Product Highlights

This Wiegmann enclosure offers robust protection for electrical components in various environments, featuring a padlockable hasp for added security.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RSC081006
• Country of Origin: United States

Technical Specifications

• Basic Material: Metallic
• Includes: Screws
• Series: RSC
• Enclosure Cover Type: Screw On
• Finish: ANSI 61 Polyester Powder
• NEMA Rating: 3R
• Metal Gauge: 16
• Material: Carbon Steel
• Knockouts / No Knockouts: Knockouts
• Mounting: Wall
• Enclosure Cover Features: Padlockable Handle
• Standards: UL Listed, CSA Certified
• Usable Opening Depth: 6.00"
• Width: 8.00"
• Item: Junction Box Enclosure
• Height: 10.00"
• Depth: 6.00"
• Standard: UL, CSA
• Construction: Spot welded
• Mounting Type: Embossed Mounting Holes
• Usable Opening Depth [Specifications]: 5.88 in
• Nominal Enclosure Width [Specifications]: 8 in
• Item - Electrical Enclosure [Specifications]: Enclosure
• Manufacturer: Wiegmann
• Manufacturer #: RSC081006
• Catalog Number: RSC081006
• Finish Type: Textured
• Listings: UL, CSA
• Cable Entry: Knock Outs
• Certified Listed: cULus
• UL Listed: Yes
• Capacity: 480 cu.in
• Mounting type: Wall Mount
• Type: Rainproof
• Application: Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
