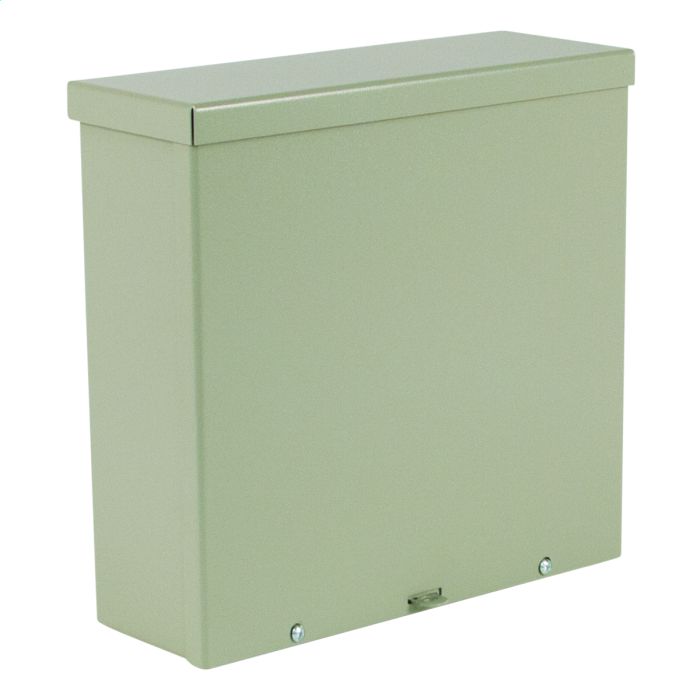

Wiegmann RSC060604NK N3R Screw-Cover Wall-Mount No Knockouts 6x6x4

Product Description

The WIEGMANN RSC060604NK enclosure is designed for use as a wiring box and junction box. Constructed from 16 gauge carbon steel, it provides protection against rain, sleet, and snow in outdoor applications, and dripping water indoors. The slip-on reversible cover is secured with screws. A hasp is provided for padlocking or a meter seal.

• Bodies and doors fabricated from 16 gauge carbon steel
• Drip shield top and smooth seamless sides and front
• No gasketing is required, hasp for padlocking or meter seal is provided

Product Highlights

This carbon steel enclosure is suitable for general purpose applications, protecting against dirt, dust, oil, and water, making it ideal for both indoor and outdoor use.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RSC060604NK

Technical Specifications

• Application: Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
• Catalog Number: RSC060604NK
• Color: Ansi-61 Gray Textured
• Construction: Spot Welded
• Cover Type: Screw Cover
• EU RoHS Indicator: No
• Finish Type: Textured
• Knockouts: No
• Listings: UL, CSA
• Material: Carbon Steel
• Mounting Type: Embossed Mounting Holes
• Type: Enclosure
• UPC Code: 786725860883
• Cubic Capacity: 144 cu.in
• Depth: 4 in
• Height: 6 in
• Width: 6 in
• Certified Listed: cULus
• Nema Rating: 3R, NEMA 1
• Series: RSC
• Lock: Padlock
• Capacity: 144 cu-in
• Mounting: Wall Mount
• MPN: RSC060604NK
• Brand: WIEGMANN
• Sub Brand: RSC Series
• Product Series: RSC
• Family Series: Wiegmann Enclosures, RSC Series
• Description: N3R Screw-Cover Wall-Mount No Knockouts 6X6X4 Carbon Steel - Gray
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Lift-Off Cover
• Window/Clear Cover: No
• Latching Mechanism: Padlockable Hasp with Screws
• Panel Included: No
• Nominal Height: 6 "
• Nominal Width: 6 "
• Nominal Depth: 4 "
• Approvals: CSA, UL
• Finish: Textured
