Wiegmann RHC121206 Junction Box (12 x 12 x 6 in) 50950

Brand: WIEGMANN
SKU: RHC121206
Availability: In Stock

Ships same day if ordered by 12 pm
$191.65
$191.65
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

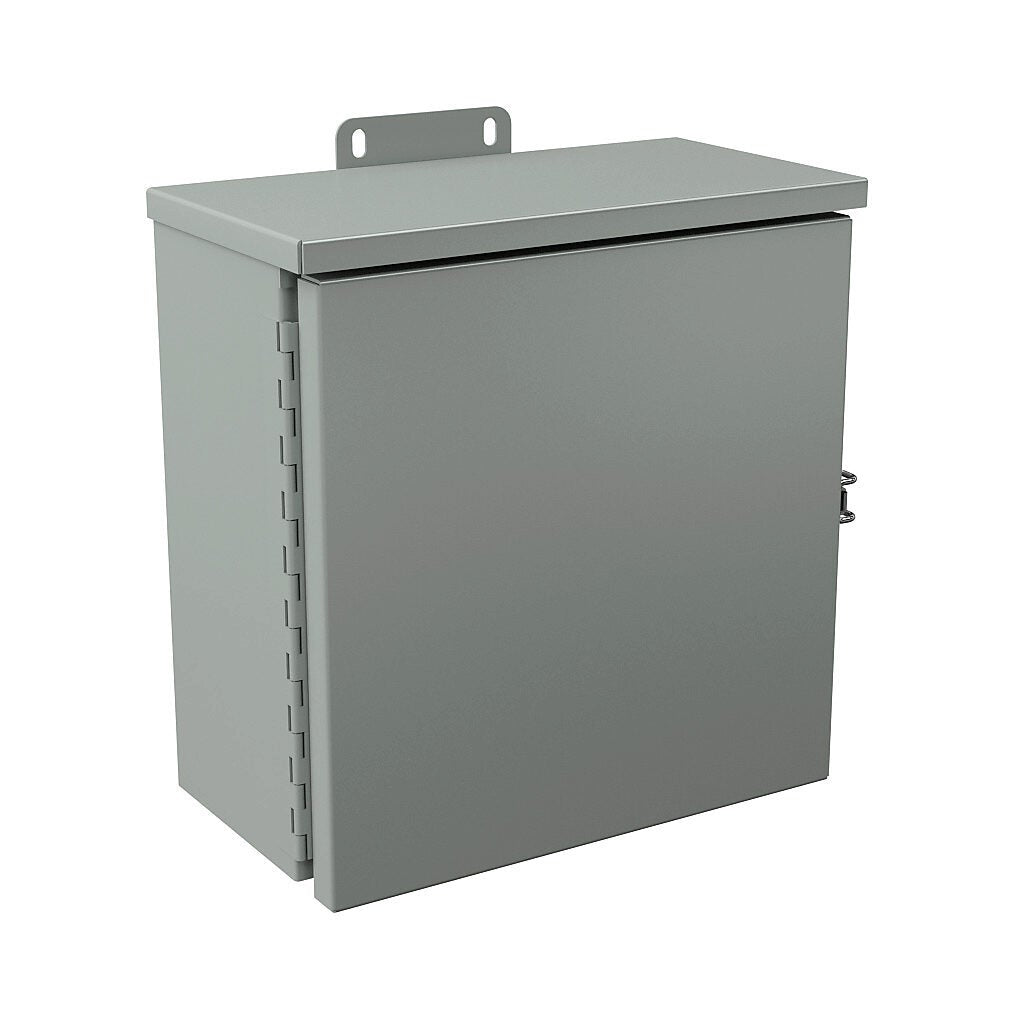

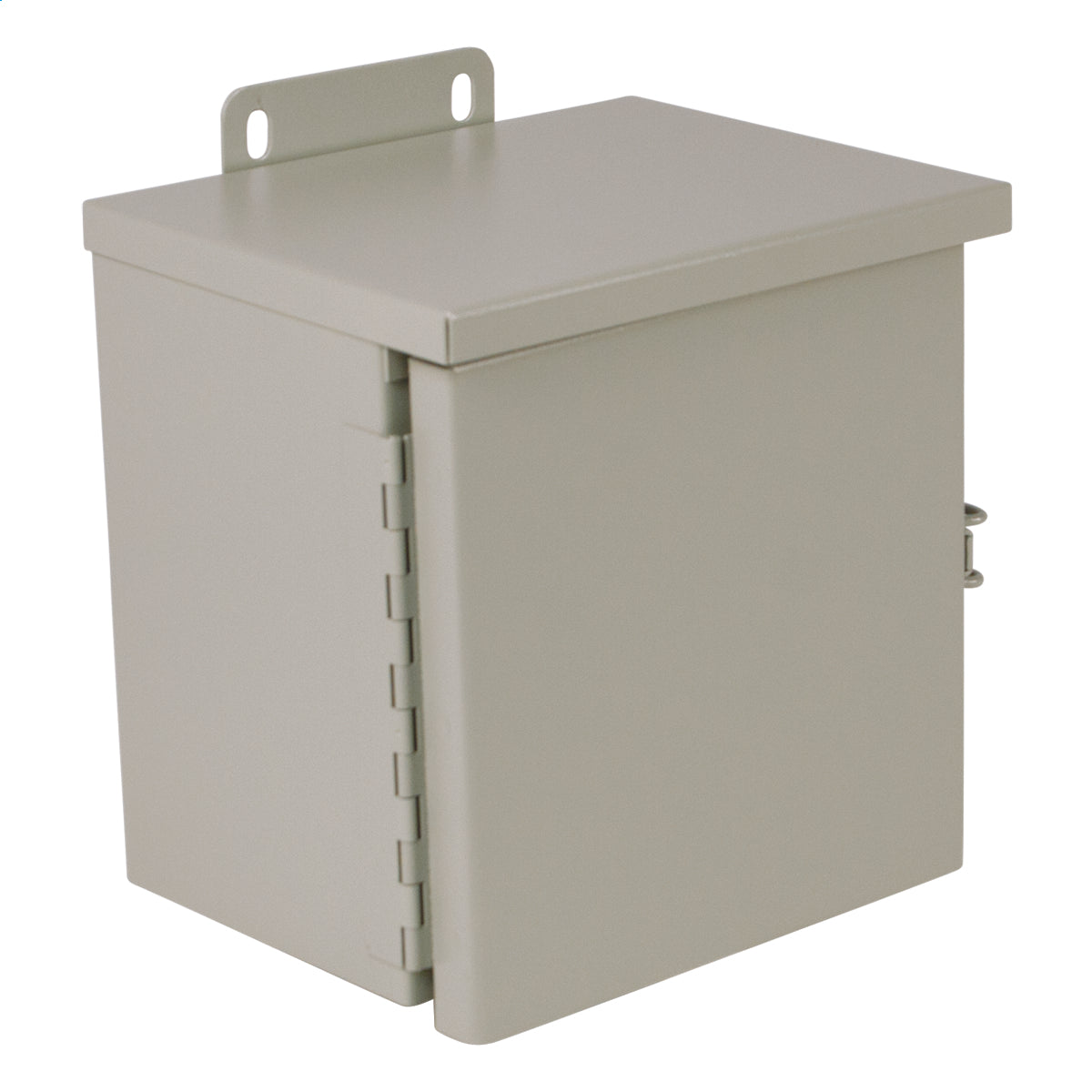

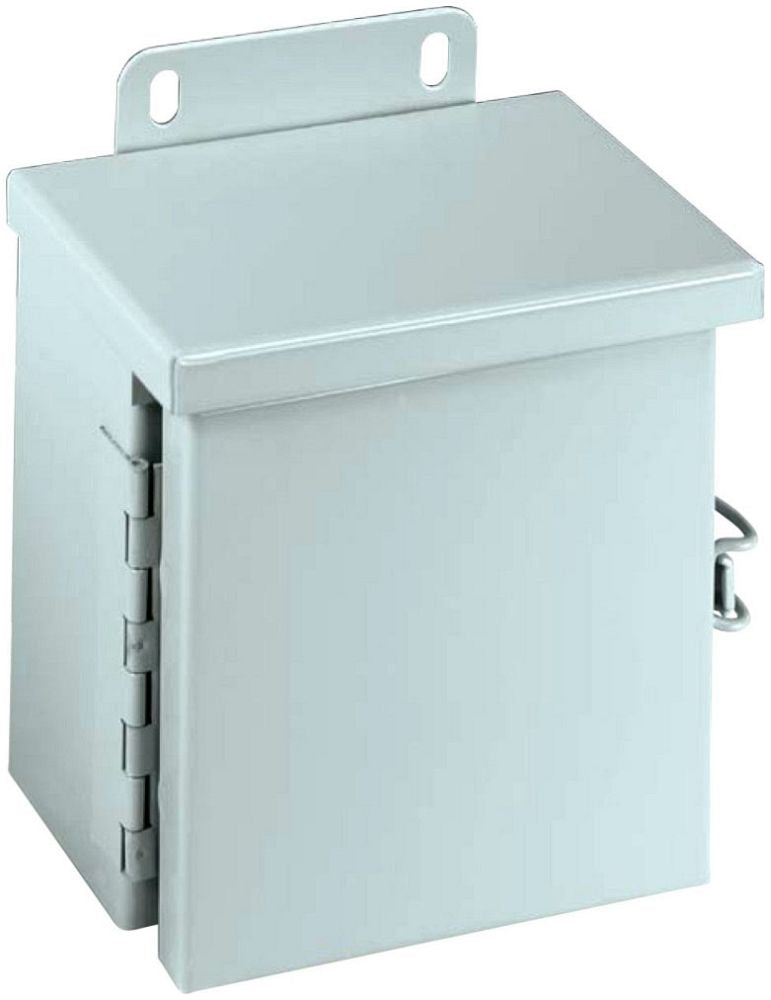

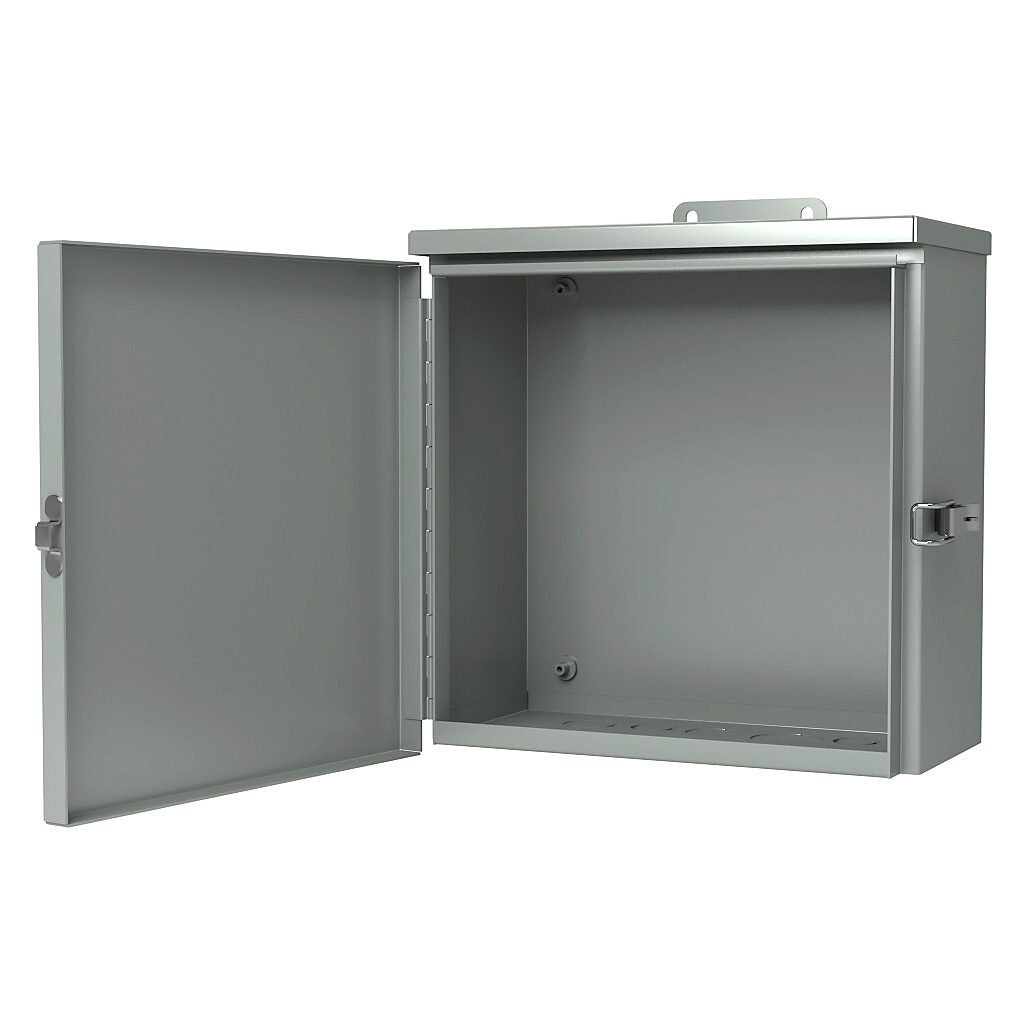

Wiegmann RHC121206 is a NEMA 3R hinged-cover junction box measuring 12 x 12 x 6 inches, constructed from 16 gauge carbon steel for wall mounting. It features a continuous hinge with a stainless steel hinge pin, a padlockable draw latch, five bottom knockouts for conduit entry, and grounding provisions. The enclosure has a polyester powder coat over a phosphatized surface and is UL 50 and CSA listed for indoor/outdoor service.

  • Continuous hinge with stainless steel hinge pin and padlockable draw latch for secure closure
  • 16 gauge carbon steel construction with polyester powder coat over phosphatized surface (ANSI 61 finish)
  • Five bottom knockouts for conduit entry and grounding provisions; wall-mount design

Product Highlights

NEMA 3R wall-mount carbon steel junction box, 12 x 12 x 6 in, continuous hinge, padlockable latch, five bottom knockouts, UL 50 and CSA listed.

Product Information

Standard Information

  • Brand: WIEGMANN
  • Manufacturer Part Number: RHC121206
  • Country of Origin: United States
Technical Specifications
Brand
Wiegmann
MPN
RHC121206
Series
RHC
Product Type
Unflanged, Small enclosure / Junction box
NEMA Rating
3R
Material
Carbon steel
Material Gauge
16 gauge
Finish
Polyester powder coated over phosphatized surface (ANSI 61)
Mounting Type
Wall
Cover Type
Hinged cover (continuous hinge)
Closure
Padlockable draw latch
Hinge
Continuous hinge; carbon steel hinge with stainless steel hinge pin
Knockouts
Bottom
Number Of Knockouts
5
Knockout Sizes
(2) 1/2"-3/4" concentric bottom; (1) 3/4"-1" concentric bottom; (1) 1" solid; (1) 1-1/4" solid bottom
Grounding Provisions
Provided
Dimensions (H x W x D)
12.06 in x 12 in x 6.13 in
Height
12.06 in
Width
12 in
Depth
6.13 in
Usable Opening Depth
5.88 in
Cubic Capacity
864 cu.in
Service Type
Indoor/Outdoor
Approvals / Certifications
UL 50; CSA (cULus listed)
Finish Standard / Color
ANSI 61 gray (textured) polyester finish
Construction
Spot welded; bodies and doors fabricated from 16 gauge carbon steel
External Mounting Plates
Top and bottom
Weldnuts
Provided for optional back panels
Panel Compatibility
Panel number N1P1212 / N1P1212PP; panel opening 10.25 in W x 10.25 in H
UPC
786725406456
Country of Origin
United States
Service Application
Wiring boxes and junction boxes; protection against rain, sleet, snow, or indoor dripping water
