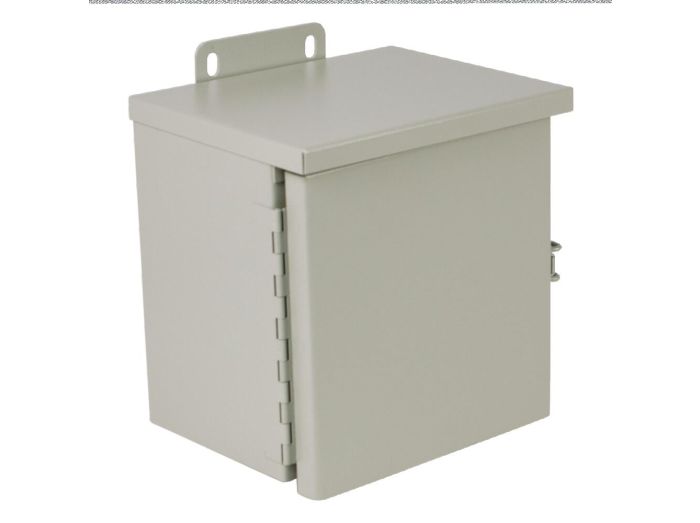

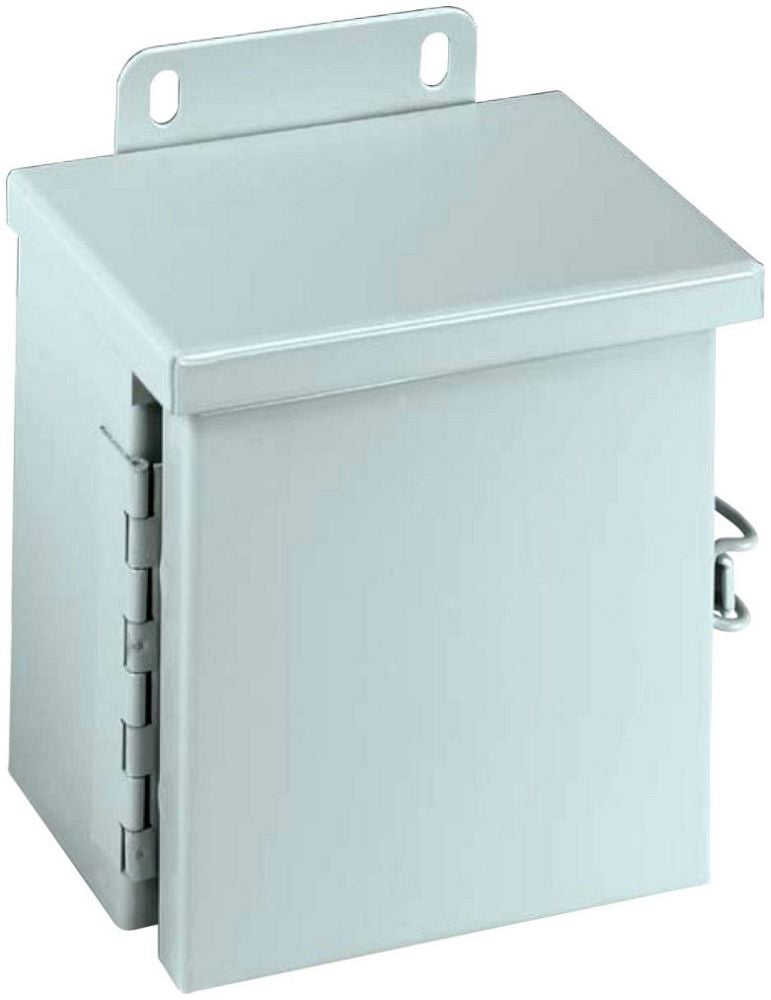

Wiegmann RHC101206 NEMA 3R Wall Mount Enclosure (12.0 in H x 10.0 in W x 6.0 in D) RHC101206

Product Description

Wiegmann RHC101206 is a NEMA 3R wall-mount enclosure constructed from 16 gauge carbon steel with an ANSI 61 polyester powder finish. It provides rainproof protection for wiring and junction installations and includes a hinged solid cover with a padlockable draw latch, external mounting plates for wall installation, and bottom knockouts for cable entry. The enclosure offers a usable opening depth of 5.88 in and accommodates interior panel 3A937 for equipment mounting.

• NEMA 3R rating for outdoor protection against rain, sleet, and snow; listed to cULus with additional UL and CSA listings reported.
• 16 gauge carbon steel construction with ANSI 61 polyester powder finish, hinged cover and continuous hinge with stainless steel hinge pin.
• Padlockable draw latch, external top and bottom mounting plates, bottom knockouts for cable entry, usable opening depth 5.88 in.

Product Highlights

NEMA 3R, 16 ga carbon steel wall-mount enclosure with hinged padlockable cover, bottom knockouts, and external mounting plates.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RHC101206
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: RHC101206
• Series: RHC
• Product Type: Wall-mount enclosure
• NEMA Rating: 3R
• Material: Carbon steel
• Material Gauge: 16 gauge
• Finish: ANSI 61 polyester powder
• Dimensions (Nominal H x W x D): 12 in x 10 in x 6 in
• Actual Dimensions (H x W x D): 12.06 in x 10.00 in x 6.13 in
• Usable Opening Depth: 5.88 in
• Cover Type: Hinged solid cover
• Hinge: Continuous hinge with stainless steel hinge pin
• Closure Method: Padlockable draw latch
• Mounting Type: Wall mount; external mounting plates (top and bottom)
• Knockouts: (3) bottom knockouts; (2) 1/2"-3/4" concentric, (1) 3/4"-1" concentric
• Interior Panel: 3A937
• Panel Number: N1P1012 / N1P1012PP
• Panel Size: 8.25 in W x 10.25 in H
• Construction: Spot welded
• Cubic Capacity: 720 cu. in.
• Net Weight: 11 lb
• Certifications: UL, cULus, CSA, UL 50 (as reported across sources)
• Application: Wiring and junction boxes for indoor/outdoor protection against dripping water, rain, sleet, and snow
• Country of Origin: United States
• Series Category: NEMA Types 3 & 3R metallic enclosures
