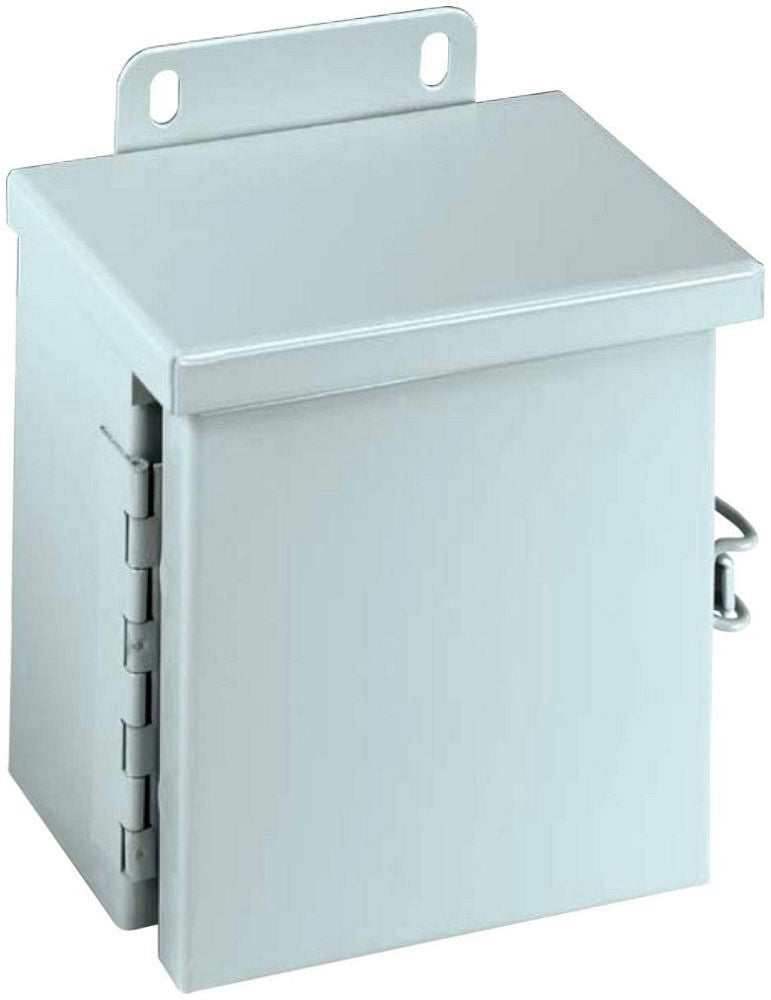

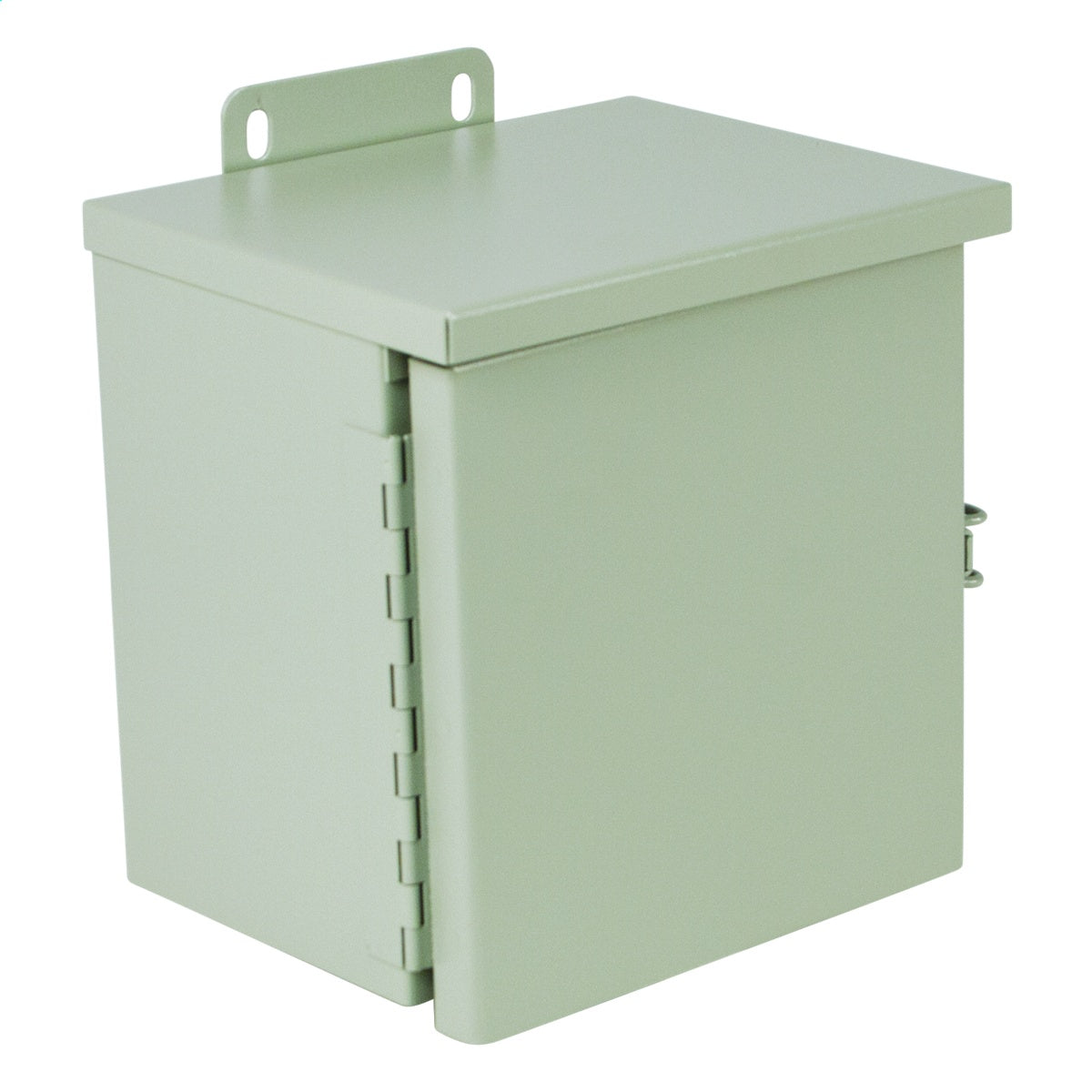

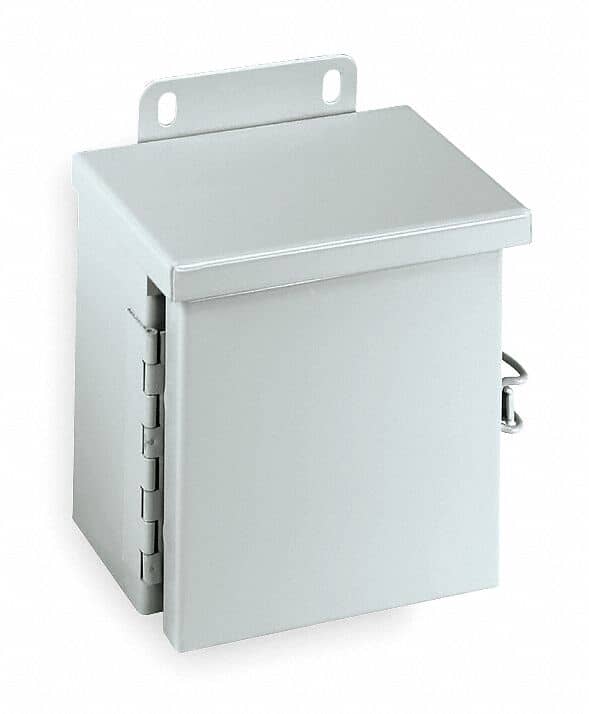

Wiegmann RHC081006 NEMA 3R Wall Mount Enclosure (10.0 in H x 8.0 in W x 6.0 in D)

Product Description

The Wiegmann RHC081006 is a NEMA 3R wall-mount enclosure constructed from 16 ga carbon steel with an ANSI 61 polyester powder finish. It measures 10.0 in H x 8.0 in W x 6.0 in D, provides approximately 480 cu.in capacity with a usable opening depth of 5.88 in, and includes interior panel 3A904. The continuous-hinged solid cover uses a padlockable draw latch; standard bottom knockouts and external mounting plates are provided. cULus listed. Provides protection for electrical wiring and junctions against rain, sleet, snow, and dripping water.

• 16 gauge carbon steel construction with ANSI 61 polyester powder finish; series RHC
• Dimensions: 10.0 in H x 8.0 in W x 6.0 in D; capacity 480 cu.in; usable opening depth 5.88 in; interior panel 3A904
• Continuous-hinged solid cover with padlockable draw latch, standard bottom knockouts, external mounting plates; cULus listed

Product Highlights

NEMA 3R carbon steel wall-mount enclosure, 8 x 10 x 6 in, continuous-hinged cover with padlockable latch, 480 cu.in capacity

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RHC081006
• Country of Origin: United States
