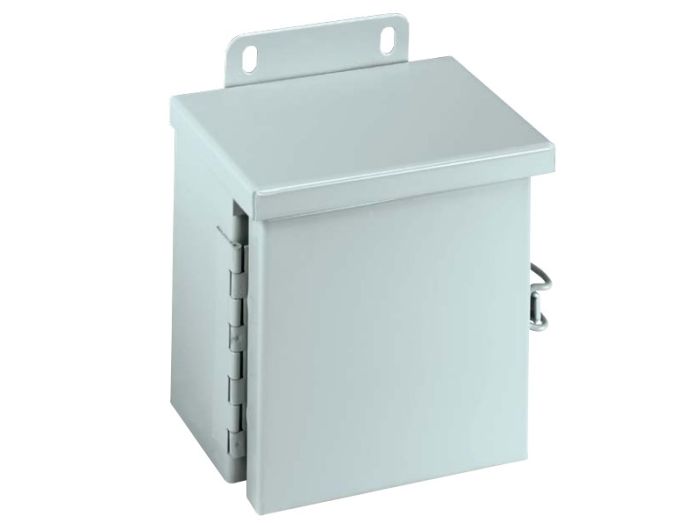

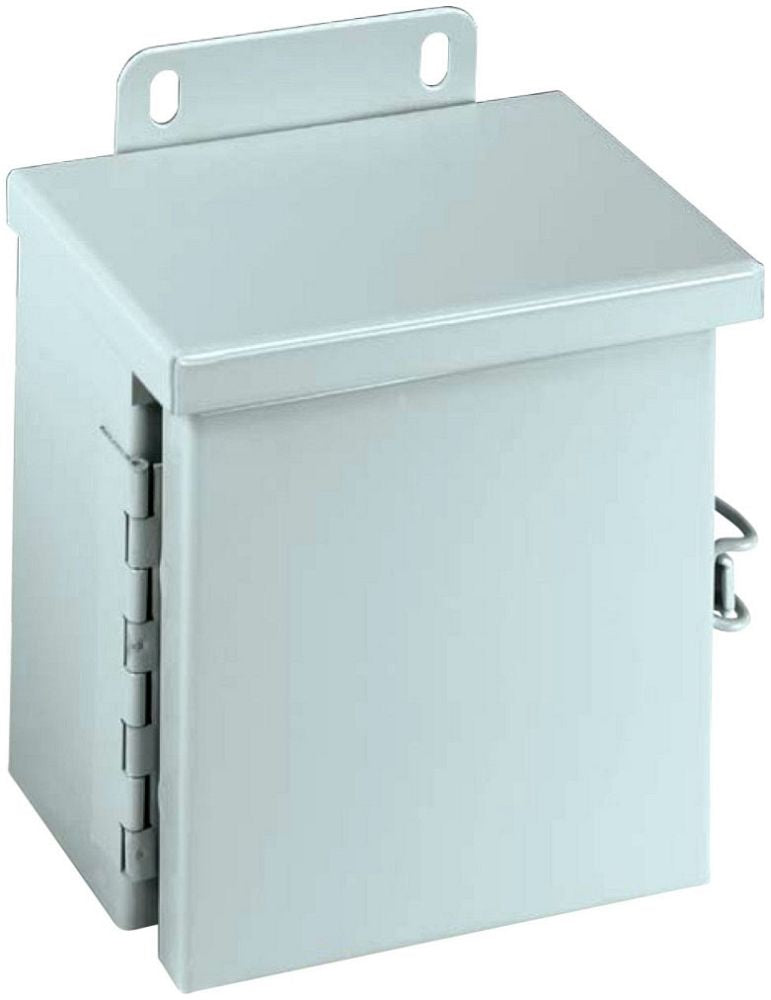

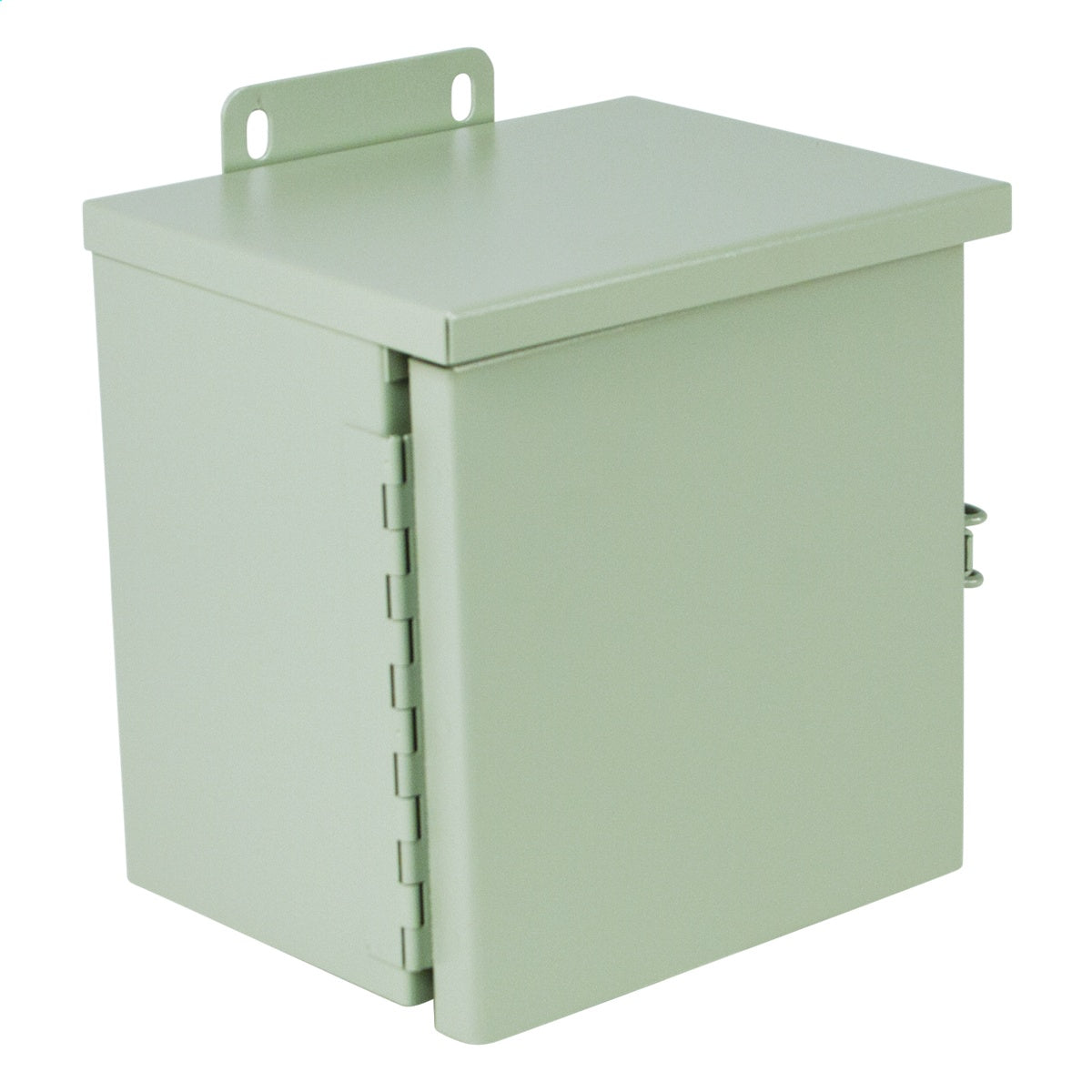

Wiegmann RHC080806 NEMA 3R 8.0 in H x 8.0 in W x 6.0 in D Wall Mount Enclosure (8 x 8 x 6 in)

Product Description

Wiegmann RHC080806 is a NEMA 3R wall-mount enclosure constructed from 16 gauge carbon steel with an ANSI 61 polyester powder finish. The enclosure measures nominally 8 in H x 8 in W x 6 in D, provides 384 cu.in of internal capacity, and includes a hinged solid cover with a padlockable draw latch. It features external mounting plates, knockouts for cable entry, and cULus listing for electrical installations.

• 16 gauge carbon steel construction with ANSI 61 polyester powder finish
• Nominal dimensions 8 in H x 8 in W x 6 in D; usable opening depth 5.88 in; capacity 384 cu.in
• Hinged solid cover with padlockable draw latch, external mounting plates, and bottom knockouts

Product Highlights

NEMA 3R rainproof wall-mount enclosure; 16 ga carbon steel; hinged padlockable cover; external mounting plates; bottom knockouts; cULus listed.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: RHC080806
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: RHC080806
• Series: RHC
• Enclosure Type: Wall mount enclosure
• NEMA Rating: 3R
• Material: Carbon steel
• Metal Gauge: 16 ga
• Finish: ANSI 61 polyester powder
• Height: 8 in
• Width: 8 in
• Depth: 6 in
• Usable Opening Depth: 5.88 in
• Internal Capacity: 384 cu.in
• Weight: 8 lb
• Mounting Type: Wall
• Mounting: External mounting plates (top and bottom)
• Knockouts: Yes (bottom knockouts)
• Enclosure Cover Type: Hinged solid cover
• Closure Method: Padlockable draw latch
• Interior Panel: 6C754
• Grounding Provisions: Provided
• Panel Size: 6.25 in W x 6.25 in H
• Standards / Certifications: cULus, UL, CSA
• Country of Origin: United States
