Wiegmann RHC060604 N3R continuous hinge wall-mount enclosure 6x6x4

Brand: WIEGMANN
SKU: RHC060604
Availability: In Stock

Ships same day if ordered by 12 pm
$97.96
$97.96
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

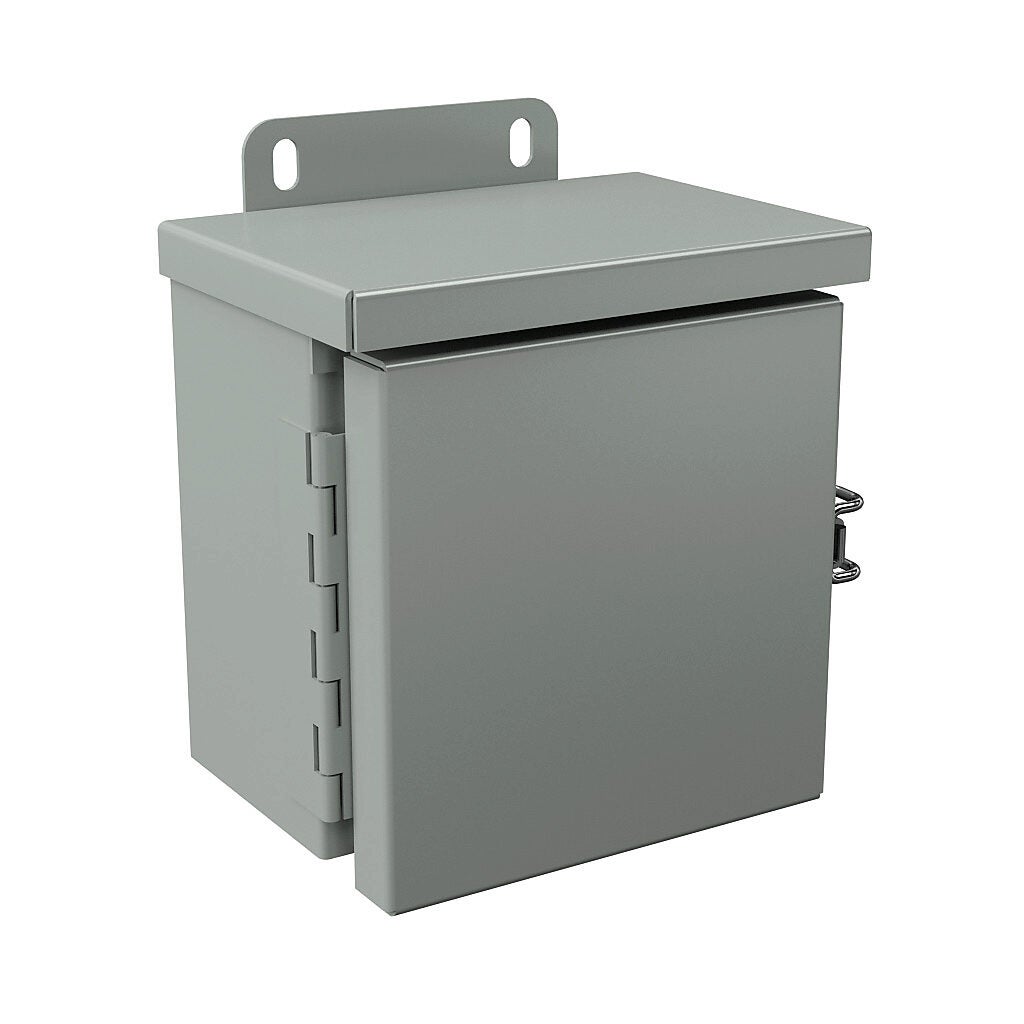

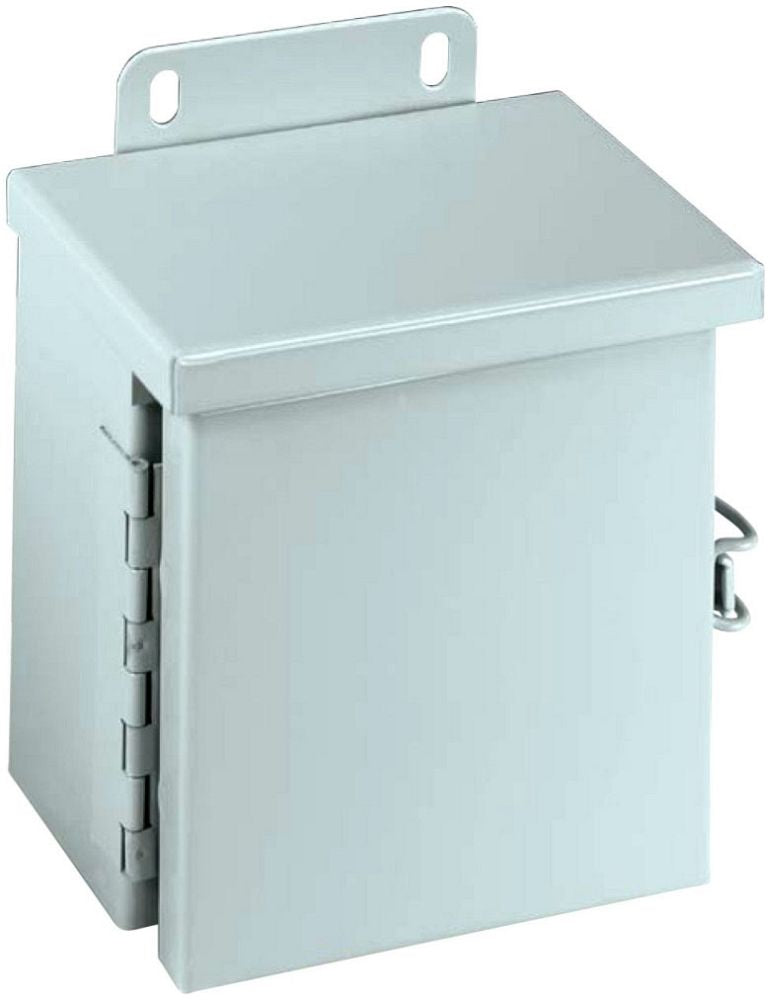

Wiegmann RHC060604 is an N3R continuous-hinge wall-mount enclosure made from carbon steel for wiring and junction box applications. The enclosure is nominally 6 x 6 x 4 inches (actual 6.06 x 6.00 x 4.13 in) with 144 cu.in capacity and spot-welded construction. It is designed to provide NEMA 3R protection against rain, sleet, snow and indoor dripping water and includes knockouts and external mounting plates.

  • 16-gauge carbon steel construction with textured ANSI-61 finish and spot-welded body

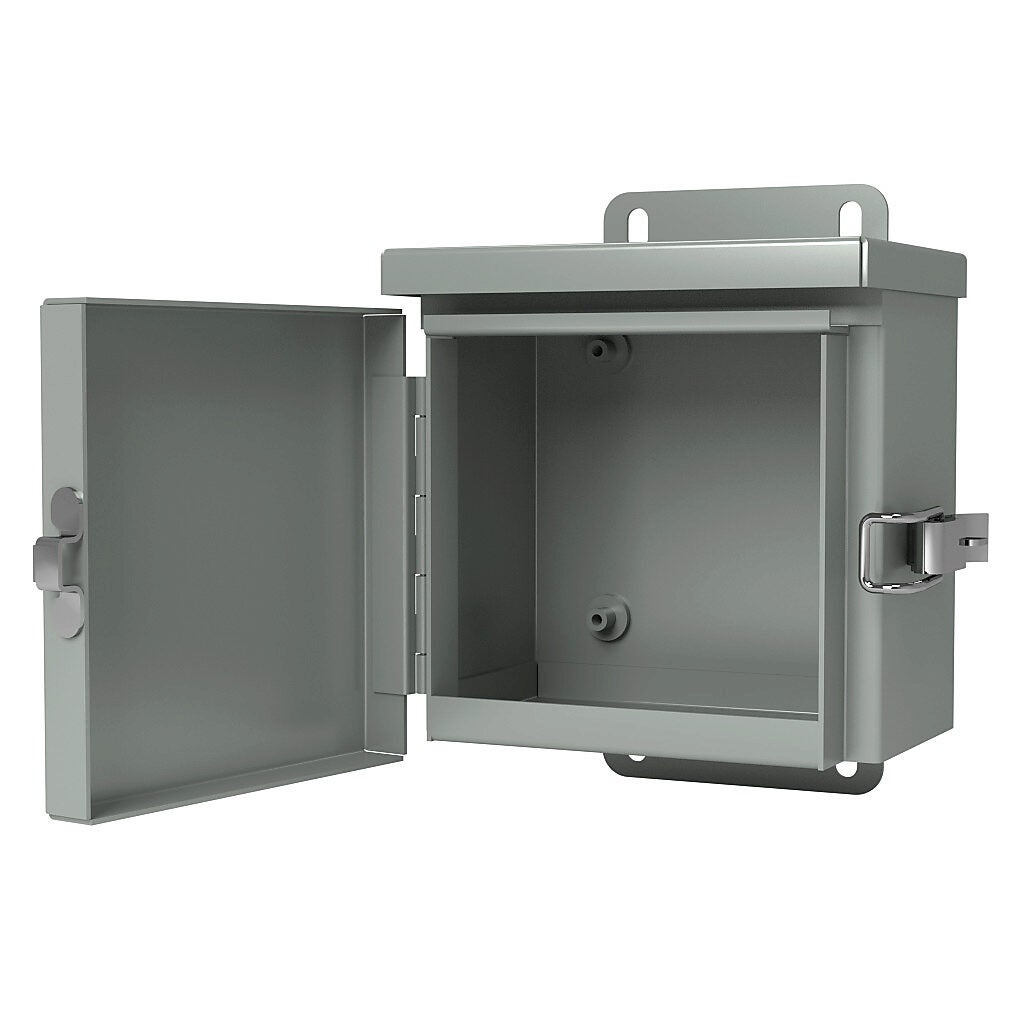

  • Continuous hinge with stainless steel hinge pin and padlockable draw latch; external mounting plates and weldnuts for optional back panels
  • Bottom knockouts for cable entry (three total: two concentric 1/2"-3/4" and one concentric 3/4"-1")

Product Highlights

NEMA 3R wall-mount carbon steel enclosure, 6 x 6 x 4 in (actual 6.06 x 6.00 x 4.13 in), 144 cu.in (nominal), continuous hinge, UL and CSA listed

Product Information

Standard Information

  • Brand: WIEGMANN
  • Manufacturer Part Number: RHC060604
  • Country of Origin: Mexico
Technical Specifications
Brand
Wiegmann
Manufacturer Part Number
RHC060604
Type
Enclosure
Enclosure Rating
NEMA 3R
Mounting Type
Wall mount; external mounting plates (top and bottom)
Material
Carbon steel
Material Gauge
16 gauge
Finish Type
Textured (ANSI 61 gray textured / polyester powder coat over phosphatized surface)
Construction
Spot welded
Cover Type
Hinged cover
Hinge
Continuous hinge (carbon steel) with stainless steel hinge pin
Latch
Padlockable draw latch
Knockouts
Yes
Knockout Location
Bottom
Number of Knockouts
3
Knockout Sizes
Two concentric 1/2"-3/4" (bottom), one concentric 3/4"-1" (bottom)
Nominal Dimensions (HxWxD)
6 x 6 x 4 in
Actual Dimensions (HxWxD)
6.06 x 6.00 x 4.13 in
Cubic Capacity
144 cu.in (nominal, based on 6 x 6 x 4); actual internal volume � 150.23 cu.in (6.06 x 6.00 x 4.13)
Listings/Certifications
UL, CSA, cULus
Applications
Wiring boxes and junction boxes; protection outdoors against rain, sleet, snow and indoors against dripping water
Weldnuts
Provided for mounting optional back panels
Weight
4.4 lb
UPC
786725404155
Country of Origin
United States
Catalog Number
RHC060604
Panel Number
N1P0606 / N1P0606PP
Panel Size
4.25 x 4.25 in
