Wiegmann N1C101004 N1 Hinged Cover 10x10x4

Product Description

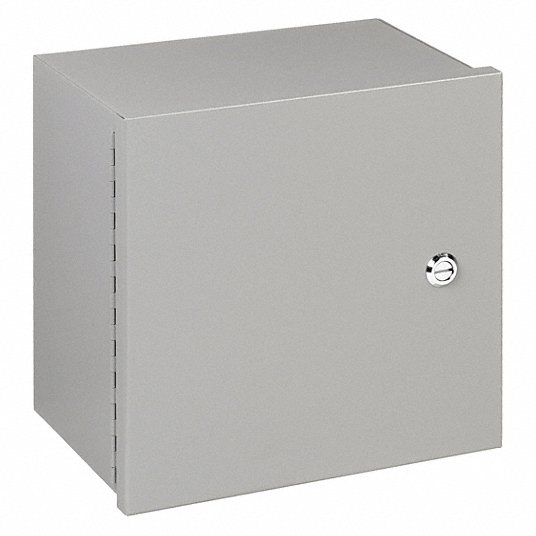

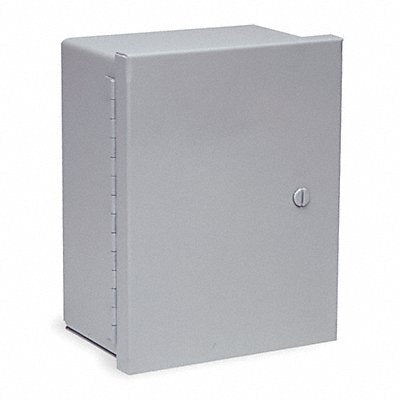

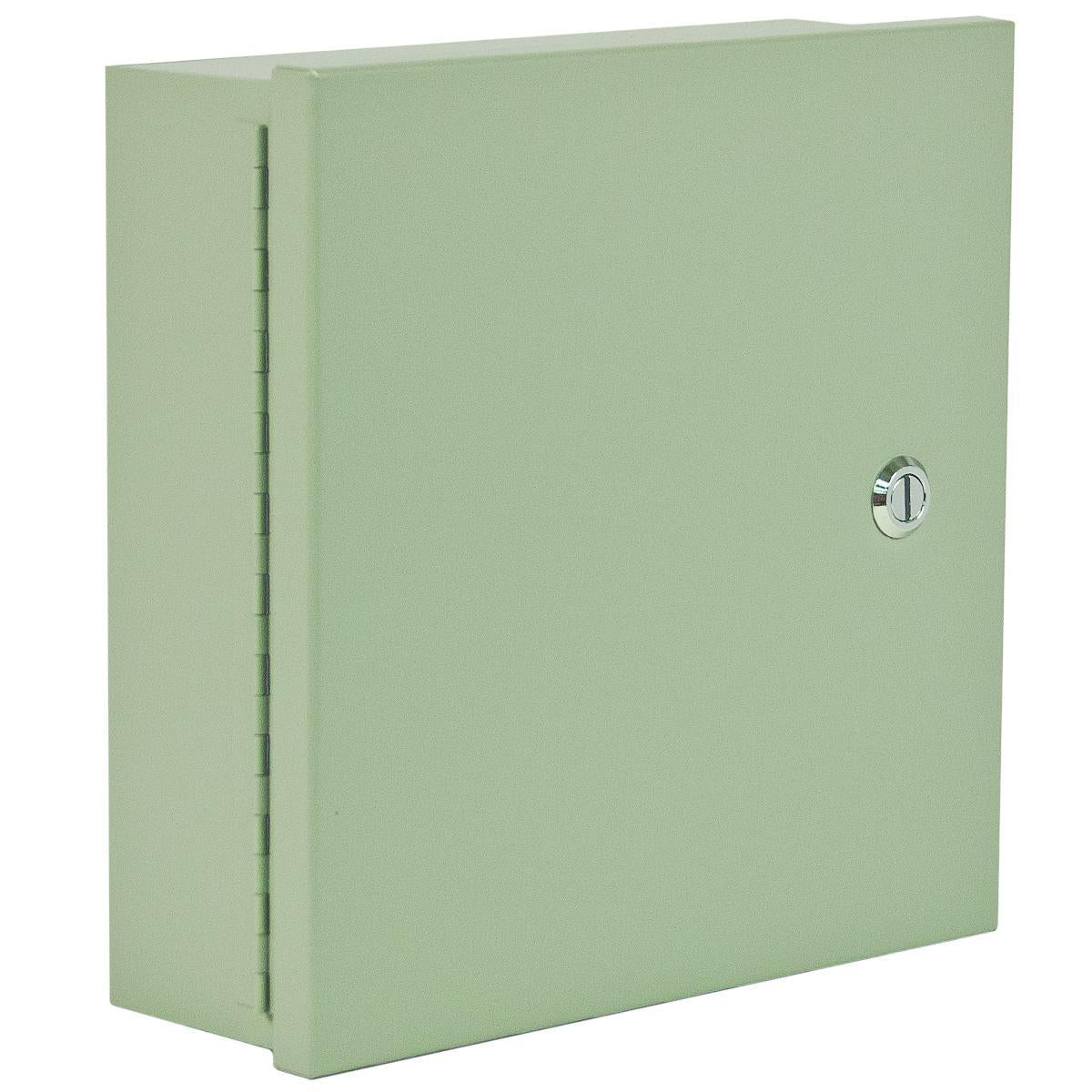

The WIEGMANN N1C101004 N1 Hinged Cover is a carbon steel enclosure with dimensions of 10x10x4 inches. Designed for use as control enclosures and instrument cases in areas not requiring oil-tight and dust-tight specifications. The enclosure features a hinged cover with a 1/4 turn latch and flush mount. It is suitable for wall mounting.

• Constructed from 14 gauge carbon steel.
• Features mounting holes and grounding provisions.
• NEMA 1 rating for indoor use.

Product Highlights

This Wiegmann N1 enclosure provides a secure housing for electrical components, featuring a hinged cover for easy access and a durable carbon steel construction.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: N1C101004
• Country of Origin: United States

Technical Specifications

• Basic Material: Metallic
• Enclosure Cover Type: Hinged
• Finish: ANSI 61 Polyester Powder
• NEMA Rating: 1
• Material: Carbon Steel
• Mounting: Wall
• Standards: UL Listed, CSA Certified
• Metal Gauge: 14
• Width: 10.00"
• Height: 10.00"
• Features: Mounting Holes, Grounding Provisions
• Depth: 4.00"
• Enclosure Cover Features: 1/4 Turn Latch Flush Mount
• Knockouts / No Knockouts: No Knockouts
• Usable Opening Depth: 3.78"
• Series: N1C
• Construction: Seam and spot welded
• Application: Designed for use as control enclosures and instrument cases in areas not requiring oil-tight and dust-tight specifications.
• Catalog Number: N1C101004
• Cover Type: Hinged Cover
• EU RoHS Indicator: Yes
• Finish Type: Textured
• Knockouts: No
• Listings: UL, CSA
• Mounting Type: Mounting Holes
• Type: Enclosure
• UPC: 786725340200
• Body Material Thickness: 14 ga
• Closure Method: 1/4-Turn Latch
• Compatible Panel Model Number: N1P1010; N1P1010G; N1P1010PP
• Cover Closure Type: Hinged
• Cover Material Thickness: 14 ga
• Cover Style: Solid
• Enclosure Material: Steel
• Environment: Indoor
• Nominal Depth: 4 in
• Nominal Height: 10 in
• Nominal Width: 10 in
• Overall Depth: 4 in
• Overall Height: 10 in
• Overall Width: 10 in
• Product Type: Enclosure
• Sub-brand: NEMA 1 Hinged
• UNSPSC: 39121301
• Capacity: 400 cu-in
• Panel Size: 8-1/4 in H x 8-1/4 in W
• Manufacturer Name: Hubbell
• Cubic Capacity: 400 cu.in
