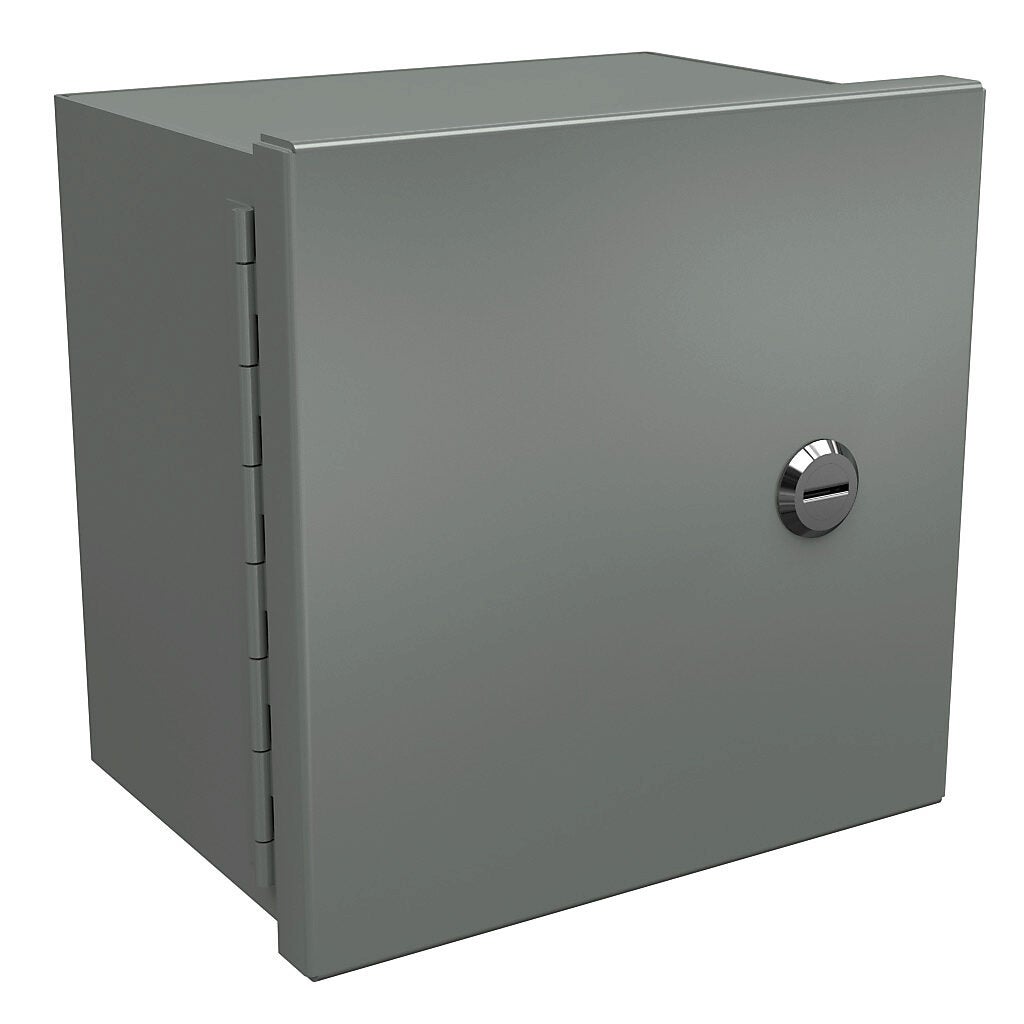

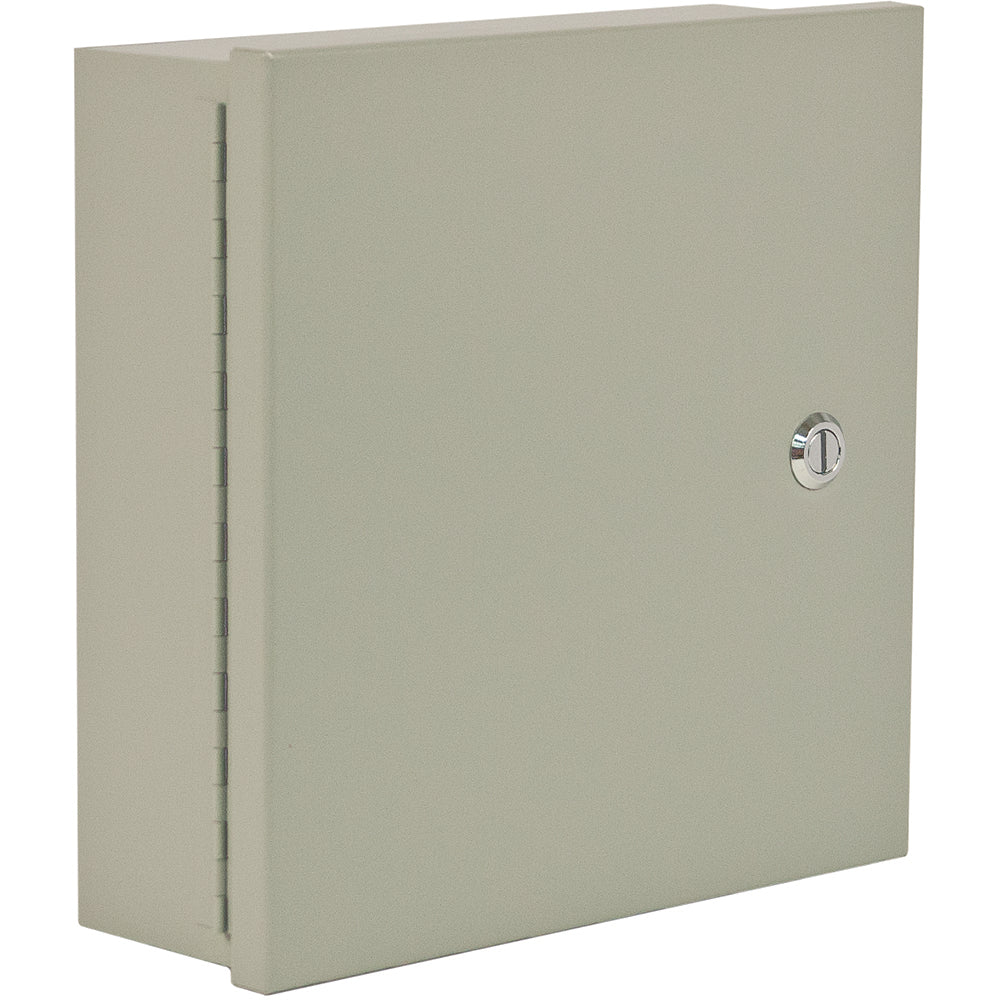

Wiegmann N1C080806 N1 Hinged-Cover (8 x 8 x 6 in)

Product Description

Wiegmann N1C080806 is an N1 series hinged-cover carbon steel electrical enclosure sized 8 x 8 x 6 in for general-purpose indoor control and instrument applications. It is constructed of 14 gauge steel with a continuous hinged cover and a flush-mount quarter-turn latch, includes mounting holes, grounding provisions, and weldnuts for optional back panels. The enclosure is NEMA 1 rated and listed to UL and CSA standards.

• 14 gauge carbon steel construction with textured ANSI 61 powder coat finish; seam and spot welded.

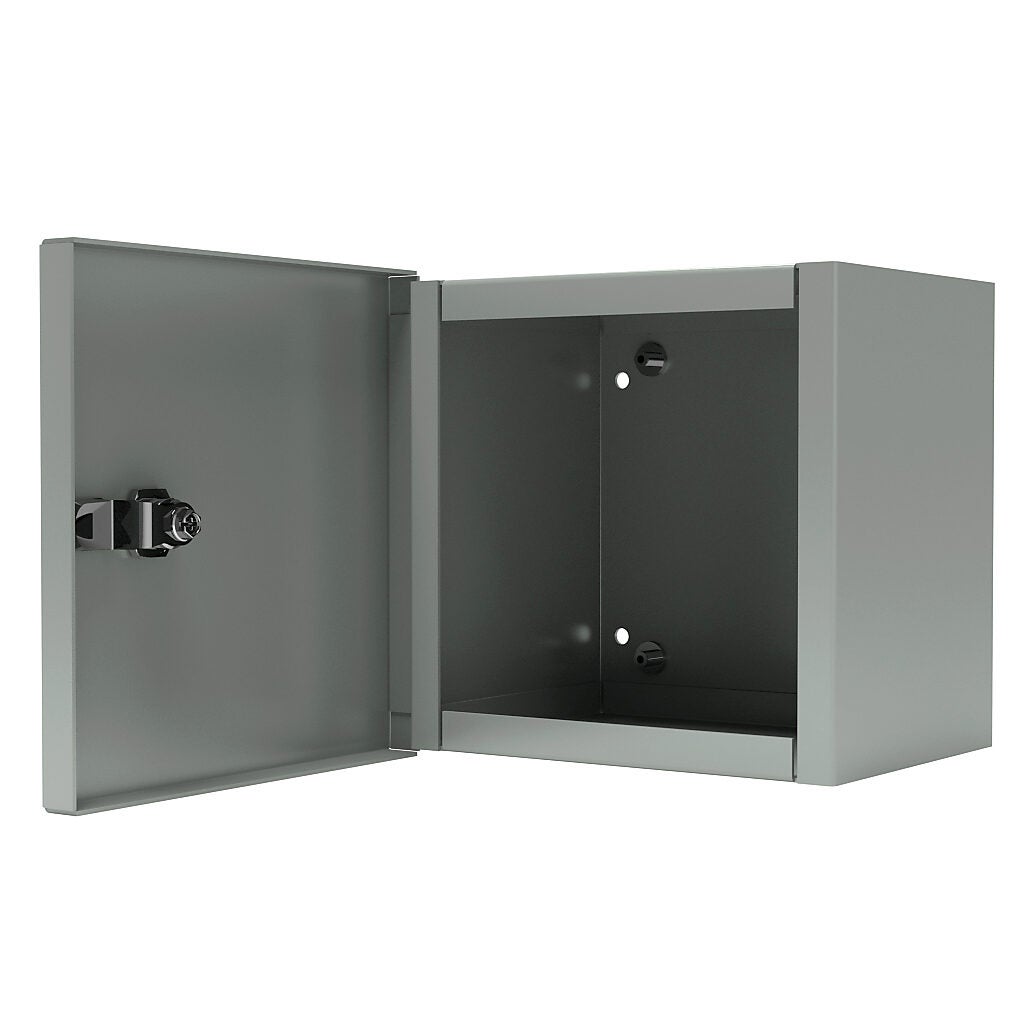

• Continuous hinged cover with flush-mount 1/4-turn latch, usable opening depth 5.88 in; mounting holes on back and weldnuts for optional back panels.
• NEMA 1 rated for general-purpose indoor use; listed to UL and CSA (cULus) standards; designed for control and instrument enclosures.

Product Highlights

NEMA 1, 14 ga carbon steel hinged enclosure; 8 x 8 x 6 in; flush 1/4-turn latch; UL and CSA listed.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: N1C080806
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: N1C080806
• Model: N1C080806
• Series: N1C
• Type: Electrical enclosure (hinged-cover)
• Material: Carbon steel
• Metal Gauge: 14 gauge
• Finish: ANSI 61 powder coat (textured)
• Cover Type: Hinged cover (continuous hinge)
• Latch Type: Flush-mount 1/4-turn latch
• Mounting Type: Wall-mount; mounting holes on back
• Back Panel Mounting: Weldnuts provided for optional back panels
• Grounding Provisions: Yes
• NEMA Rating: 1
• Certifications: UL Listed; CSA; cULus
• Dimensions (Height x Width x Depth): 8 in x 8 in x 6 in
• Usable Opening Depth: 5.88 in
• Weight: 8.9 lb
• Construction: Seam and spot welded
• Knockouts: No
• Interior Panel Reference: 6C754
• Application: General-purpose indoor electrical and control equipment (not oil- or dust-tight)
• Country of Origin: United States
