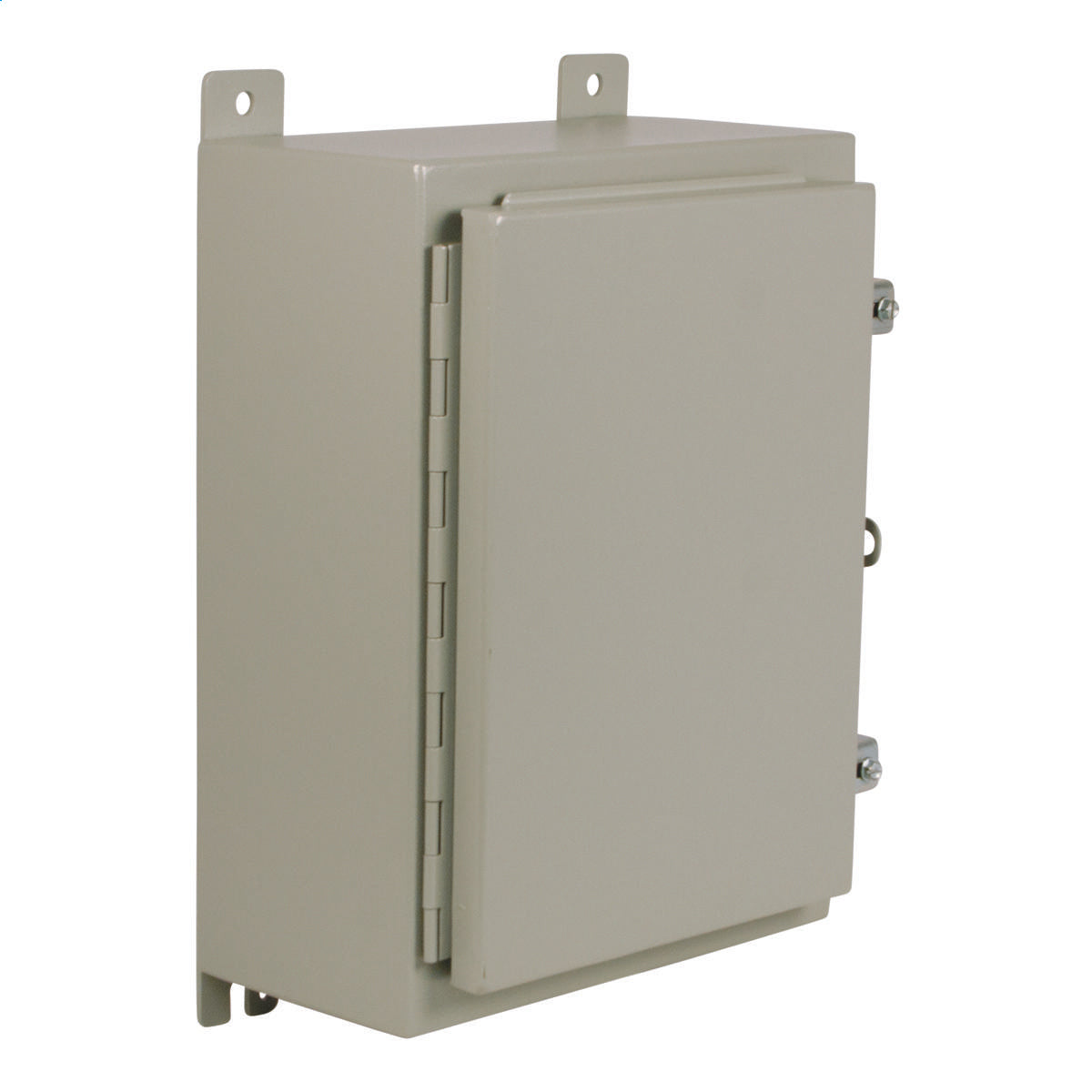

Wiegmann N12242408 Enclosure 24in 8in NEMA 12/13 CS PL Wall

Product Description

The WIEGMANN N12242408 enclosure is designed to house electrical and electronic controls, instruments, components, and wiring. This 1-door enclosure is constructed of 14 ga carbon steel with continuously plasma welded seams and a polyester powder coated gray finish. It is designed for indoor use, protecting components from dust, dirt, oil, and water.

• Features external mounting feet for easy installation.
• Equipped with a hasp and staple for padlocking.
• Sealed with a poured in place polyurethane gasket.

Product Highlights

This WIEGMANN enclosure features a hinged door for convenient access and is ideal for protecting sensitive components in various indoor environments.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: N12242408
• Country of Origin: United States

Technical Specifications

• Lock: Padlock
• Type: 1-Door
• Color: Gray
• Depth: 8 in
• Width: 24 in
• Finish: Polyester Powder Coated
• Height: 24 in
• Series: N12
• Capacity: 4608 cu-in
• Cover Type: Continuous Hinged
• Panel Size: 21 in W x 21 in H
• NEMA Rating: NEMA 12/13
• Manufacturer: Hubbell
• Mounting Type: Wall
• Material: 14 gauge carbon steel
• Standard: UL, CSA
• Construction: Continuously welded seams
• Gasket: Seamless Polyurethane Poured in Place
• Metal Gauge: 14 ga
• Closure Method: Padlockable Hasp
• Usable Opening Depth: 7.88 in
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 24 in
• Enclosure Cover Features: Hasp and Staple for Padlocking
• Item - Electrical Enclosure: Enclosure
• Application: Intended for use in housing electrical and electronic controls, instruments, components and associated wiring. These enclosures incorporate hinged doors which provide convenient access. Designed for indoor use in protecting components from dust, dirt, oil and water.
• Catalog Number: N12242408
• Finish Type: Smooth
• Latches Type: Clamps
• Listings: UL, CSA
• Material Type: Carbon Steel
• Number of Doors (Fixed): 1
• Certified Listed: cULus
• UL Listed: Yes
• Mounting: Wall
