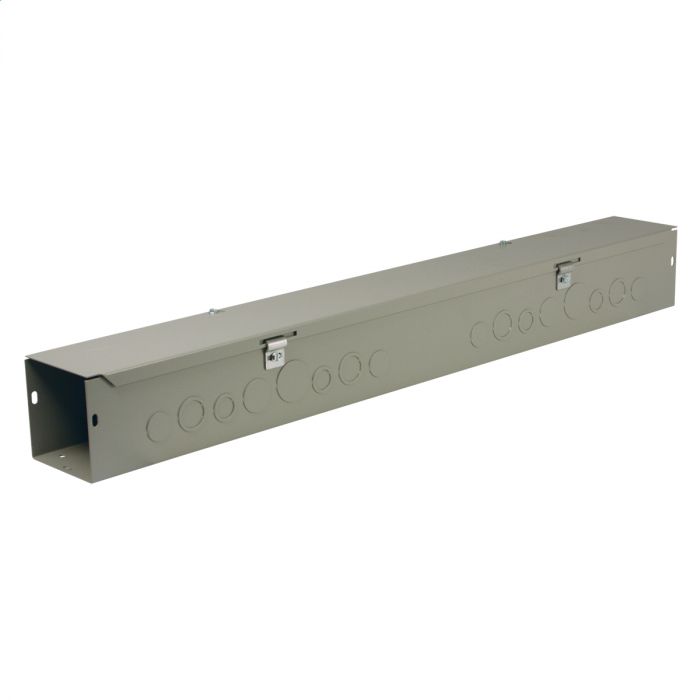

Wiegmann HS442 Wireway 24in 4in 4in Hinged/Scr Cs Gra

Product Description

The WIEGMANN HS442 wireway is designed to protect electrical wiring in environments where dirt, dust, oil, and water are not significant concerns. This straight section combination wireway features a hinged screw cover for easy access. It measures 24 inches in length, 4 inches in width, and 4 inches in height and is constructed from 16 gauge steel.

• HS Series combination hinge/screw cover design offers easy access to open top for lay-in of wireway
• Screws do not need to be removed to open top
• Straight sections with knockouts are provided on side walls on wireways

Product Highlights

Protects electrical wiring with easy access and knockouts for versatile installation.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: HS442
• Country of Origin: United States

Technical Specifications

• Type: Straight Section Combination
• Color: Gray
• Width: 4 in
• Finish: Polyester Powder Coated
• Height: 4 in
• Length: 24 in
• Series: HS Series
• Cover Type: Hinged Screw
• NEMA Rating: NEMA 1
• With Knockouts: Yes
• Material: Carbon Steel
• Standards: CSA Certified, UL Listed
• Cover Locking Style: Screw
• NEMA Enclosure Rating: 1
• Gauge: 16 ga
• Application: Designed to protect electrical wiring in applications where dirt, dust, oil, and water are not serious problems. All sections are open on one side so wires and cable can be laid in along an entire wireway run.
• Catalog Number: HS442
• EU RoHS Indicator: Yes
• Finish Type: Polyester Powder
• Listings: UL, CSA
• Depth: 24 in
• Certified Listed: cULus
• Brand: Wiegmann
• Standard: UL, CSA
• Product Series: HS
• Family Series: Wiegmann Wireway, HS Series
• Description: N1 Hinged Wireway 4X4X24 Carbon Steel - Gray
• Latching Mechanism: Hinge Cover
• Style: Straight Section
• Nominal Length: 24 "
• Nominal Height: 4 "
• Nominal Width: 4 "
