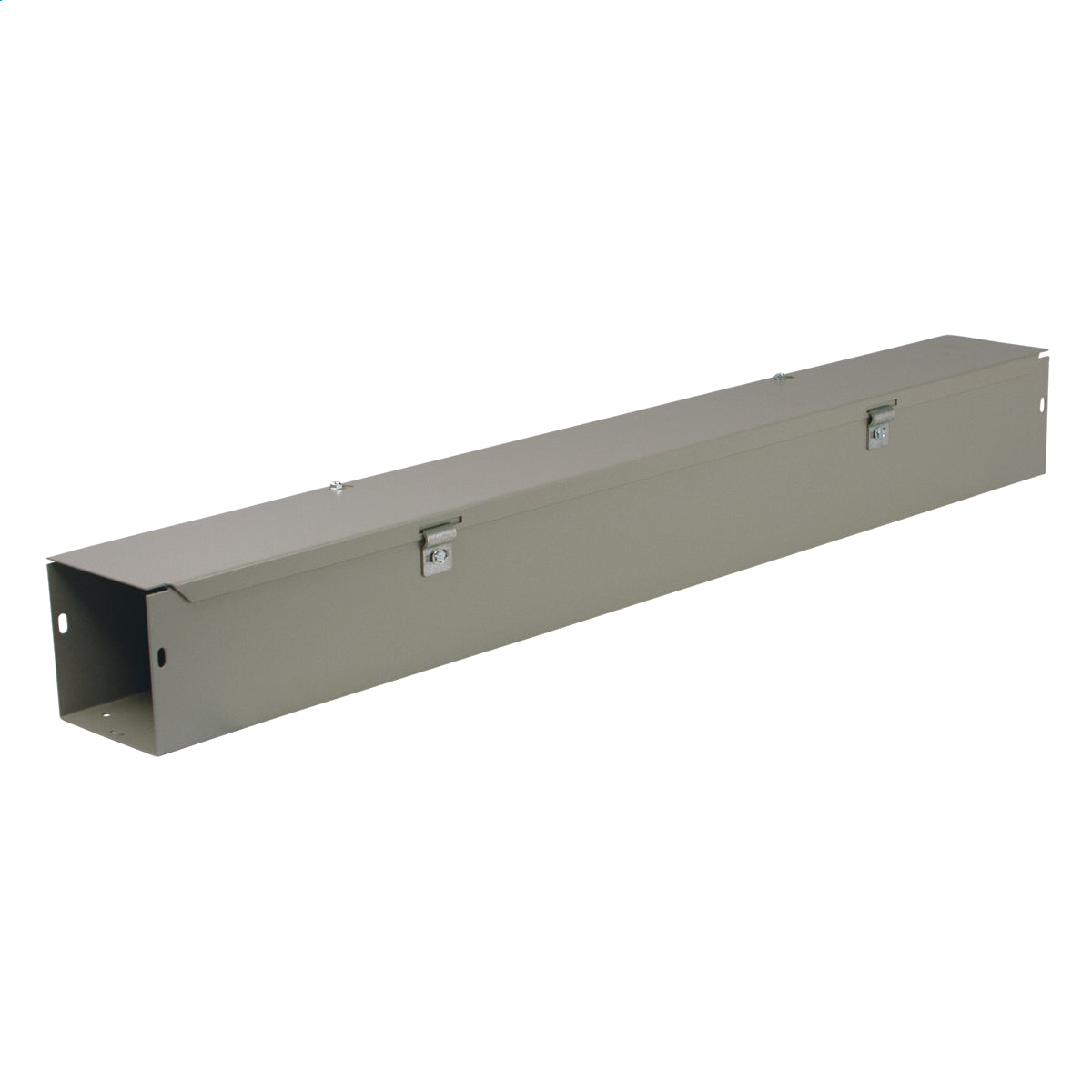

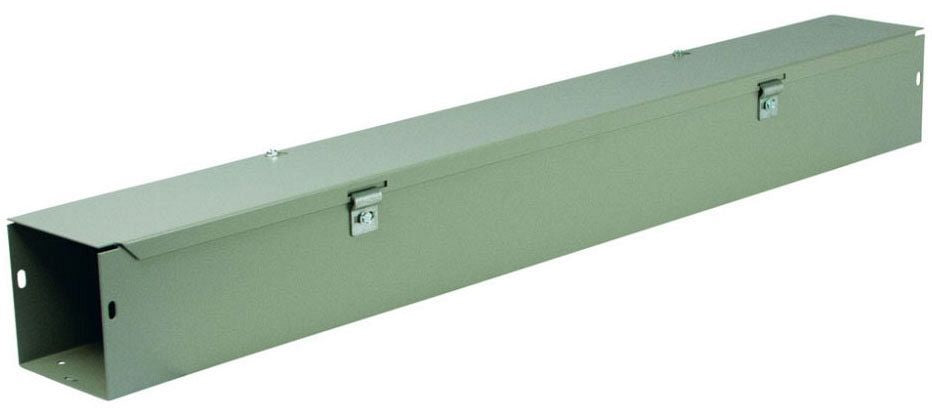

Wiegmann HS12122NK Lay-In Wireway (24 in x 12 in x 12 in)

Product Description

Wiegmann HS12122NK is a NEMA 1 lay-in wireway straight section designed for lay-in wiring runs. The HS12122NK is fabricated from 14 gauge carbon steel with an ANSI 61 gray polyester powder coat over a phosphatized surface and features an HS series combination hinged/screw cover that provides top access without removing screws. The section has no knockouts, measures 24 in x 12 in x 12 in, and is CSA listed. It is intended for indoor protection of electrical wiring where dirt, dust, oil, and water are not serious concerns.

• HS series combination hinged/screw cover allows top access for lay-in wiring without removing screws
• Fabricated from 14 gauge carbon steel with ANSI 61 polyester powder coat over phosphatized surface
• NEMA 1 enclosure, no knockouts; dimensions 24 in x 12 in x 12 in; CSA listed

Product Highlights

NEMA 1 lay-in wireway with hinged combination cover and no knockouts

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: HS12122NK
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• MPN: HS12122NK
• Product Type: Lay-In Wireway / Straight Section
• Series: HS Series
• Dimensions (L x W x H): 24 in x 12 in x 12 in
• Length: 24 in
• Width: 12 in
• Height: 12 in
• Material: Carbon steel (14 gauge)
• Body/Cover Gauge: 14 gauge steel
• Finish: ANSI 61 gray polyester powder coat over phosphatized surface
• Cover Type: Combination hinged/screw cover
• Knockouts: No
• Enclosure Rating: NEMA 1
• Certifications: CSA; UL 870 (file E32576); EEMAC 1; EU RoHS indicator; Buy America(n) Qualified
• Weight: 27 lb
• UPC: 786725611409
• Country of Origin: United States
• Application: Protect electrical wiring where dirt, dust, oil, and water are not serious problems; open-on-one-side sections for lay-in wiring
