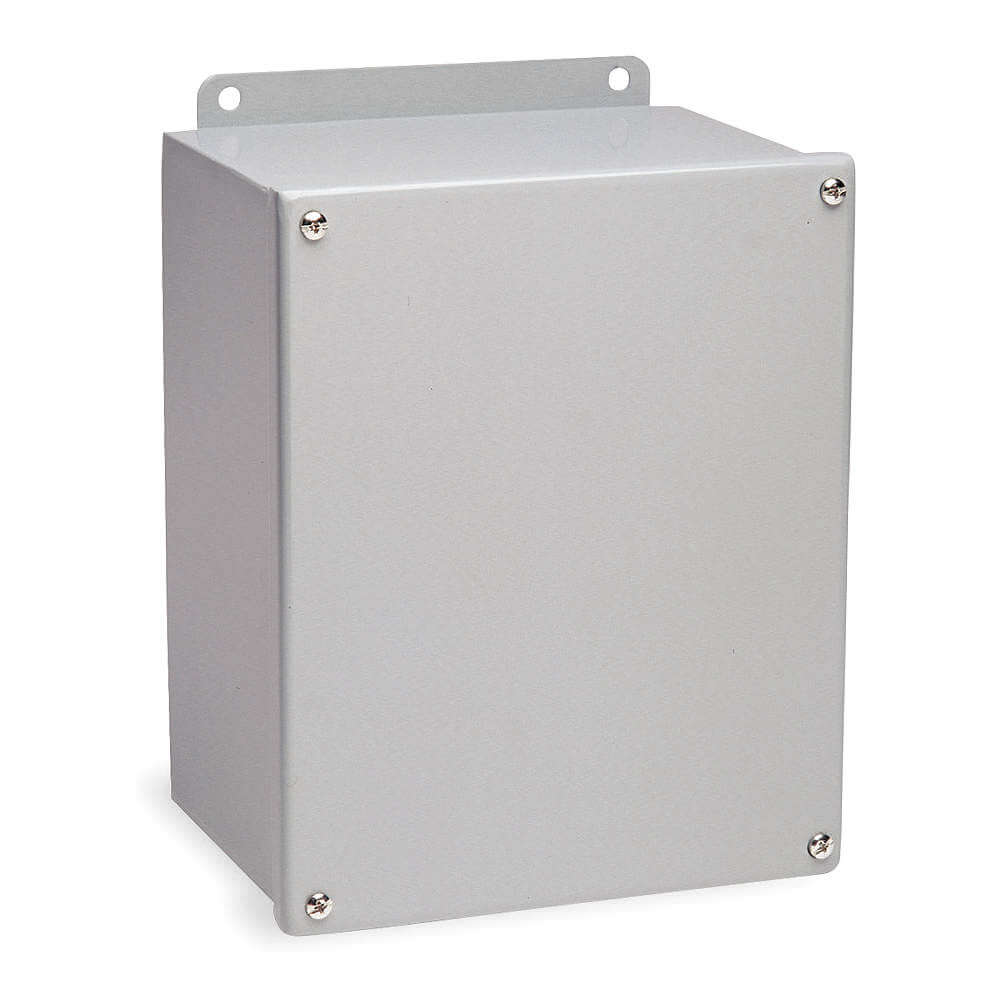

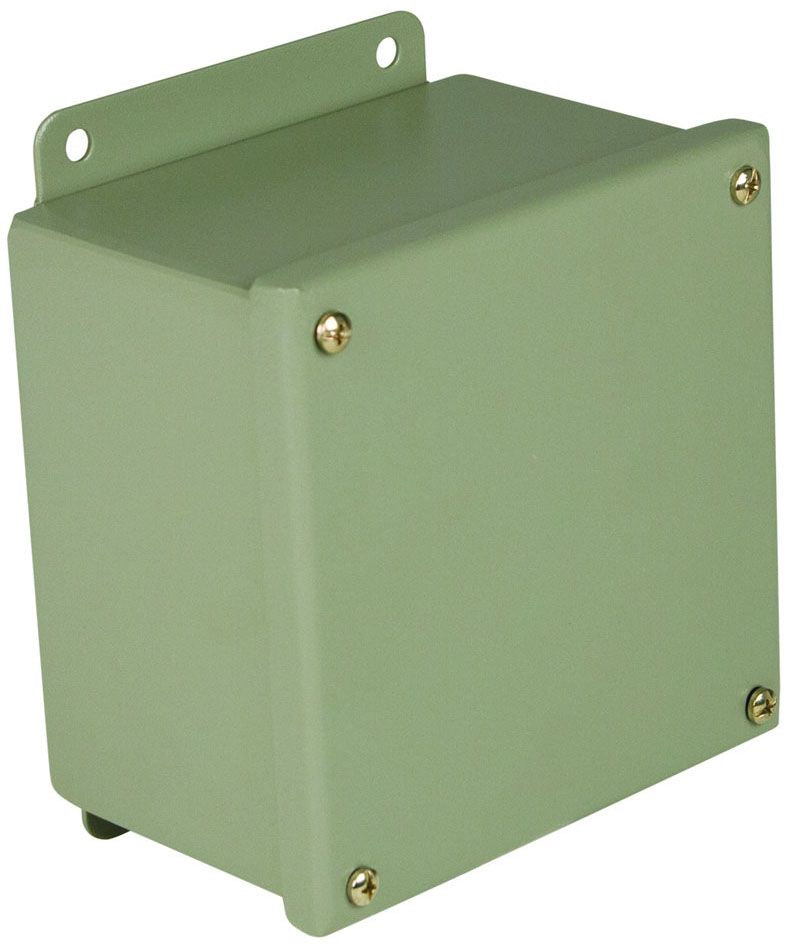

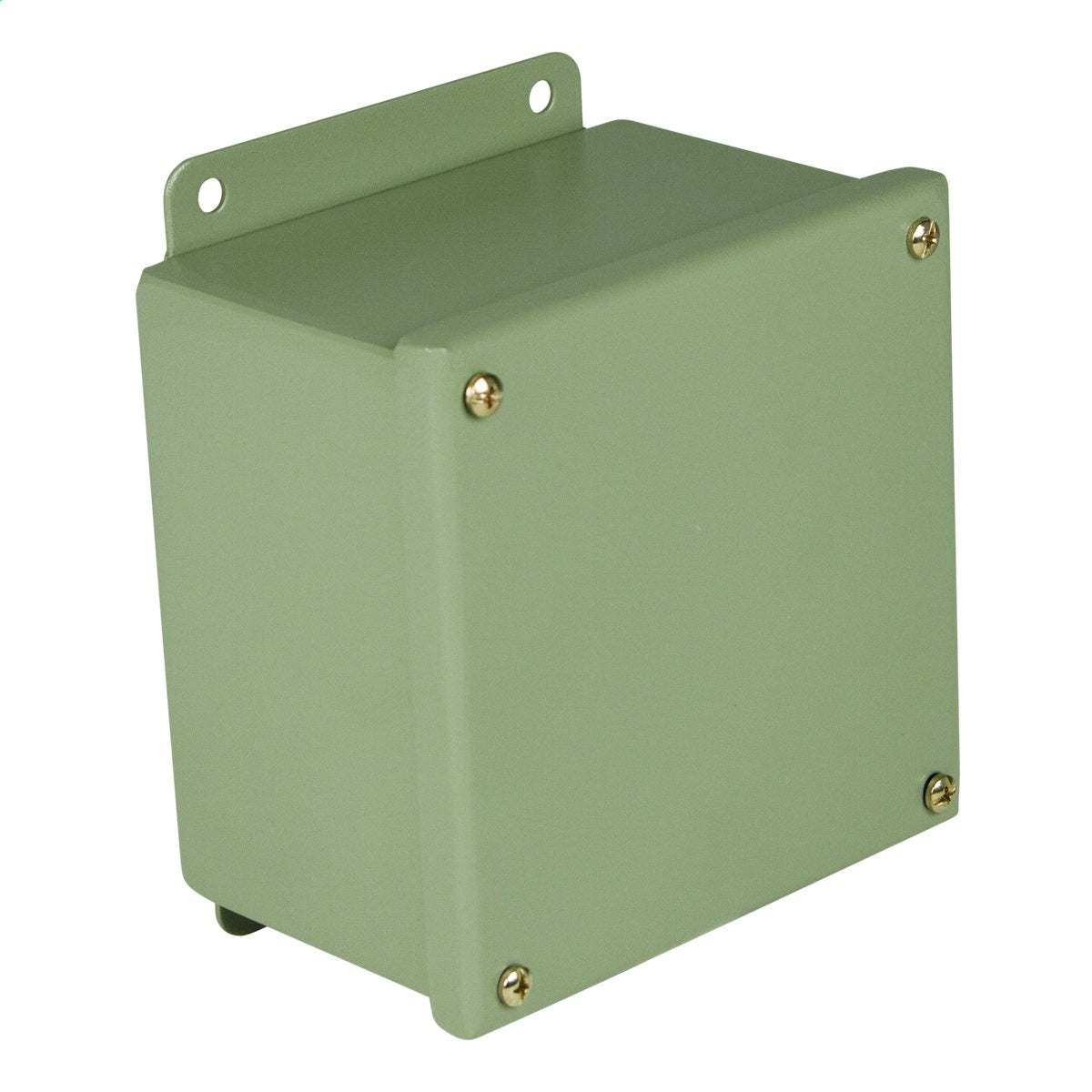

Wiegmann B161406SC Nema 12/13 16 x 14 x 6 in Wall mount enclosure

Product Description

Wiegmann B161406SC is a Nema 12/13 wall-mount carbon steel enclosure sized 16 in H x 14 in W x 6 in D. The unit is fabricated from 14 gauge steel with an ANSI 61 polyester powder finish and a screw-on solid cover secured by captivated cover screws. A seamless polyurethane poured-in-place gasket seals the lid; usable opening depth is 5.88 in and internal capacity is 1344 cu.in. The enclosure is cULus listed and provides grounding provisions.

• Nema 12/13 rated wall-mount enclosure fabricated from 14 gauge carbon steel with ANSI 61 polyester powder finish
• Screw-on solid cover with captivated cover screws and seamless poured-in-place polyurethane gasket for sealed lid
• Usable opening depth 5.88 in, internal capacity 1344 cu.in, includes external mounting plates and grounding provisions

Product Highlights

16 x 14 x 6 in 14 ga carbon steel Nema 12/13 wall-mount enclosure with screw-on cover, captivated screws, seamless polyurethane gasket, 1344 cu.in capacity, cULus listed

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: B161406SC
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: B161406SC
• Model/Series: B-SC
• Type: Nema 12/13 wall-mount enclosure
• Material: Carbon steel
• Metal Gauge: 14 ga
• Finish: ANSI 61 polyester powder
• Height: 16 in
• Width: 14 in
• Depth: 6 in
• Usable Opening Depth: 5.88 in
• Capacity: 1344 cu.in
• Cover Type: Screw-on solid cover
• Cover Features: Captivated cover screws
• Closure Method: Screws
• Gasket: Seamless polyurethane poured in place
• Mounting Type: Wall mount (external mounting plates)
• Interior Panel: 3A930
• Standards/Certifications: cULus
• Weight: 20 lb
• Knockouts: No
• Country of Origin: United States
