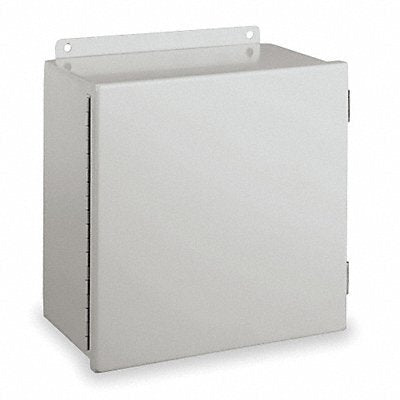

Wiegmann B121206CH NEMA 12, 13 Wall Mount Enclosure 12 in H x 12 in W x 6 in D

Product Description

The WIEGMANN B121206CH is a NEMA 12, 13 rated wall mount enclosure. Constructed of carbon steel with a hinged cover and screwdown clamps, it provides protection from dust, dirt, oil, and water. Designed for housing electrical and electronic controls, instruments, and components.

• Features external mounting plates for easy installation.
• Sealed with a seamless polyurethane poured in place gasket.
• Constructed with continuously welded seams.

Product Highlights

This carbon steel enclosure is ideal for electrical junction boxes, terminal wiring boxes, and instrument housings, offering a secure and accessible housing solution.

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: B121206CH
• Country of Origin: United States

Technical Specifications

• Depth: 6 in
• Width: 12 in
• Finish: Polyester Powder Coated
• Gasket: Seamless Polyurethane Poured in Place
• Height: 12 in
• Series: B-CH
• Features: External Mounting Plates
• Material: Carbon Steel
• Mounting: Wall
• Knockouts: No
• Standards: cULus
• Cover Type: Hinged Cover
• Metal Gauge: 14/16 ga
• NEMA Rating: 12, 13
• Product Type: Enclosure
• Mounting Type: External Mounting Plates
• Basic Material: Metallic
• Closure Method: Screwdown Clamps
• Solid / Clear Cover: Solid
• Enclosure Cover Type: Hinged
• Usable Opening Depth: 5.88 in
• Enclosure NEMA Rating: 12, 13
• Material of Enclosure: Carbon Steel
• Metallic / Non-Metallic: Metallic
• Nominal Enclosure Width: 12 in
• Enclosure Cover Features: Screwdown Clamps
• Knockouts / No Knockouts: No Knockouts
• Country of Origin (subject to change): United States
• Application: Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water.
• Catalog Number: B121206CH
• Finish Type: Textured
• Latches Type: Clamps
• Listings: UL, CSA
• Material Type: Carbon Steel
• Weight: 15 lb
• Certified Listed: cULus
• UL Listed: Yes
• Panel Size: 10.88 in H x 10.88 in W
• Capacity: 864 cu-in
• Item: Enclosure
• Model: B121206CH
